Expanding Foam Sealant (Kit) - Fast Cure - Cream / FROTH-PAK
Estimated Availability Date:
Call for Availability : 778-330-2602
Products supplied by vendors that we trust.
No customer reviews for the moment.

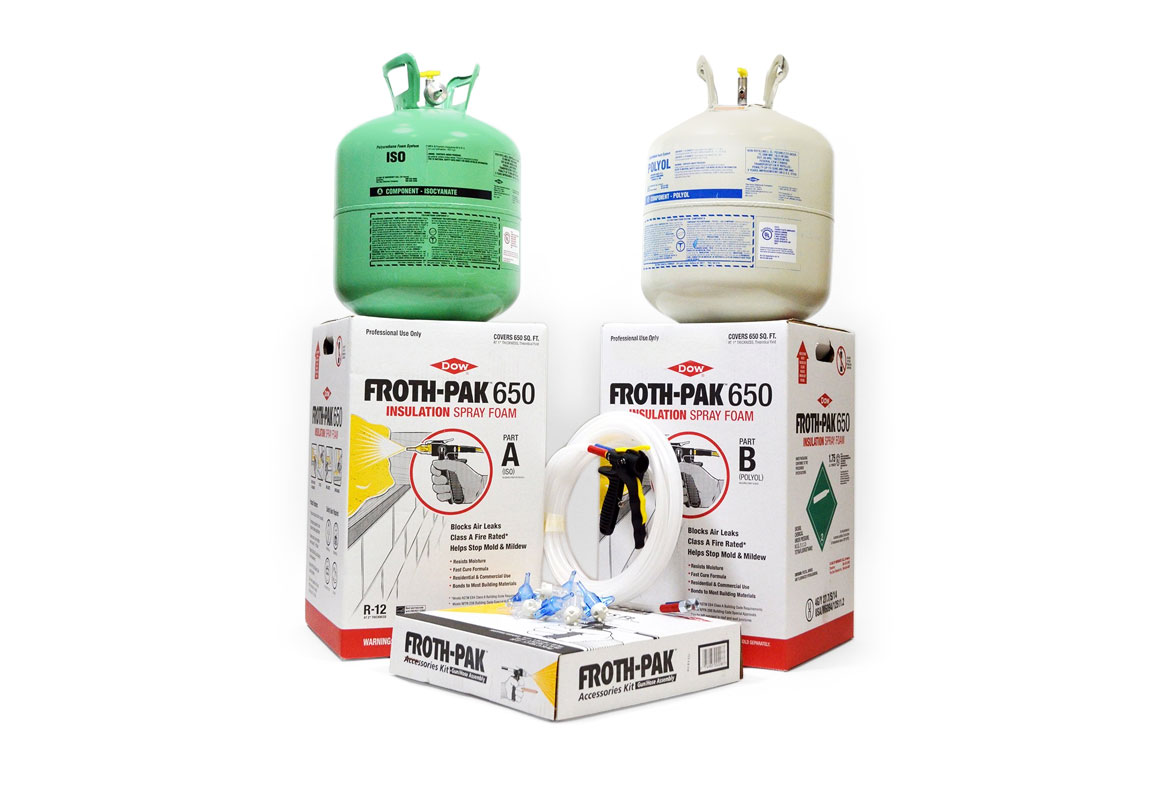

The Dow Froth-Pak Foam Sealant Kit is built to quickly fill cavities, penetrations, and cracks to stop air leaks in commercial, industrial, and residential applications.
PLEASE NOTE: In Alberta, Froth Pak Expanding Foam can not be left exposed in a mechanical room, it must have a fire retardant covering. It can be left exposed in all other open areas in the basement. All Mechanical room joist cavity ends must be fireproofed.
Build
This low-pressure spray foam system is excellent for use in interior and exterior commercial applications, residential, agriculture, industrial, and institutional applications.
The cured foam helps dampen noise, insulate, resist moisture, adds structural support, provide an air seal, and fill voids and crevices.
Once cured this foam can be easily shaped and trimmed with a knife to suit the application.
Expands 3-5x the dispensed volume!
Cure Times
| Skin Time | 30-40 Seconds |
| Full Cure | 5 Minutes |
Technical Data
| Flame Spread/Smoke Developed | @ 4" Wide x 2" Thick | ≤25 / ≤450 |
| Nominal Density | lb./ft³ | 1.75 |
| Thermal Resistance | Initial ft² x h x °F/Btu, R-Value, Min | 6.6 |
| Thermal Resistance | Aged LTTR Measured @ 2" Thick10.6 | 10.6 |
| Water Vapor Performance | @1" Thick | 3.13 |
| Water Absorption | % by Volume | 5.44 |
| Air Permeability | 1" Thick, l/min @75 Pa | 0 |
| Dimensional Stability | 158°F / 100% RH @ 1 Week, % of Volume Change | 0.70 |
| Dimensional Stability | -40°F / 100% RH @ 1 Week, % of Volume Change | 0.02 |
| Compressive Strength | lb/in², parallel | 23.4 |
| Flexural Strength | lb/in², parallel | 22.7 |
| Tensile Strength | lb/in², parallel | 36 |
| Shear Strength | lb/in², parallel | 12.7 |
| Maximum Service Temperature | °F | 240 |
Safety
Do not expose to flame, sparks, or temperatures higher than 116°C as this product is combustible. Contents are under pressure!
Wear a respirator equipped with an organic vapor sorbent and a P100 particulate filter or a positive-pressure, air-supplying respirator depending on environmental conditions.
Vapors can irritate the eyes, skin, and respiratory system. Wear gloves, goggles, and protective clothing.
Certifications, Standards, and Regulations
- ASTM C518
- ASTM C273
- ASTM D1621
- ASTM D1622
- ASTM D1623
- ASTM D2126
- ASTM D2842
- ASTM E96
- ASTM C203
- CCMC 13447-L
- UL R13655

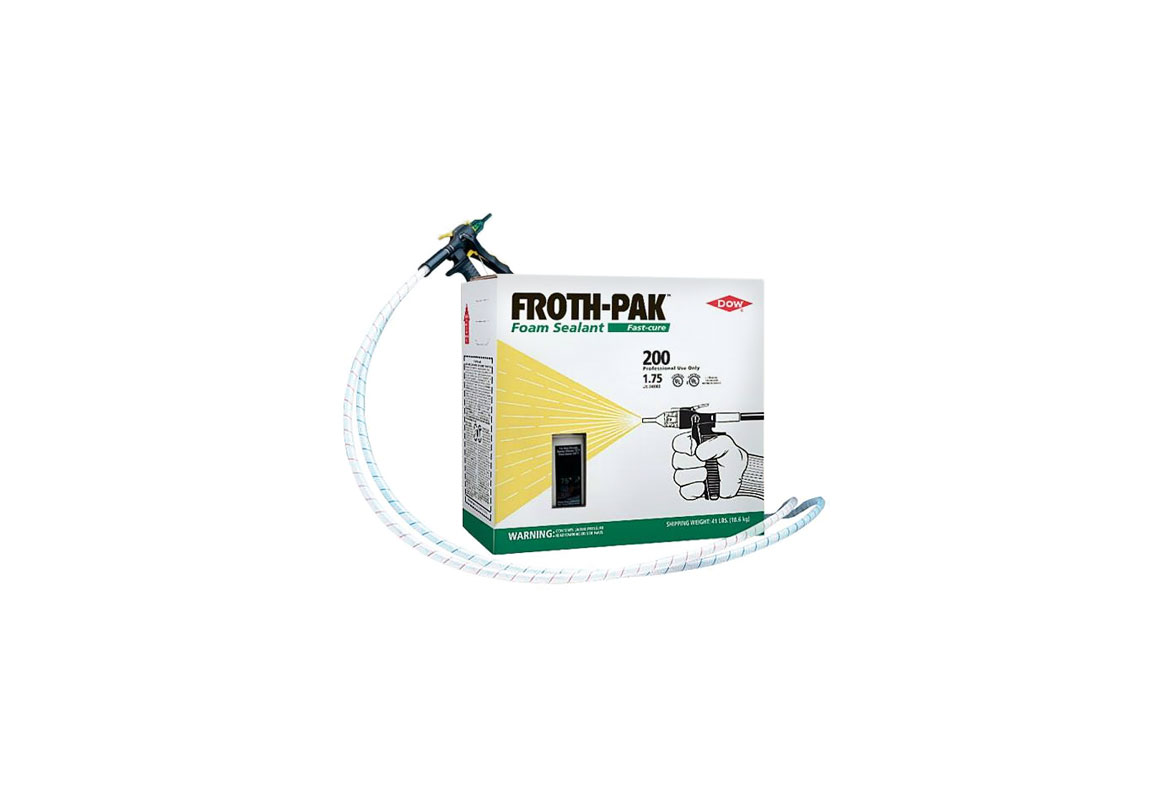

The following is included with the 200 Board Feet Yield Kit (DOWFROTHPAK200):
- (1) Applicator Gun
- (2) 9 Foot Hoses
- (2) Cylinders
- (4) Fan Tips
- (6) Cone Tips
The following is included with the 620 Board Feet Yield Kit (DOWFROTHPAK620):
- (1) Applicator Gun
- (2) 15 Foot Hoses
- (2) Cylinders
- (6) Fan Tips
- (8) Cone Tips
- Expanding Foam Adhesives: Adhesives that expand when expelled and harden when exposed to air. They can be used to insulate, seal gaps and cracks, or adhere surfaces together.
| Vendor Part #: | FROTHPAK200 |
| Full Cure Time: | 5 Minutes |
| Environment Use: | Indoors and Outdoors |
| Material: | Polyurethane Foam |
| Skin Time: | [30-40 seconds] |
| Cure Type: | Chemically |
| Dry Color: | Light Beige |
| Expansion: | 3-5x |
- √Filling Gaps in Roof and Wall Junctions
- √Wall and Attic Penetrations
- √Electrical, Mechanical, and Plumbing Penetrations
- √Filling Gaps, Cracks or Crevices in Buildings and Other Structures
- √Filling in Rim Joists
- √Insulating Crawl Spaces and Basements
