Jet Equipment & Tools 1 Ton 10' Lift KCH Series Chain Hoist - Heavy Duty - *JET

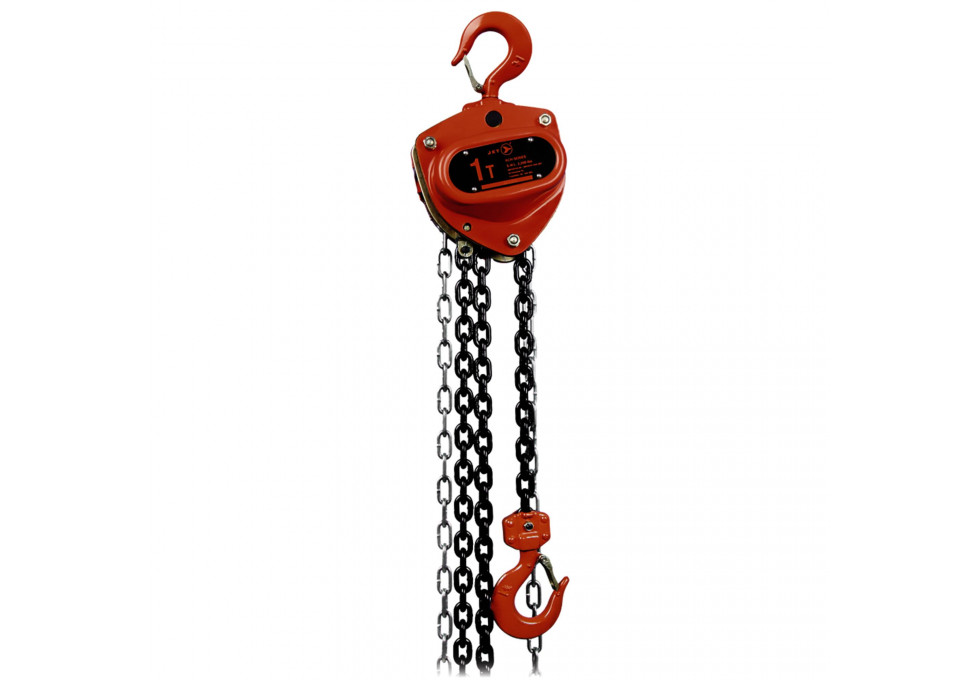

1 Ton 10' Lift KCH Series Chain Hoist - Heavy Duty
1 Ton 10' Lift KCH Series Chain Hoist - Heavy Duty - *JET
1 Ton 10' Lift KCH Series Chain Hoist - Heavy Duty
Product #: JET101112
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
$295.30 /EA
Login for contractor price
Regular: $295.30 /
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
Jet Equipment & Tools is part of SureWerx™ Group supplying only professional grade tools, equipment and safety gear since 1957, earning the trust of Canadian workers. No customer reviews for the moment.
Product Description
The Jet Equipment 1 Ton 10' Lift KCH Series Chain Hoist - Heavy Duty - *JET. 1 Ton 10' Lift KCH Series Chain Hoist - Heavy Duty
Build
- Professional grade triple spur gear is lightweight and portable
- Dual pawl Weston style brake with heavy-duty springs provides safe and reliable operation
- Made with premium grade non-asbestos brake discs for long service life
- Maintenance free sealed bearings provide easy operation
- Load tested to 150% of rated capacity and includes certificate
Approximate Item/Package Dimensions in inches
- Width: 8.03
- Height: 10.20
- Depth: 9.69
Approximate Item/Package Weight in pounds
- Weight: 28.7215
Product Specifications

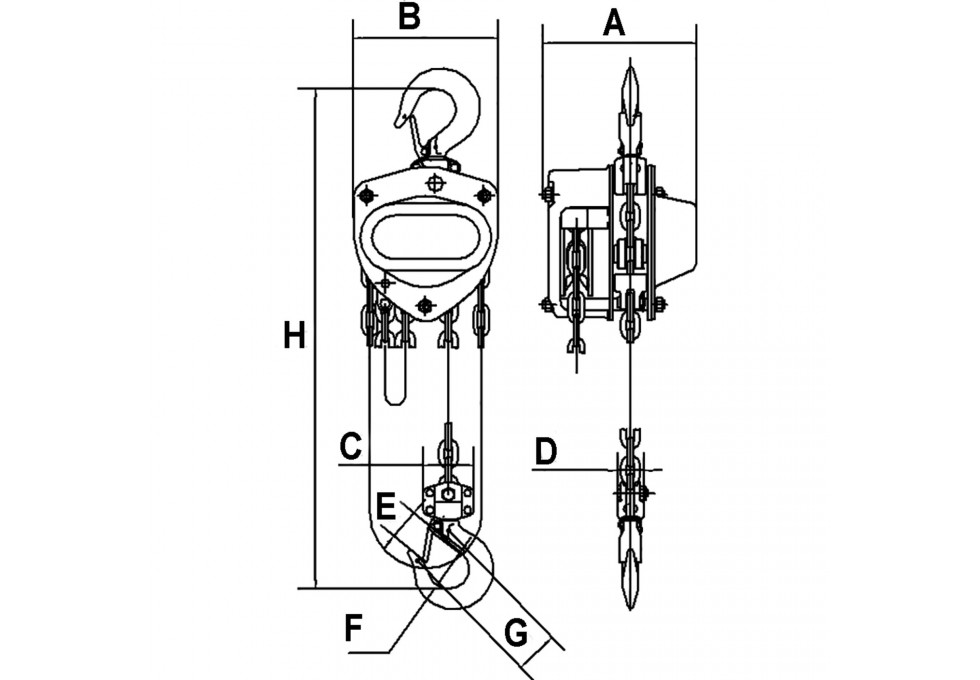

| Vendor Part #: | 101112 |
| A: | 6-5/16" |
| B: | 6-5/16" |
| C: | 2" |
| D: | 1-1/8" |
| E: | 33 mm |
| F: | 40 mm |
| G: | 45 mm |
| H: | 11-5/8" |
| Head Room: | 11-5/8" |
| Load Chain Diameter: | 6.3 mm |
| Number of Falls: | 1 |
| Certification: | ASME B30.16 standards|ISO 9001-2000 certified factory |
| Sku Product Number: | 101112 |
| Capacity (T): | 1 T |
| Duty Level: | Heavy Duty |
| Special Features: | Non-asbestos brake discs |
| Capacity (lb.): | 2,200 lb |
| Force Required to Lift: | 64 lb |
| Length of Hand Chain Pulled to Lift Load to 1': | 43' |
| Lift (ft.): | 10' |
| Load Chain Grade: | 100 |
