Greenlee AC/DC True RMS Clamp Meter, 600V, 600A
Hand Tools - METER CLAMP CM-960 - *SEE COMMENTS - *TEST LEADS TSG-3
AC/DC True RMS Clamp Meter, 600V, 600A
Hand Tools - METER CLAMP CM-960 - *SEE COMMENTS - *TEST LEADS TSG-3
Product #: GRE02192
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
$0.35 /EA
Login for contractor price
Regular: $282.50 /
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
Greenlee - a Textron Company, provides high quality tools for installing wire and cable.
No customer reviews for the moment.
Product Description

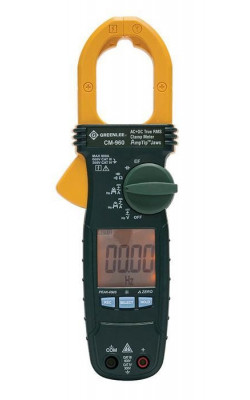

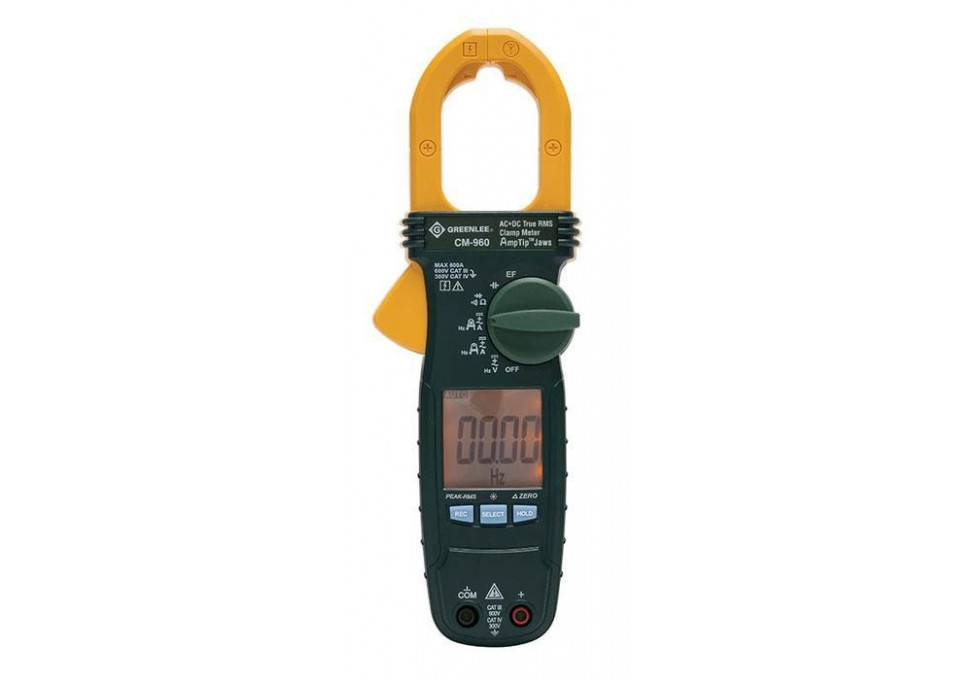

The Greenlee AC/DC True RMS Clamp Meter, 600V, 600A. CLAMPMETER, AC/DC (CM-960)
Build
- Measures AC+DC current
- AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance and frequency
- Tests continuity and diodes
- Peak-RMS measures motor inrush current
- Backlight & relative mode for added versatility
- AmpTip™ increases accuracy on small wires and low current
Approximate Item/Package Dimensions in inches
- Width: 5.500
- Height: 2.700
- Length: 11.950
Approximate Item/Package Weight in pounds
- Weight: 1.335
Product Specifications
| Vendor Part #: | CM-960 |
| Spec 1: | Amperage Measurement : 60, 600 Amps AC+DC |
| Spec 2: | Display : LCD, 6000 Count |
| Spec 3: | Frequency Rating : Voltage and AmpTip™ current: 50/60 Hz. High current: 50 to400 Hz |
| Spec 4: | Includes : (2) 1.5V AAA batteries, test leads, carrying case |
| Spec 5: | Jaw Opening : 1.18'' (30 mm) |
| Spec 6: | Measurement Category : CAT III 600V, CAT IV 300V |
| Spec 7: | Replacement Part : TSG-3 test leads, TC-10 carrying case |
| Spec 8: | Resistance Measurement : 600, 6k, 60k Ohms |
| Spec 9: | Standard : CAT III, C/US UL Listed, CE |
| Spec 10: | True Power : AC+DC True RMS |
| Spec 11: | Voltage Measurement : 600 Volts AC+DC |
