ERICO Spring Nuts - Steel / Electrogalvanized
Strut Nuts with Springs - Steel - Electrogalvanized - Static Load Safety Factor of 3:1 - For creating metal frames with strut channels
Spring Nuts - Steel / Electrogalvanized
Strut Nuts with Springs - Steel - Electrogalvanized - Static Load Safety Factor of 3:1 - For creating metal frames with strut channels
Product #: CADSPRA0037EG
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: Rod Size: 3/8"
Info:
$63.50 /EA
Login for contractor price
Regular: $63.50 /
CADSPRA0025EG 1/4" , InStock
$59.00 /100PC
CADSPRA0037EG 3/8" , InStock
$63.50 /100PC
CADSPRA0050EG 1/2" , InStock
$75.00 /100PC
Rod Size
PROD #
Price
1/4"
CADSPRA0025EG
$59.00 /100PC
3/8"
CADSPRA0037EG
$63.50 /100PC
1/2"
CADSPRA0050EG
$75.00 /100PC
Available Online: 19482
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
CADSPRA0025EG 1/4"
$59.00 /100PC
CADSPRA0037EG 3/8"
$63.50 /100PC
CADSPRA0050EG 1/2"
$75.00 /100PC
Rod Size
PROD #
Price
1/4"
CADSPRA0025EG
$59.00 /100PC
3/8"
CADSPRA0037EG
$63.50 /100PC
1/2"
CADSPRA0050EG
$75.00 /100PC
Product Description

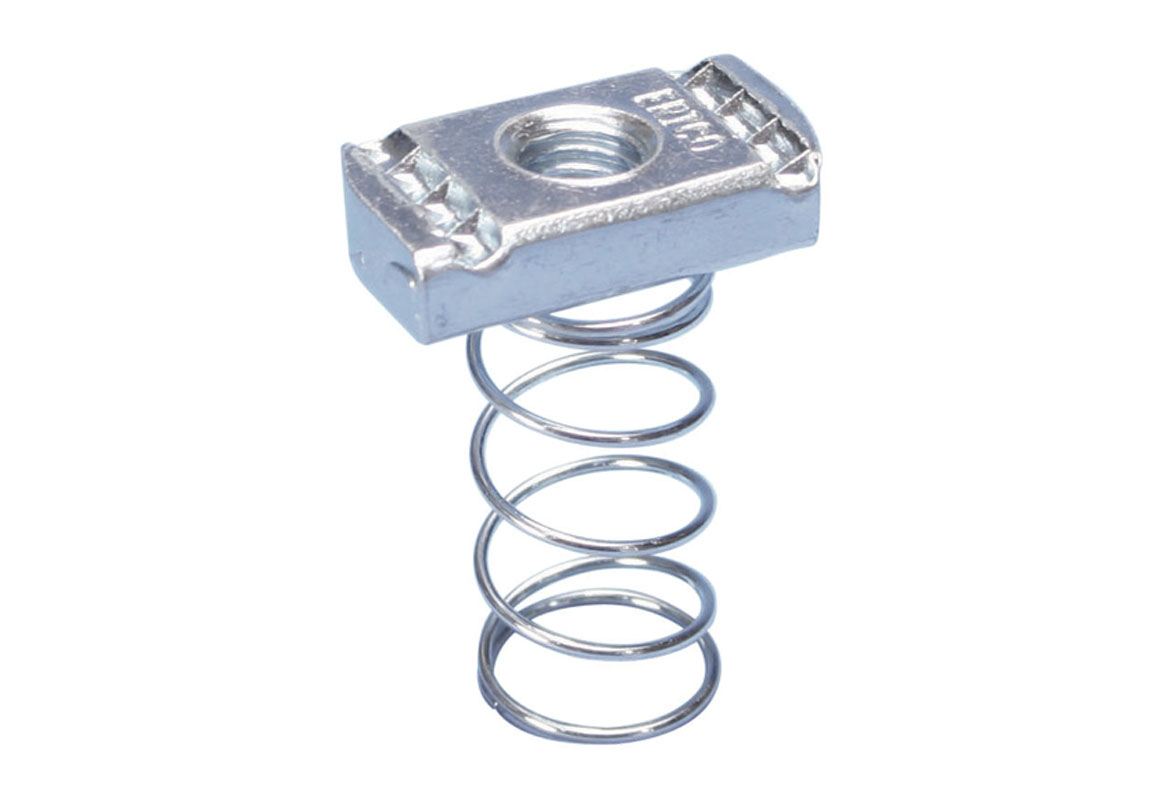

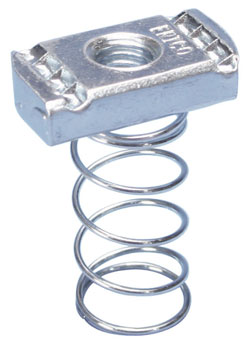

The Erico Strut Nut with Spring (Spring Nuts) is built to help create metal frames using strut channels.
Build
These strut nuts, also known as spring nuts, are made from steel and are electrogalvanized to provide long life and protection against corrosion.
Each nut has a static load safety factor of 3:1.
Built-in spring allows for easy installation.
Corrosion resistant!
Capacities
| Rod Size | Thickness | Torque |
| 1/4” | 1/4” | 6 ft. lbs. |
| 3/8” | 3/8” | 19 ft. lbs. |
| 1/2” | 1/2” | 50 ft. lbs. |
Pull-Out Strength
| Size | 12 GA Channel Thickness | 14 GA Channel Thickness |
| 1/4" | 450 lbs. | 450 lbs. |
| 3/8" | 1,100 lbs. | 1,000 lbs. |
| 1/2" | 2,000 lbs. | 1,400 lbs. |
- Spring Nut: Self-locking nuts that come with an attached spring. These nuts fit into a channel and prevent screws from loosening due to vibrations.
Product Specifications
| Vendor Part #: | SPRA0025EG |
| Coating: | Electrogalvanized |
| Color: | Silver |
| Material: | Steel |
| Static Load: | 3:1 |
- √Creating Metal Frames
