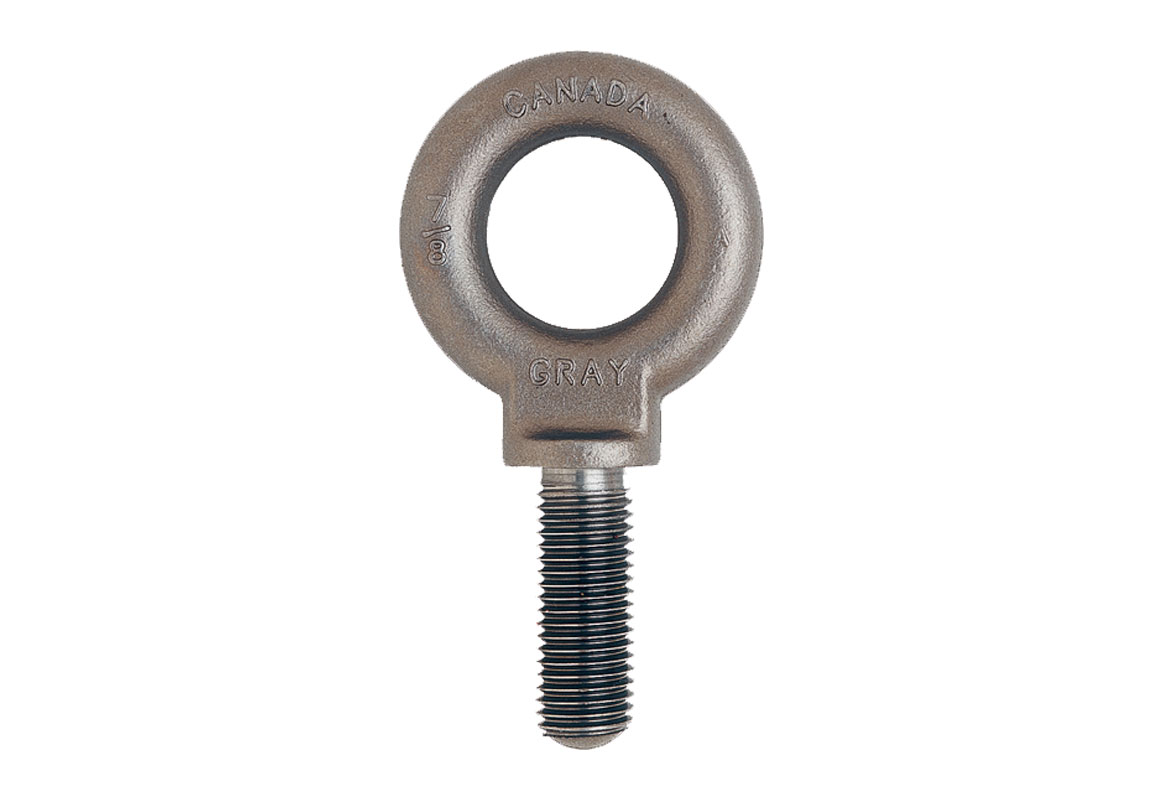

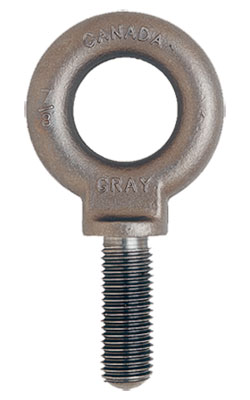

Gray Tools inc. Shoulder Eye Bolt - 3/8-16 x 1-1/4"
Proof tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15. - Traceability and Mechanical test values are available with each shipment upon request
Shoulder Eye Bolt - 3/8-16 x 1-1/4"
Proof tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15. - Traceability and Mechanical test values are available with each shipment upon request
Product #: GRYBS12
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
$5.00 /EA
Login for contractor price
Regular: $5.00 /
Available Online: 96
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
Gray Tools inc. is a Canadian professional tool company founded in 1912 by Alex Gray. Gray Tools is Canada's largest professional tool manufacturing company, with 4000 industrial products available. No customer reviews for the moment.
Product Description
The Gray Tools Shoulder Eye Bolt. Proof tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15. Traceability and Mechanical test values are available with each shipment upon request.
WARNING:
RATED CAPACITY LIMIT IS DRASTICALLY REDUCED WHEN LOADING AT ANY ANGLE. LOADING MUST NEVER BE MADE AT AN ANGLE GREATER THAN 45° FROM BOLT CENTERLINE. AT AN ANGLE OF 45° RATED CAPACITY IS REDUCED TO 1/4 OF THE TABULATED VALUE.
WARNING:
RATED CAPACITY LIMIT IS DRASTICALLY REDUCED WHEN LOADING AT ANY ANGLE. LOADING MUST NEVER BE MADE AT AN ANGLE GREATER THAN 45° FROM BOLT CENTERLINE. AT AN ANGLE OF 45° RATED CAPACITY IS REDUCED TO 1/4 OF THE TABULATED VALUE.
Product Specifications
| Vendor Part #: | BS12 |
| Capacity: | [1550 lbs.] |
| Fastener Length: | [3-9/32 inches] |
| Grade: | C1030 |
| Inside Eye Diameter: | [1 inch] |
| Shank: | [1-1/4 inches] |
| Thread Count: | 16 |
