Bosch Power Tools Positioning Device - *BOSCH
Positioning Device
Product #: BSABM1
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
Product Description

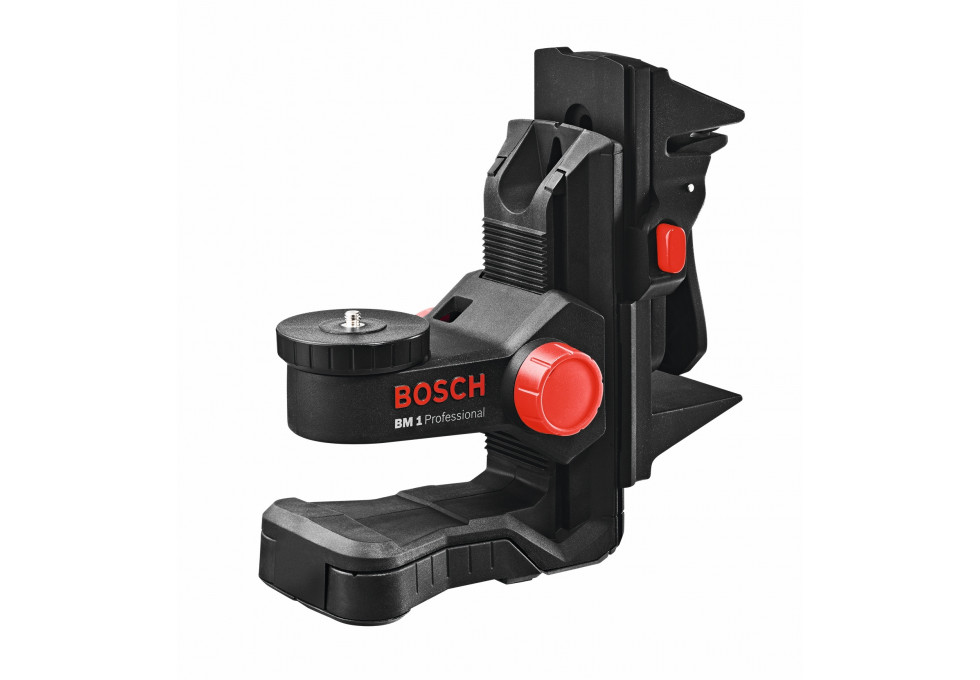

The Bosch Positioning Device - *BOSCH. The Bosch BM 1 positioning device features a microfine height-adjustment system for quick horizontal level adjustment, as well as the versatility to work with a variety of levels, due to its 1/4 In.-20 mounting screw. The microfine adjustment system includes a knob to adjust the horizontal line height while mounted, which eliminates the user from having to remount if the tool is not at correct level. The device features very strong magnets for mounting to metal surfaces. It has other mounting systems, such as slots for screws or nails, clip attachment for ceiling grids and raceways for optional straps. The mount also has retractable feet, so that it is freestanding to use as a mini tripod. It also has two different threaded mounts on the bottom (1/4 In-20 and 5/8 In-11). This gives it the versatility to be used with standard tripod or pole mounts.
Build
- Versatile positioning device design – offers adaptability, with microfine height adjustment, retractable feet for freestanding mode, 1/4 In.-20 mounting thread and multimounting systems
- Microfine height-adjustment system – provides quick adjustment and secure locking of the working height
- Strong magnets – allows for quick positioning to metal surfaces
- Threaded mounts (1/4-In. x 20 and 5/8 In. x 11) on bottom – affords flexibility, allowing attachment to standard tripod or pole mounts
- Retractable feet for freestanding use – allows use as a mini tripod
- Multimounting system – features strong magnets, 5/8 In.-11 and 1/4 In.-20 thread, slots for screws or nails, and raceways for optional straps
- Clip attachment – offers quick setup in ceiling grid applications
Approximate Item/Package Dimensions in inches
- Width: 7
- Height: 4.1
- Depth: 9.1
Approximate Item/Package Weight in pounds
- Weight: 2.53
Product Specifications
Vendor Part #: | BM1 |
