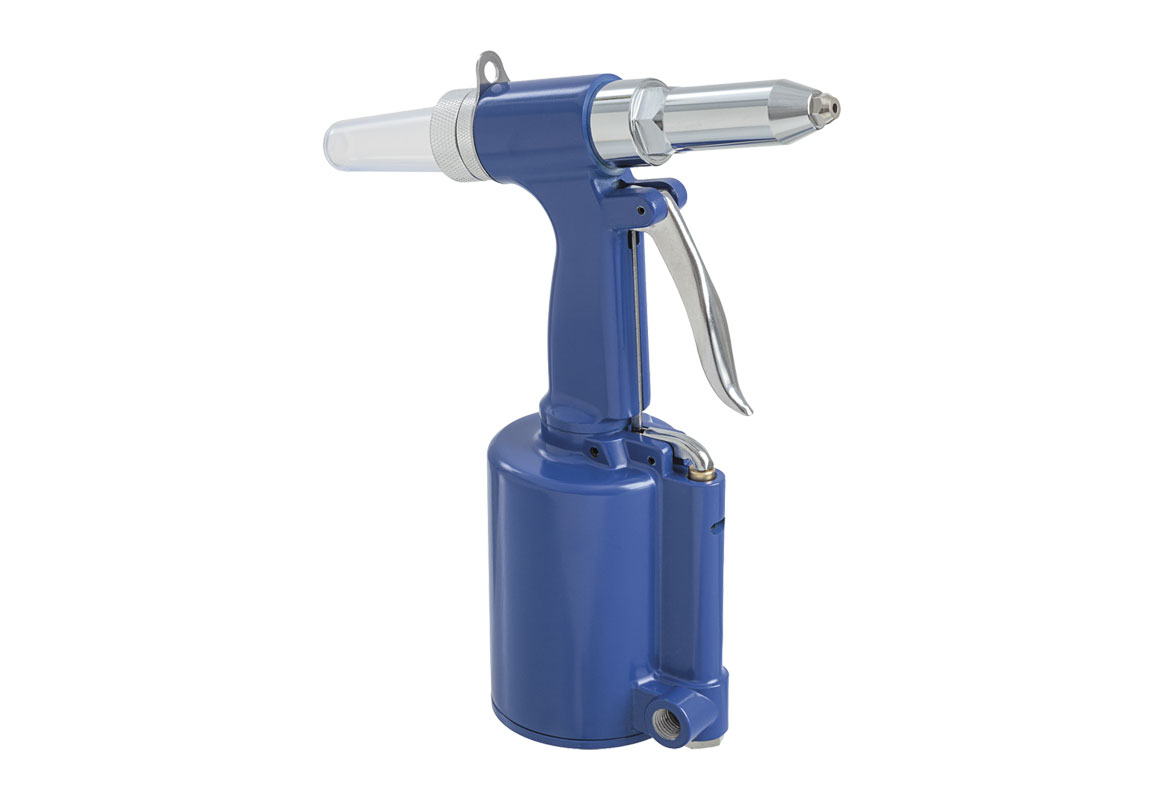

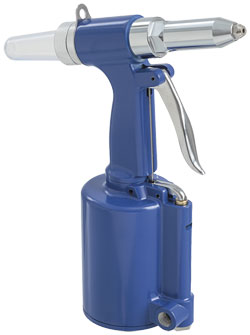

Jet Equipment & Tools Rivet Gun (Kit) - Up to 3/16" - All Materials / AR316HDA
PNEUMATIC - Gives you 3/16" capacity, 1,940 lbs. Pulling Force & a 1/4" inlet - 9/16” stroke sets rivets in one hit, increasing efficiency
Rivet Gun (Kit) - Up to 3/16" - All Materials / AR316HDA
PNEUMATIC - Gives you 3/16" capacity, 1,940 lbs. Pulling Force & a 1/4" inlet - 9/16” stroke sets rivets in one hit, increasing efficiency
Product #: JET409005
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
Jet Equipment & Tools is part of SureWerx™ Group supplying only professional grade tools, equipment and safety gear since 1957, earning the trust of Canadian workers. No customer reviews for the moment.
Product Description
This Jet 3/16" Air Riveter is built with a POWERFUL pulling load of 1,940 lbs. and can be used on all rivet material types, including steel and aluminum, up to 3/16”
Build
For maximum performance we recommend 90 PSI air pressure.
9/16” stroke sets rivets in one hit, increasing efficiency.
Includes 4 sizes of nose pieces for a wide range of uses.
Built with a high quality, see-through collection bottle.
Air relief valve prevents overloading for greater tool service life.
Designed for professional automotive and light to medium duty industrial applications.
Very compact and lightweight – only 3.2 lbs!
- Riveters: Power or hand tools used to install a rivet through a hole between two or more materials in order to secure them together.
Product Specifications
| Vendor Part #: | 409005 |
| Air Inlet: | [1/4 inch] NPT |
| Avg. Air Consumption : | [4 cfm] |
| Min. Hose Size: | [3/8 inch] |
| Nosepiece: | [3/32 inch], [1/8 inch], [5/32 inch], [3/16 inch] |
| Pull Force: | [1940 lbs.] |
| Rivet Capacity: | [3/16 inch] |
| Stroke: | [0.56 inch] |
| Weight: | [3.3 lbs.] |
