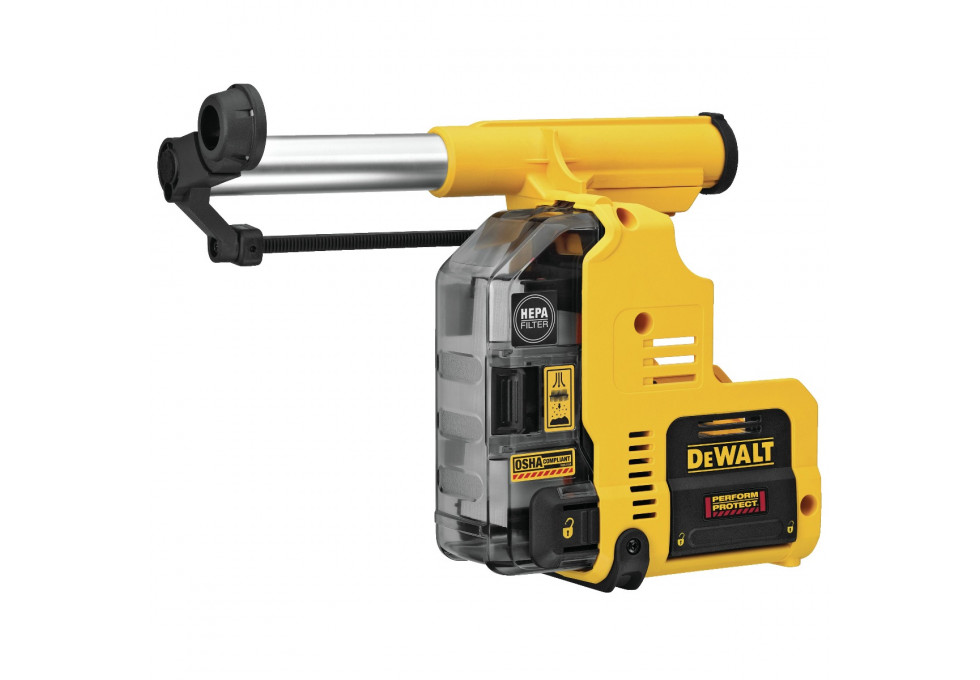

This OSHA Table 1-compliant Dust Extractor works with the DCH273 1 in. Hammer. It features an OSHA 1926.1153-compliant Dust Box Assembly. With a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater. The Dust Extractor has a powerful built in motor for increased suction during high performance drilling. The 2-second power-off delay ensures that dust extraction continues after the drill is switched off. It accomodates drill bit diameters up to 5/8 in. which allows users to drill overhead for 1/2 in. drop-ins.

Features

• Table 1-compliant dust management solution for 1 in. SDS Plus rotary hammers
• 2-second power off delay ensures dust extraction to continue after drill is switched off
• Clear, durable dust box ensures users can see when dust box needs to be emptied
• Built-in motor increases suction and high tool performance
• Replaceable dust nozzle to quickly change to new nozzle
• Drill up to 5/8 in. diameter, 4 in. useable length, 6 in. overall length bits
• Fits into tight spaces on scissor lifts and between overhead pipes and duct work
• Easily adjustable depth guage for accurate anchor drilling
• Replaces D25303DH

Specifications

Includes

• DWH303DH Extractor
• DWH302DH Dust Box
• Side Handle

Approximate Item/Package Dimensions in inches

• Width: 10.5
• Height: 5
• Depth: 14.5

Approximate Item/Package Weight in pounds

• Weight: 5
