Victory Plastics ltd. Q-Deck Clip - Aluminum / QD Series
Pre-Drilled & Threaded - Aluminum - Can be Pre-Inserted into Concrete - For suspending threaded rod from Q-decking
Q-Deck Clip - Aluminum / QD Series
Pre-Drilled & Threaded - Aluminum - Can be Pre-Inserted into Concrete - For suspending threaded rod from Q-decking
Product #: ANTQD-12
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: Thread Diameter: 1/2"
Info:
$189.00 /EA
Login for contractor price
Regular: $189.00 /
ANTQD-12 1/2" , InStock
$189.00 /100PC
ANTQD-14 1/4" , SoldOut
$150.00 /100PC
ANTQD-38 3/8" , InStock
$150.00 /100PC
Thread Diameter
PROD #
Price
1/2"
ANTQD-12
$189.00 /100PC
1/4"
ANTQD-14$150.00 /100PC
3/8"
ANTQD-38
$150.00 /100PC
Available Online: 579
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
ANTQD-12 1/2"
$189.00 /100PC
ANTQD-14 1/4"
$150.00 /100PC
Call for Availability : 778-330-2602
ANTQD-38 3/8"
$150.00 /100PC
Thread Diameter
PROD #
Price
1/2"
ANTQD-12
$189.00 /100PC
1/4"
ANTQD-14$150.00 /100PC
3/8"
ANTQD-38
$150.00 /100PC
Product Description

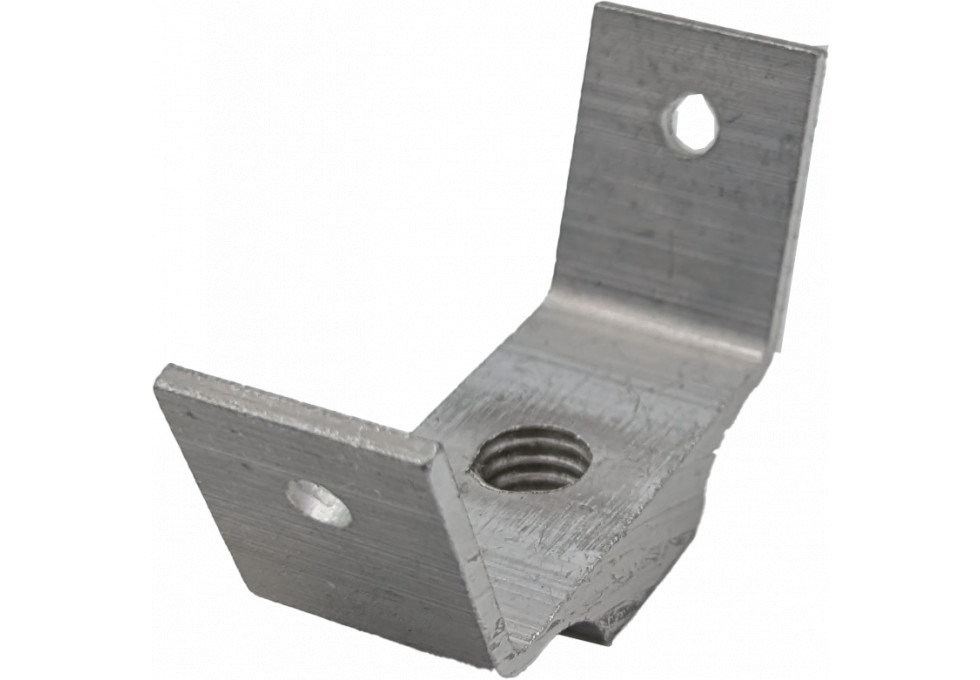

The Q-Deck Clips are built to suspend threaded rod from Q-Deck.
Build
These clips help to eliminate the need for chiseling or punching holes into the side of Q-deck which in turn weakens the deck.
Minimize roof insulation damage with this fast and economical way of hanging plumbing pipe, ducting, fixtures, lighting and more.
Each clip is made of 100% aluminum and has a pre-drilled, predetermined sized threaded hole.
Quick and easy clips to install and use!
Capacities
| Part Number | Thread Size | Lab Pull Test: Top | Lab Pull Test: Bottom | Recommended Load 5-1 Safety: Top | Recommended Load 5-1 Safety: Bottom |
| QD-14 | 1/4” | 1,570 lbs | 1,130 lbs | 314 lbs | 226 lbs |
| QD-38 | 3/8” | 1,570 lbs | 1,130 lbs | 314 lbs | 226 lbs |
| QD-12 | 1/2” | 4-Hole | 1-1/2” Wide | - | - |
Product Specifications
| Vendor Part #: | QD-12 |
| Material: | Aluminum |
