Metal Framing Channel - Cold Formed STRUT
√ STEEL - 12 Gauge

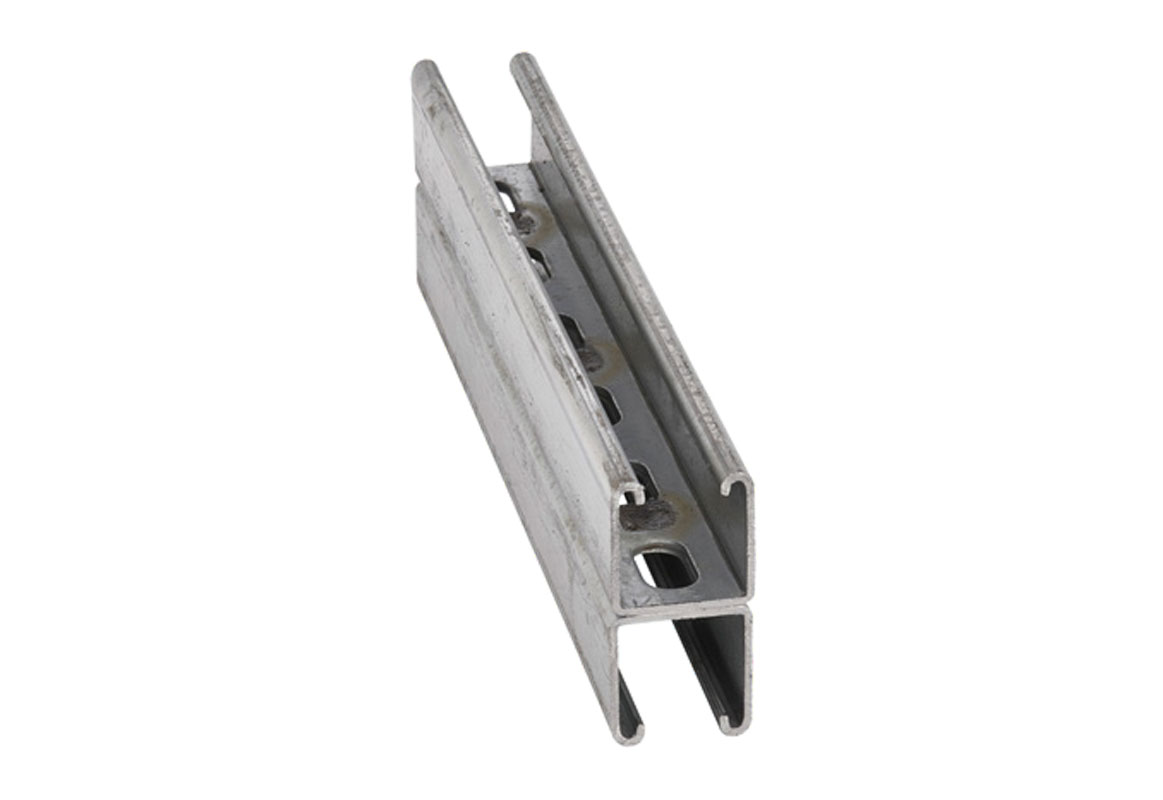

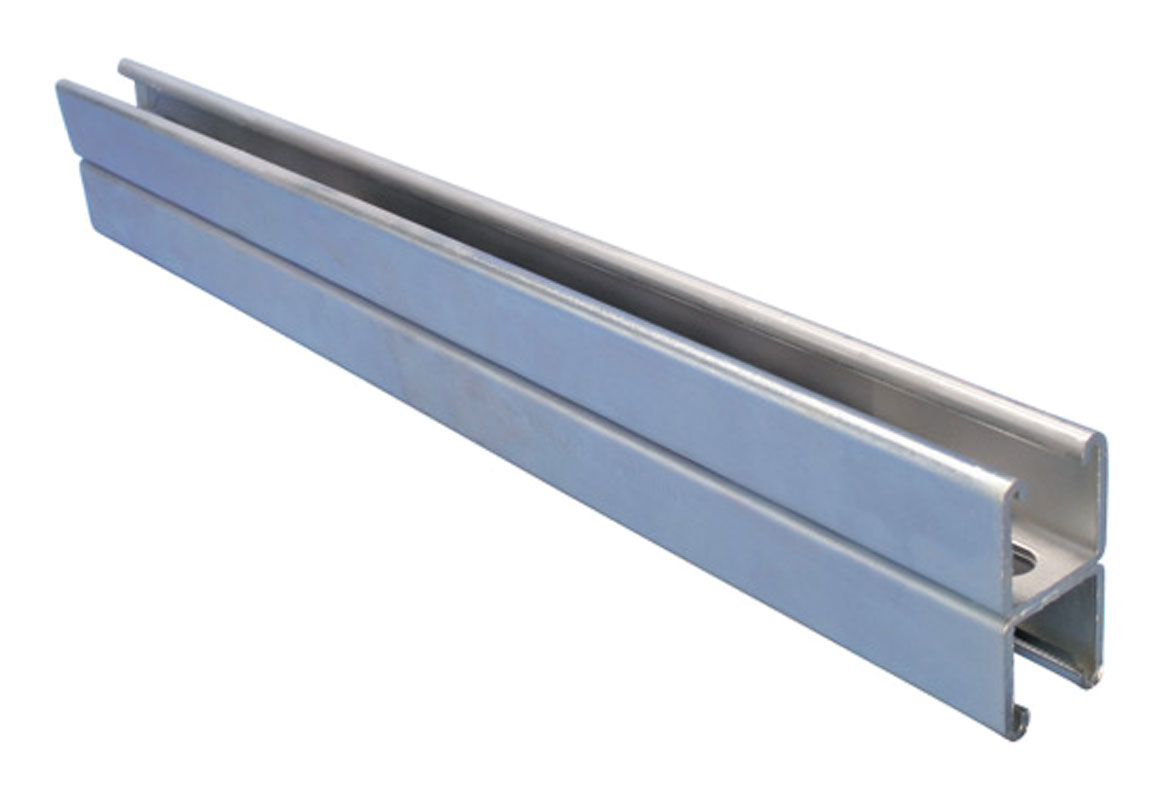

WELDED Back to Back 1-5/8" x 1-5/8" Channels

Pre-Galvanized Finish
ASTM A653
LOW CARBON STEEL

X-AXIS Moment of Inertia (I): 0.920 inch4 Section of Modulus (S): 0.566 inch3 Radius of Gyration (r): 0.910 inch Y-AXIS Moment of Inertia (I): 0.514 inch4 Section of Modulus (S): 0.634 inch3 Radius of Gyration (r): 0.680 inch

Build

Built with inturned lips providing the ability to make attachments at any point.

Slotted strut eliminates the need for precise field measuring for hole locations and comes in a variety of pre-punched patterns.

Excellent for individual fastening or for efficiently constructing pipe or tube routes and more!

Material

By cold working the steel, mechanical properties are increased, allowing lightweight structures to carry the required load.

Corrosion resistance of carbon steel varies widely with coating and alloy.

Finish

Pre-Galvanized steel is produced by coating coils of sheet steel with zinc by continuously rolling the material through molten zinc at the mills.

The G90 specification calls for a coating of .90 ounces of zinc per square foot of steel. This results in a coating of .45 ounces per square foot on each side of the sheet.

During fabrication, cut edges and welded areas are not normally zinc coated; however, the zinc near the uncoated metal becomes a sacrificial anode to protect the bare areas after a short period of time.
