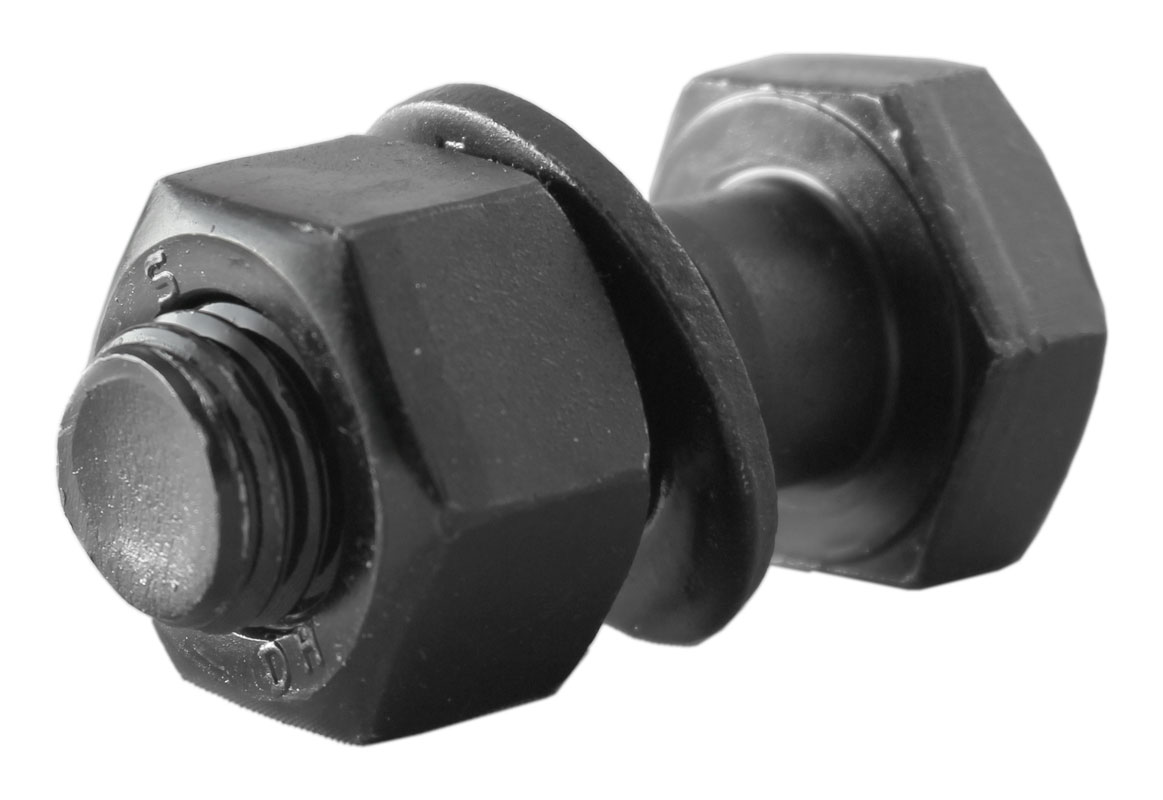

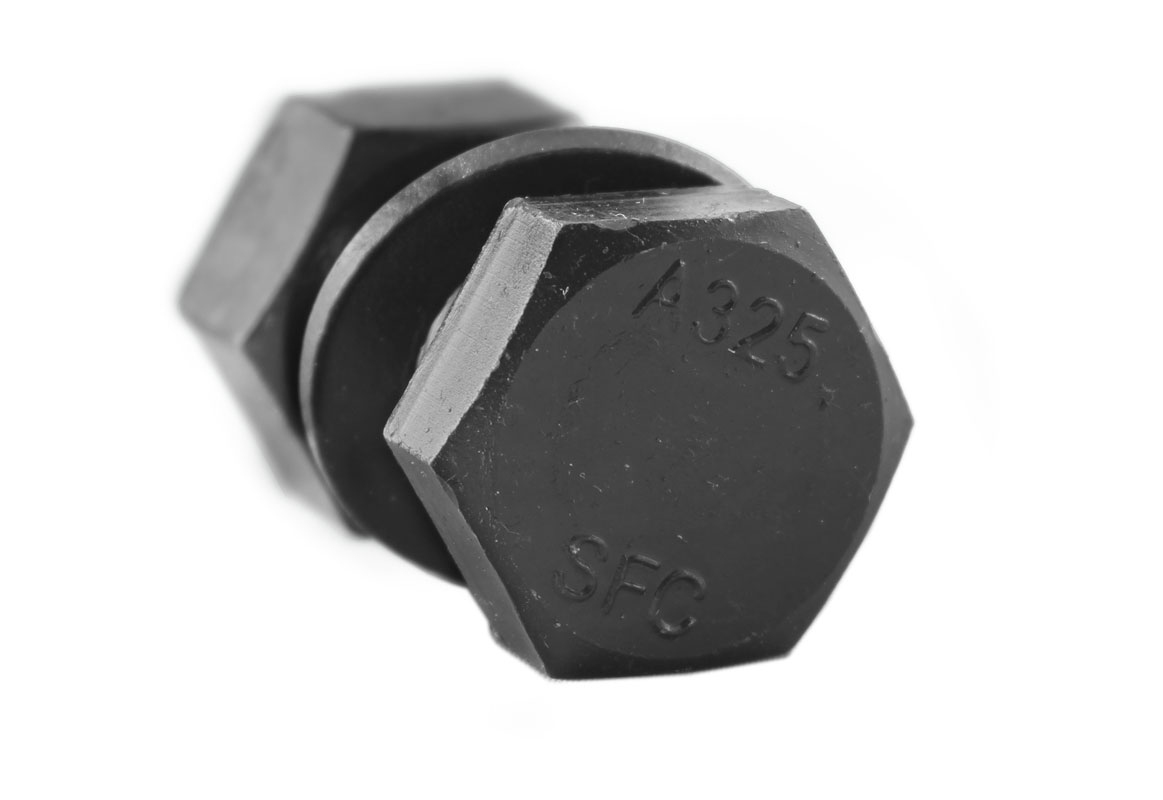

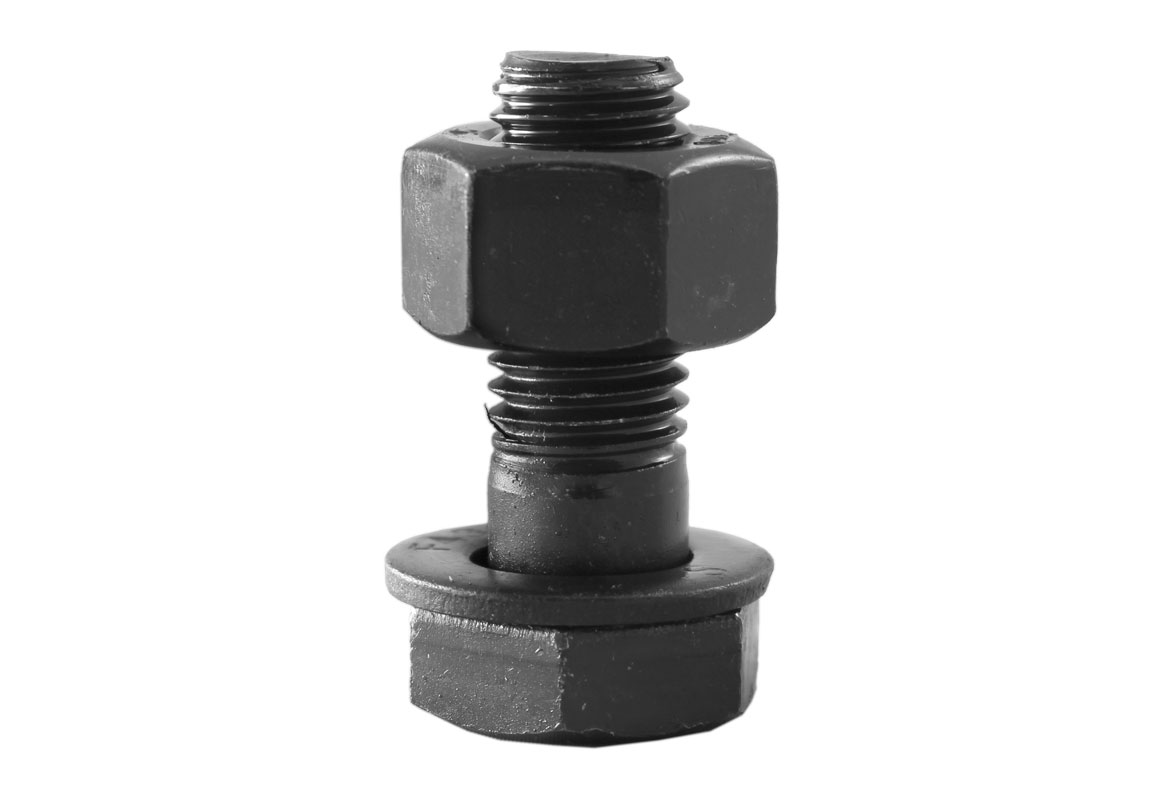

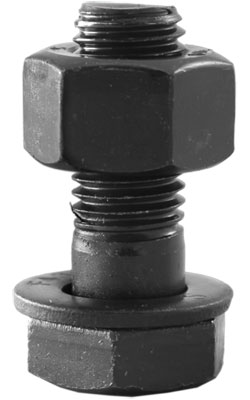

Structural Bolt 1-1/8" UNC - w/A563 DH Nut / Plain A325
7 thread count / Coarse Thread *ASTM A325 GRADE BOLT / Bare Plain Finish. Unified Standard Class 2A Fit.
Structural Bolt 1-1/8" UNC - w/A563 DH Nut / Plain A325
7 thread count / Coarse Thread *ASTM A325 GRADE BOLT / Bare Plain Finish. Unified Standard Class 2A Fit.
Product #: SBB018080A325
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: DIA.: 1-1/8"; Length: 5"
Info:
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
Product Description
Hexagonal Head Structural Bolts are Built for use in Large Structures, such as Buildings and Bridges.
Each Structural Bolt INCLUDES a Flat Washer & A563 Heavy Hex Nut.
Constructed for loads of steel-to-steel structural connections!
STEEL - FOR EXTRA STRENGTH
√ QUENCHED AND TEMPERED
Bare Plain Finish
ASTM A325
MEDIUM CARBON STEEL
- Made to the dimensional requirements of I.F.I. Standard Hex.
- Heavy Hex Structural Bolts (B18.2.6)
TENSILE STRENGTH (PSI)
- Up to 1” dia. inclusive 120,000 PSI
- Over 1” to 1-1/2” inclusive 105,000 PSI
Product Specifications
| Vendor Part #: | 018048A325 |
| Diameter: | [1-1/8 inch] |
| Grade: | A325 |
| Head Type: | Hex |
| Material: | Medium Carbon Steel |
| Plating: | Bare / Plain |
| Tensile Strength (minimum): | [105000 psi] |
| Thread: | UNC |
| Wrench Size: | [1-13/16 inches] |
- √Steel-to-Steel Structural Connections
