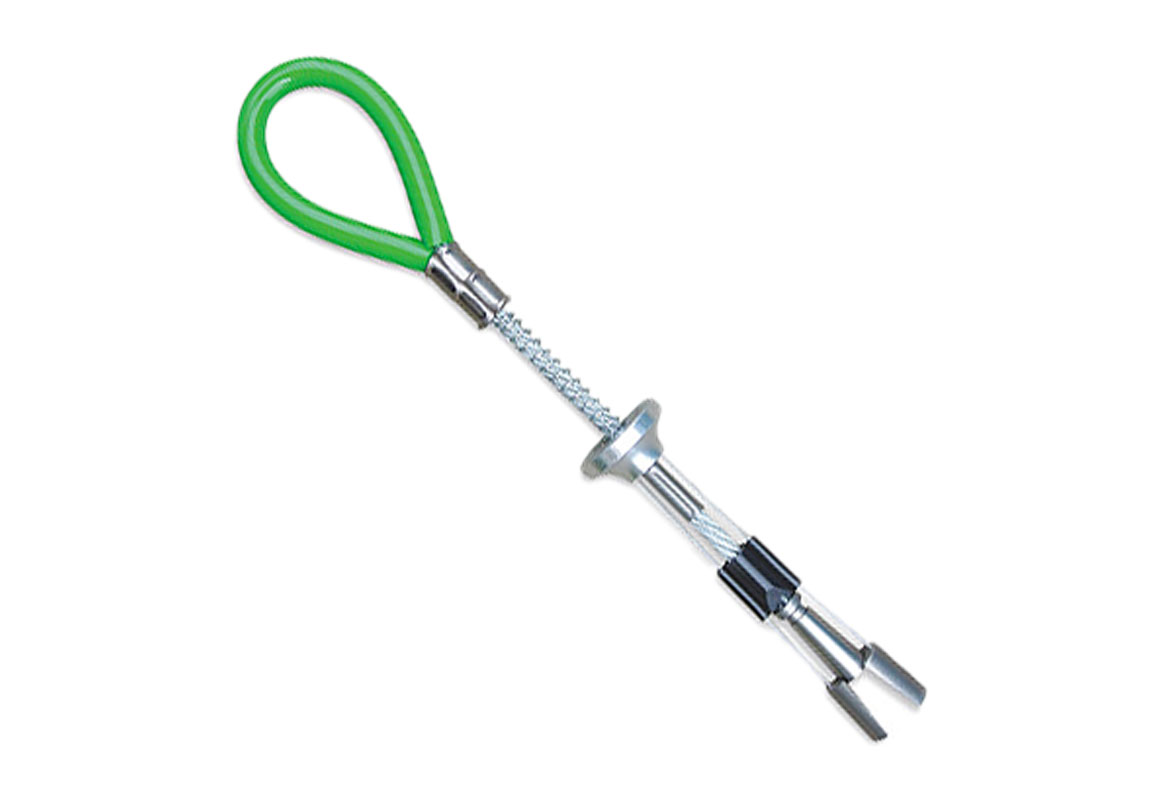

The Miller Grip™ Anchorage Connector is a portable and reusable anchorage connector, which is specially made for concrete applications. This is a single user connection with 5,000 lbs. (2,268 kg) of ultimate strength.
Anchoring
A safe anchor point is established when the Miller Grip™ anchor is inserted into a properly-sized, cured concrete hole.
This anchorage connector can be used with SkyGrip Horizontal Lifeline components and can take 400 lbs. (181.4 kg) capacity.
Applications
The reusable Miller Grip™ anchor can be removed and simply re-installed in a new location.
It's specially made for vertical or overhead/ceiling surface applications.
This anchorage connector is ideal to be use in cured concrete with a compression strength of at least 3,000 psi (20.7 MPa).
Features
The multi-use grips can be used for anchoring scaffolding, material handling, and removal of concrete debris after demolition.
It's constructed out of stainless steel, aluminum, and other non-corrosive materials for a longer service life.
There is green color-coding to differentiate fall protection use per OSHA regulations.
- Fall Protection: A backup system to protect workers from death or injury in the event of a fall while performing a task at heights.
- kiloNewton (kN): This is the force of gravity rating, NOT static weight or mass. One kiloNewton is equal to approximately 225 lbs.
Vendor Part #: | 496 |
Color: | Color-Coded Green |
Tensile Strength (minimum): | [5000 lbs.] |
- √for Concrete Applications
