UCAN Fastening Products Concrete Wedge Anchor 3/4 x 12 Zinc
Most suitable for static applications, and can be loaded immediately. Anchor size = hole size. *Comes with Nut and Washer. Replaced with PWR7451SD1

Concrete Wedge Anchor 3/4 x 12 Zinc

Most suitable for static applications, and can be loaded immediately. Anchor size = hole size. *Comes with Nut and Washer. Replaced with PWR7451SD1
Concrete Wedge Anchor 3/4 x 12 Zinc

Product #: UCAWED3412
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Pls.Call

0

/100PC

$877.37

Available Online: 0
Pre Order Item
Estimated Availability Date:
Availability in Store:

Please Call for Special Orders : 778-330-2602

QTY:
ADD TO CART
BUY DIRECT

For over 50 years, UCAN has specialized in producing and distributing concrete anchors and other fastening products. UCAN strives to provide the most practical and cost effective solutions to meet the needs of engineers, contractors, and tradesmen.

No customer reviews for the moment.

Product Description

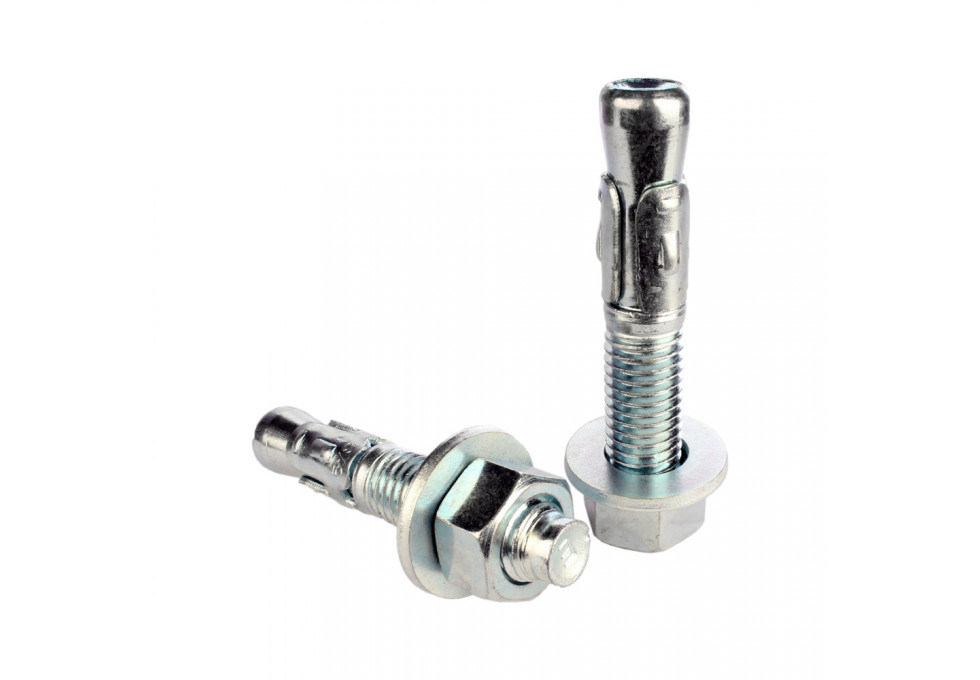

The UCAN Concrete Wedge Anchor 3/4 x 12 Zinc.

The UCAN wedge anchor is a fully threaded, high-grade, steel anchor assembled with a three-segment expansion clip. This fasteners is supplied complete with nut and washer. All parts are zinc plated for added corrosion resistance. The UCAN Wedge anchor is also available in 304 or 316 grade stainless steel. It is most suitable for static applications, and can be loaded immediately.

Features

  • Fast torque up
  • Anchor size = hole size
  • None Bottom Bearing
  • Through fastening type +1/8" clearance hold diameter required
  • Fully threaded

Limitations

  • Not recommended for uncured concrete (less than 7 days old), light-weight concrete, masonry block or brick.

Typical Applications

  • Steel base plates
  • Storage racking
  • Seating
  • Curtain well
  • Tilt-up braces
  • Mechanical equipment
  • Cable trays
  • Pipe support
  • Brick shelf angles
Part No.SizePkg. Qty.Case Qty.Case Wt.
   WED 14134   1/4 x 1-3/4   100   800   27
   WED 14214   1/4 x 2-1/4   100   800   31
   WED 14314   1/4 x 3-1/4   100   800   38
   WED 38214   3/8 x 2-1/4   50   400   35
   WED 38234   3/8 x 2-3/4   50   400   40
   WED 383   3/8 x 3   50   400   42
   WED 38334   3/8 x 3-3/4   50   400   49
   WED 385   3/8 x 5   100   300   45
   WED 12234   1/2 x 2-3/4   50   150   29
   WED 12334   1/2 x 3-3/4   50   150   35
   WED 12414   1/2 x 4-1/4   50   150   38
   WED 12512   1/2 x 5-1/2   50   150   47
   WED 127   1/2 x 7   25   75   31
   WED 12812   1/2 x 8-1/2   25   75   36
   WED 1210   1/2 x 10   25   75   43
   WED 58312   5/8 x 3-1/2   25   75   31
   WED 58412   5/8 x 4-1/2   25   75   36
   WED 585   5/8 x 5   25   75   40
   WED 586   5/8 x 6   25   75   44
   WED 587   5/8 x 7   20   60   52
   WED 58812   5/8 x 8-1/2   20   60   61
   WED 5810   5/8 x 10   15   45   47
   WED 34414   3/4 x 4-1/4   20   60   52
   WED 34434   3/4 x 4-3/4   20   60   55
   WED 34512   3/4 x 5-1/2   20   60   50
   WED 34614   3/4 x 6-1/4   15   45   54
   WED 347   3/4 x 7   15   45   45
   WED 34812   3/4 x 8-1/2   10   30   53
   WED 3410   3/4 x 10   10   30   42
   WED 3412   3/4 x 12   10   30   49
   WED 786   7/8 x 6   10   30   38
   WED 788   7/8 x 8   10   30   48
   WED 7810   7/8 x 10   5   15   39
   WED 16   1 x 6   10   30   47
   WED 19   1 x 9   5   15   46
   WED 112   1 x 12   5   15   59
   WED 1149   1-1/4 x 9   4   12   56
   WED 11412   1-1/4 x 12   4   12   49

Approximate Item/Package Dimensions in inches

  • Width: 1.5
  • Height: 1.5
  • Depth: 12

Approximate Item/Package Weight in pounds

  • Weight: 1.41
Product Specifications
Vendor Part #:WED3412
