Beam Clamp - 2 Tons - Heavy-Duty / 120605
Estimated Availability Date:
Call for Availability : 778-330-2602
Jet Equipment & Tools is part of SureWerx™ Group supplying only professional grade tools, equipment and safety gear since 1957, earning the trust of Canadian workers. No customer reviews for the moment.

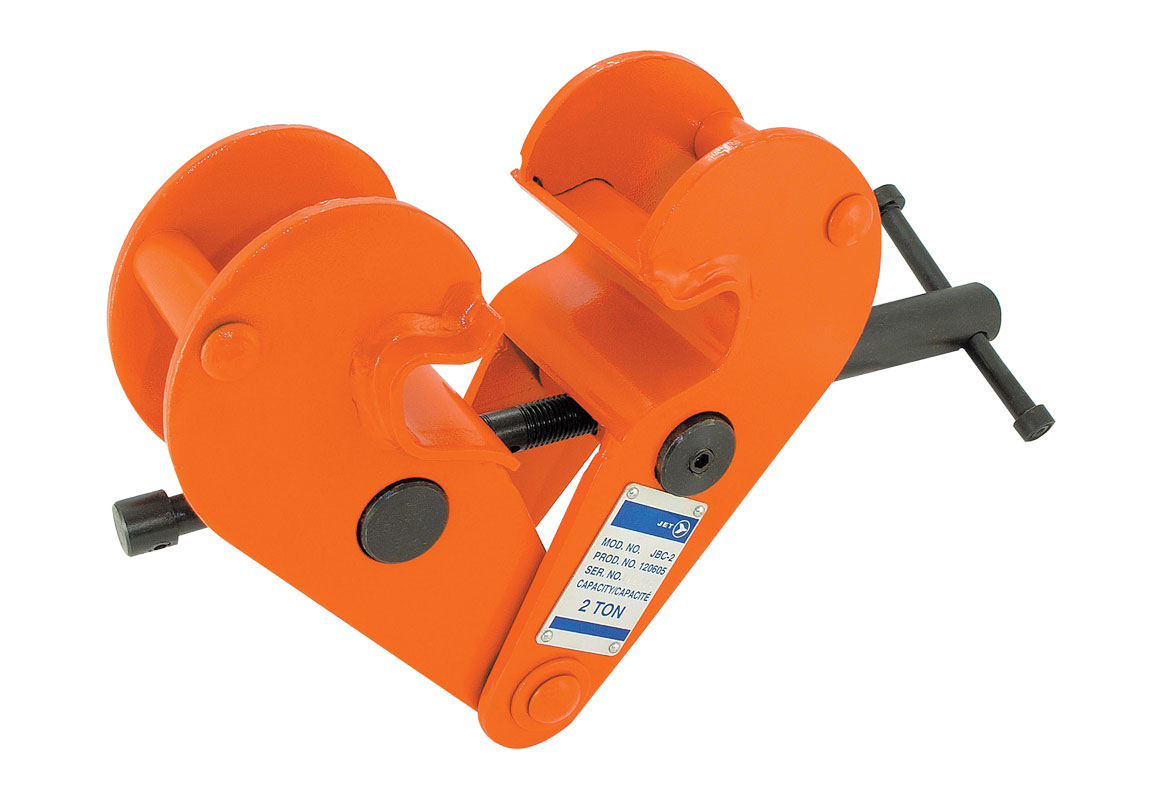

The JET Heavy Duty Beam Clamp with Locking Screw can be used for suspending loads or inverted as a clamp for vertical lifting of flanged beams.
Build
The clamp's jaw is specially built to reduce stress on beam flanges by distributing load away from edges. The tool's equal width jaws assure best possible stability.
The threaded handle allows you to easily of install and transport the clamp.
Suspension
There is a special locking screw mechanism that ensures the unit stays tight, increasing safety.
It can be adjusted to fit securely on a wide range of flange and beam widths. The clamp has a maximum angle from vertical 15° when used for lifting beams.
The built-in suspension bar provides ultra low headroom.
This tool meets ANSI B30.11 and B30.20 specifications (Certificate included) and is tested to 150% of rated capacity.
| Vendor Part #: | 310132 |
| C: | [2.91 inches] |
| Capacity: | [2 tons] |
| D: | [0.28 inch] |
| E: | [8.46 inches] |
| H: | [0.80 inch] |
| Max A: | [9.65 inches] |
| Max B: | [14.17 inches] |
| Max F: | [5.31 inches] |
| Minimum B: | [7.48 inches] |
| Minimum F: | [3.07 inches] |
| Minimum G: | [1.10 inches] |
| Rated Capacity: | [4000 lbs.] |
| Rated Flange Width: | [2.95 inches] - [9.05 inches] |
| Weight: | [14.168 lbs.] |
