Jet Equipment & Tools Super Heavy Duty Hand Winch - 882 lbs.
Chain hoist type dual pawl Weston brake - Non-asbestos brake discs - Free wheeling feature - Dust and weather-tight housing
Super Heavy Duty Hand Winch - 882 lbs.
Chain hoist type dual pawl Weston brake - Non-asbestos brake discs - Free wheeling feature - Dust and weather-tight housing
Product #: JET113263
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Please Call for Special Orders : 778-330-2602
QTY:
BUY DIRECT
Jet Equipment & Tools is part of SureWerx™ Group supplying only professional grade tools, equipment and safety gear since 1957, earning the trust of Canadian workers. No customer reviews for the moment.
Product Description

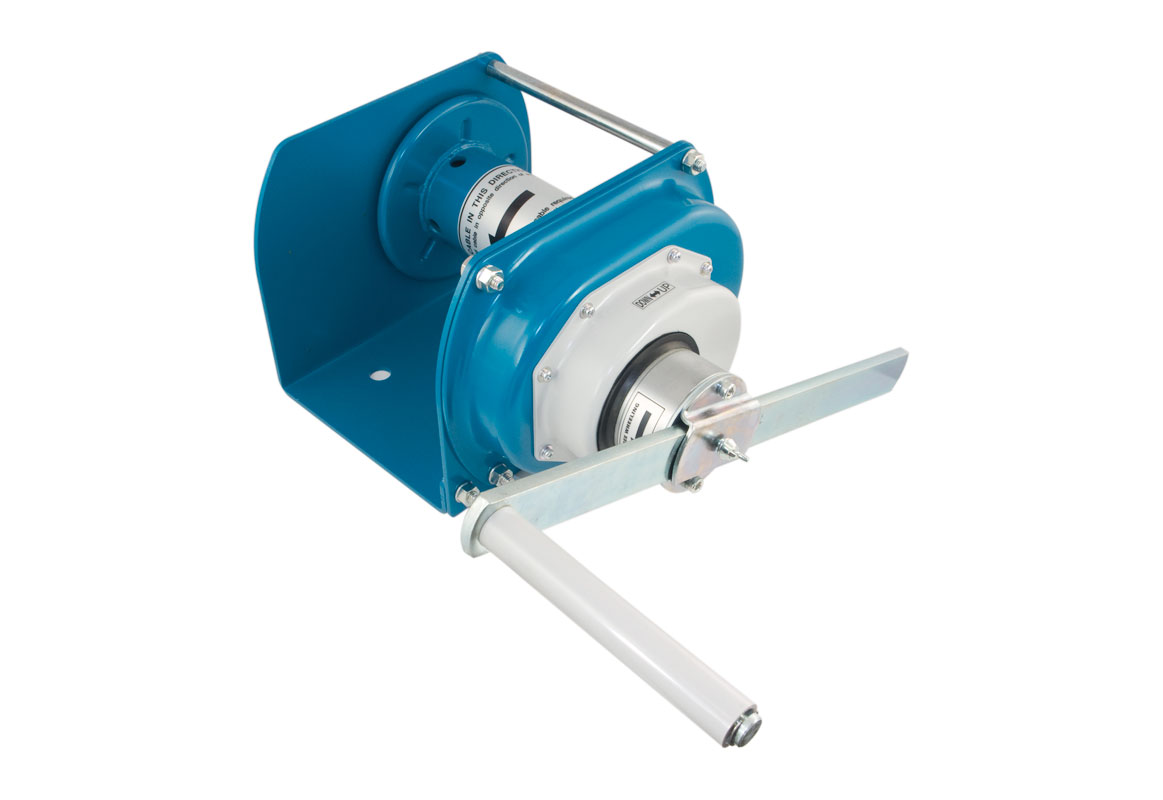

The JET Super Heavy Duty Hand Winch is 1/4" x 98' and gives you 882 lbs. and a 4.33:1 gear ratio. It comes equipped with a chain hoist type dual pawl Weston brake for ultimate load control.
All braking components of the winch are plated with a rust resistant finish.
The tool's non-asbestos brake discs use high quality low abrasion aramid fibre material for a safer and healthier environment.
The free wheeling feature enables you to pay out cable fast. This tool WILL NOT free wheel under load.
There is dust and weather-tight housing that uses an ABS plastic cover to seal out dust and rain.
The handle grip is specially built to allow maximum comfort during winding, and the handle's length is easily adjustable.
All braking components of the winch are plated with a rust resistant finish.
The tool's non-asbestos brake discs use high quality low abrasion aramid fibre material for a safer and healthier environment.
The free wheeling feature enables you to pay out cable fast. This tool WILL NOT free wheel under load.
There is dust and weather-tight housing that uses an ABS plastic cover to seal out dust and rain.
The handle grip is specially built to allow maximum comfort during winding, and the handle's length is easily adjustable.
Product Specifications
| Vendor Part #: | 140109 |
| Cable length pulled per turn : | [2-3/16 inches] |
| Drum Capacity: | [1/4 inch] x 98 |
| Force Req. to Lift Capacity: | 25 |
| Gear Ratio: | 4.33:1 |
| Handle Length: | [10.75 inches] |
| Rated Lifting Capacity: | [882 lbs.] |
| Reel Capacity — Cable: A: | [2-3/4 inches] |
| Reel Capacity — Cable: B: | [5-33/64 inches] |
| Reel Capacity — Cable: C: | [5-29/32 inches] |
| Reel Capacity — Cable: D: | [3-15/16 inches] |
| Reel Capacity — Cable: E: | [19/32 inch] |
| Reel Capacity — Cable: F: | [19-13/64 inches] |
| Reel Capacity — Cable: G: | [13-3/4 inches] |
| Reel Capacity — Cable: H: | [7-11/64 inches] |
| Reel Capacity — Cable: I: | [5-1/8 inches] |
| Reel Capacity — Cable: J: | [9-31/32 inches] |
| Reel Capacity — Cable: K: | [12-15/16 inches] |
| Weight: | [30.8 lbs.] |
