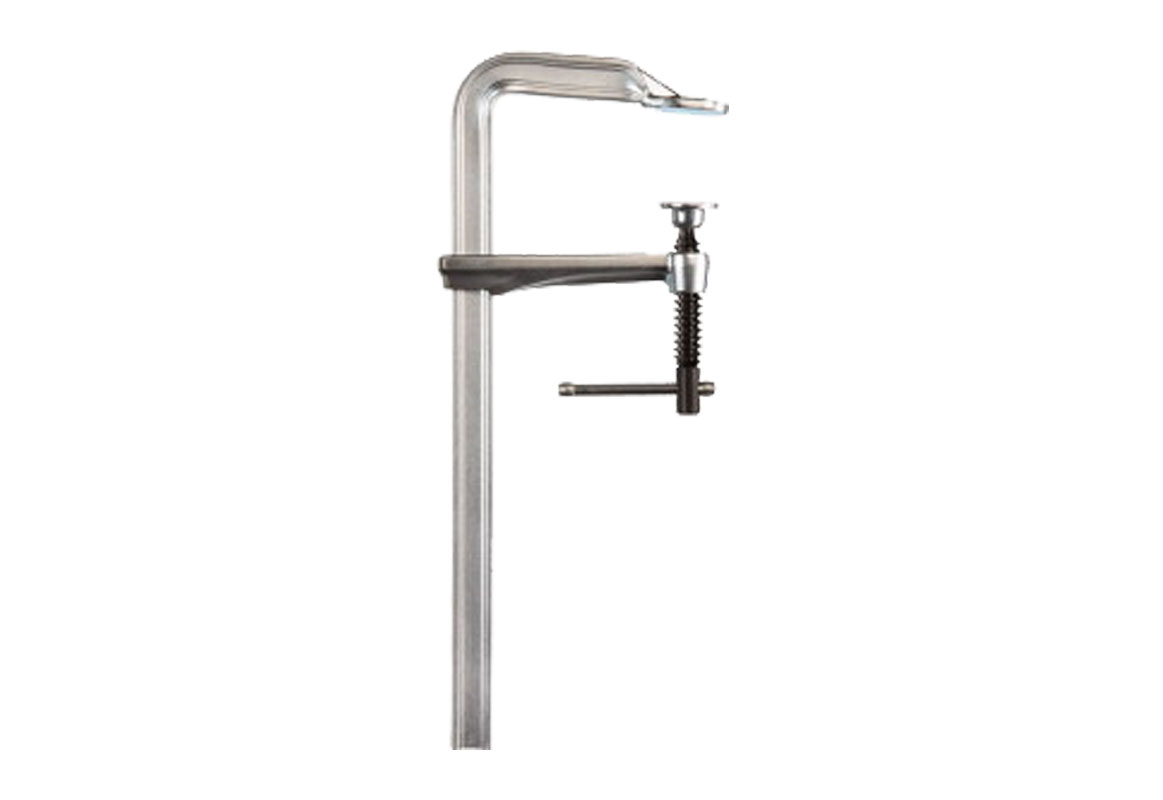

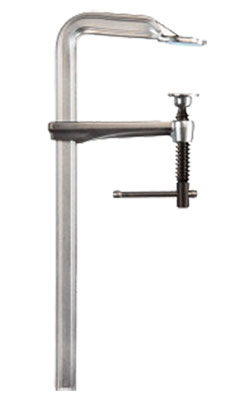

Bar Clamp - Light Duty - Steel / 1200-S Series
Estimated Availability Date:
Please Call for Special Orders : 778-330-2602
Since 1889, Bessey has been a precision steel and tool manufacturer that ensures decisive quality in all their products.
No customer reviews for the moment.
The Bessey Light Duty Shop Floor All-Steel Bar Clamps are built for welding and fabricating applications.
Build
These industrial bar clamps are built with a rail profile that provides the clamp with greater stability, enhanced clamping force and 20% more clamping force per spindle turn, for quicker set-up times.
Comes with a field replaceable swivel pad, so you can always rely on this clamp to get the job done.
The heat-treated, high carbon Acme threaded screw has been tempered and quenched to give greater loading capacity and longer service life.
The sliding arm has been drop forged and is u-shaped which transfers clamping force evenly across the surface of the forged piece improving power transmission, stability and long life of the clamp.
Made from all-steel construction!
Capacities
| Clamping Capacity | Throat Depth | Clamping Force | Approx. Weight |
| 8” | 5-1/2” | 1320 lbs | 3.75 lbs |
| 12” | 5-1/2” | 1320 lbs | 4.25 lbs |
| 18” | 4-3/4” | 1320 lbs | 4.75 lbs |
| 24” | 4-3/4” | 1320 lbs | 5.25 lbs |
| Vendor Part #: | 1200-S24 |
| Clamping Force: | [1320 lbs.] |
| Color: | Silver |
| Material: | Steel |
- √In Workshops
- √for Applying Clamp Force on Objects
