Zamac Pin Bolt Anchor - 1/4" Zinc Plated Steel / ZAM (PKG)
UCAZAM14114 UCAZAM143Estimated Availability Date:
Call for Availability : 778-330-2602
UCAZAM14114 UCAZAM143
For over 50 years, UCAN has specialized in producing and distributing concrete anchors and other fastening products. UCAN strives to provide the most practical and cost effective solutions to meet the needs of engineers, contractors, and tradesmen.
No customer reviews for the moment.

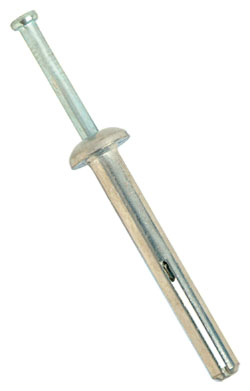

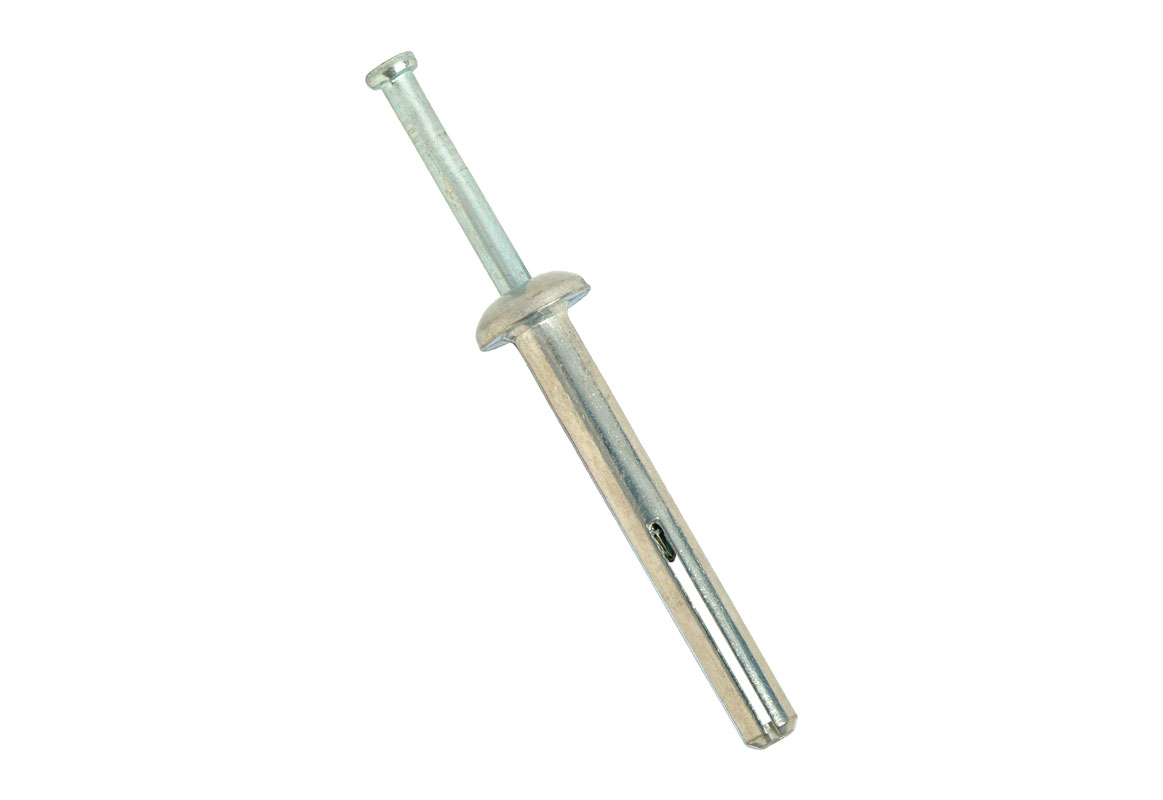

The UCAN Zamac Pin Bolt is a light duty, tamperproof anchor, which has a zinc plated or stainless steel pin preassembled with a body made from a corrosion resistant zinc/aluminum alloy.
It is ideal for all masonry materials, including concrete, hollow block, brick and precast.
The following are features of this product:
- Tamperproof
- One Piece Anchor
- Anchor Size = Hole Size
- Through Fastening
Average Ultimate Loads
| 3600 psi Concrete | |||
| Diameter | Embedment | Pullout | Shear |
| 3/16" | 3/4" | 500 lbs. | 725 lbs. |
| 1/4" | 3/4 | 710 lbs. | 1100 lbs |
| 1/4" | 1" | 1020 lbs. | 1100 lbs. |
Please Note: Apply safety factor to ensure the working load per acnhor does not exceed 1/4 of the tablulated ultimate load, under static loading conditions.
| Vendor Part #: | ZAM141 |
| Drill Size: | [1/4 inch] |
| Material: | Steel |
| Plating: | Zinc |
- √Brick
- √Hollow Block
- √For Stud Wall
- √For Lightweight Fixtures, Signs
- √For HVAC Straps
- √For Flashing
- √For Conduit Fittings
- √For Brick Ties
- √Concrete
- √Pre-Cast
