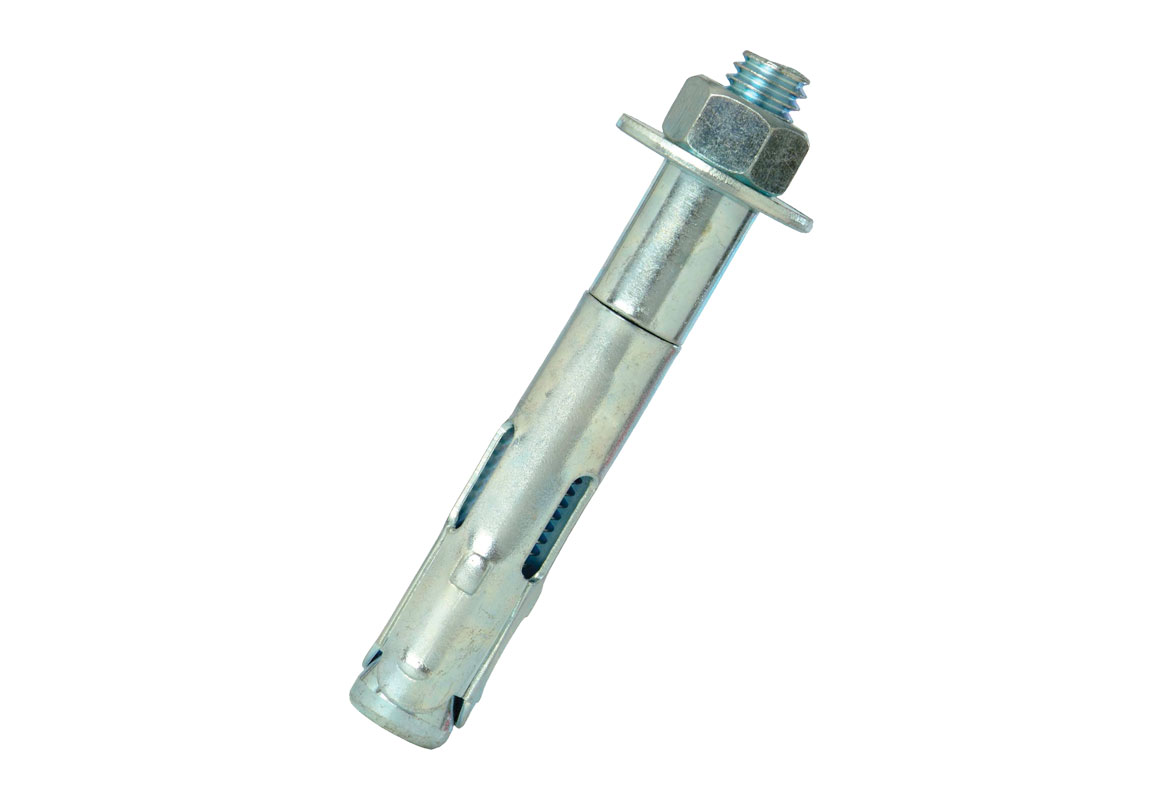

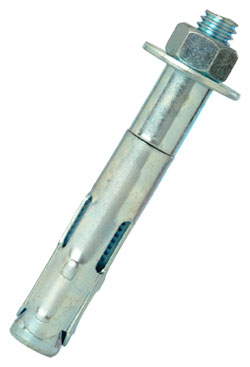

Hex Nut Sleeve Anchor - 3/4" - Zinc Plated / SLE
Estimated Availability Date:
Please Call for Special Orders : 778-330-2602
For over 50 years, UCAN has specialized in producing and distributing concrete anchors and other fastening products. UCAN strives to provide the most practical and cost effective solutions to meet the needs of engineers, contractors, and tradesmen.
No customer reviews for the moment.
The UCAN Sleeve Anchor is made to the highest quality standards. UCAN Fastening Products are strictly quality-controlled to assure consistent performance.
For over 50 years, UCAN has specialized in producing and distributing concrete anchors and other fastening products. UCAN strives to provide the most practical and cost effective solutions to meet the needs of engineers, contractors, and tradesmen.
For concrete, hollow block and brick applications, this sleeve anchor is an ideal light to medium duty anchor.
These anchors are mechanical expansion anchors, which are assembled with an expansion sleeve, spacer, nut, and washer.
Average Ultimate Load
with 3/4" Anchor Size & 3-3/8" Embedment
Normal weight stone aggregate concrete
| PSI | Tension | Shear |
| 2000 psi | 6943 lbf | 10036 lbf |
| 4000 psi | 9525 lbf | 10036 lbf |
Allowable Loads
with 3/4" Anchor Size & 3-3/8" Embedment
Normal weight stone aggregate concrete
| PSI | Tension | Shear |
| 2000 psi | 1736 lbf | 2509 lbf |
| 4000 psi | 2381 lbf | 2509 lbf |
Please Note: Not recommended for uncured concrete (less than 7 days old), lightweight concrete, masonry block or brick.
| Vendor Part #: | SLE34212 |
| Clearance Hole Dia.: | [13/16 inch] |
| Effective Embedment : | [3-3/8 inch] |
| Internal Thread Dia.: | [5/8 inch] |
| Max Installation Torque: | [85 ft x lbf] |
| Min. Anchor Spacing: | [3-3/4 inch] |
| Min. Base Material Thickness: | [5 inch] |
| Min. Edge Distance: | [1-7/8 inch] |
| Nut Type: | Hex |
| Plating: | Zinc |
| Required Anchor Spacing for 100% performance: | [7-1/2 inch] |
| Required edge distance for 100% performance: | [3-3/4 inch] |
| Type: | Mechanical Expansion |
- √Concrete
- √For a Light Duty Anchor
- √For a Medium Duty Anchor
