UCAN Fastening Products 6mm Head Pin - Powder Actuated Super Point Fasteners - Steel Washer / PC
PIN - Use this fastener with UCAN Semi-Automatic Piston Drive Tool, DX 400, and DX 450
6mm Head Pin - Powder Actuated Super Point Fasteners - Steel Washer / PC
PIN - Use this fastener with UCAN Semi-Automatic Piston Drive Tool, DX 400, and DX 450
Product #: UCAPC37
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: Shank L.: 1-1/2"
Info:
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Please Call for Special Orders : 778-330-2602
QTY:
BUY DIRECT
For over 50 years, UCAN has specialized in producing and distributing concrete anchors and other fastening products. UCAN strives to provide the most practical and cost effective solutions to meet the needs of engineers, contractors, and tradesmen.
No customer reviews for the moment.
Product Description

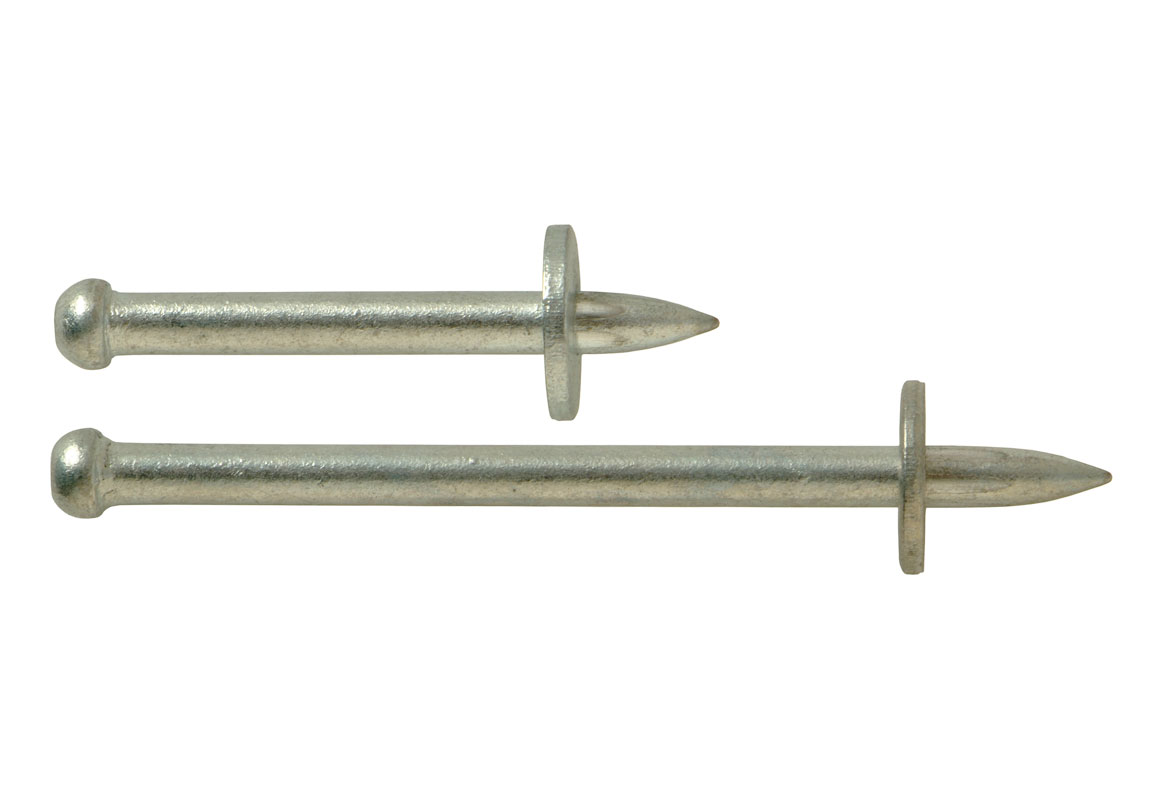

UCAN powder actuated fasteners are manufactured from high quality spring steel wire. For optimum hardness and toughness, all fasteners are heat treated to a core hardness of RC 50 - 54. To provide protection against corrosion, fasteners are zinc plated to a thickness of minimum 0.0003" (7.5μm).
You can use this fastener with UCAN Semi-Automatic Piston Drive Tool (LV 470), and also with DX 400 and DX 450.
This fastener comes with a 12mm washer for steel and concrete applications.
You can use this fastener with UCAN Semi-Automatic Piston Drive Tool (LV 470), and also with DX 400 and DX 450.
This fastener comes with a 12mm washer for steel and concrete applications.
Application Limits for Fastening to Concrete
- Do not fasten into crack or spalled areas
- Concrete thickness > 4 inches
- Min. distance between fasteners > 3 inches
- Min. edge distance > 3 inches
- Shank Diamter = 0.145 inches
- Optimat Fastener Penetration for maximum holding power in concrete:
- 1-1/2" - Less than 2000 psi
- 1" - 2000 psi
- 3/4" - 5000 psi
Product Specifications
| Vendor Part #: | PC22 |
| Head Diameter: | [6 mm] |
| Shear Strength: | [168200 psi] |
| Tensile Strength (average): | [269700 psi] |
| Washer - Material: | Steel |
| Washer - Size: | [12 mm] |
