UCAN Fastening Products Screw Anchor - 5mm Phillips Drive - Nylon-6 / MNA
METRIC - Pre-assembled with a zinc plated screw - Reinforced head - For all masonry and concrete base materials
Screw Anchor - 5mm Phillips Drive - Nylon-6 / MNA
METRIC - Pre-assembled with a zinc plated screw - Reinforced head - For all masonry and concrete base materials
Product #: UCAMNA530
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: Drill Dia.: 5 mm; Length: 30 mm
Info: Fastens up to 5mm
$18.45 /EA
Login for contractor price
Regular: $18.45 /
UCAMNA530 5 mm, 30 mm Fastens up to 5mm , InStock
$18.45 /100PC
Drill Dia.
Length
Info
PROD #
Price
5 mm
30 mm
Fastens up to 5mm
UCAMNA530
$18.45 /100PC
Available Online: 77
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
UCAMNA530 5 mm, 30 mm Fastens up to 5mm
$18.45 /100PC
UCAMNA550 5 mm, 50 mm Fastens up to 25mm
Call for Availability : 778-330-2602
Drill Dia.
Length
Info
PROD #
Price
5 mm
30 mm
Fastens up to 5mm
UCAMNA530
$18.45 /100PC
For over 50 years, UCAN has specialized in producing and distributing concrete anchors and other fastening products. UCAN strives to provide the most practical and cost effective solutions to meet the needs of engineers, contractors, and tradesmen.
No customer reviews for the moment.
Product Description

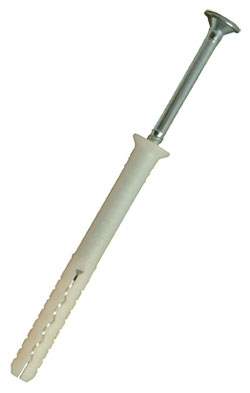

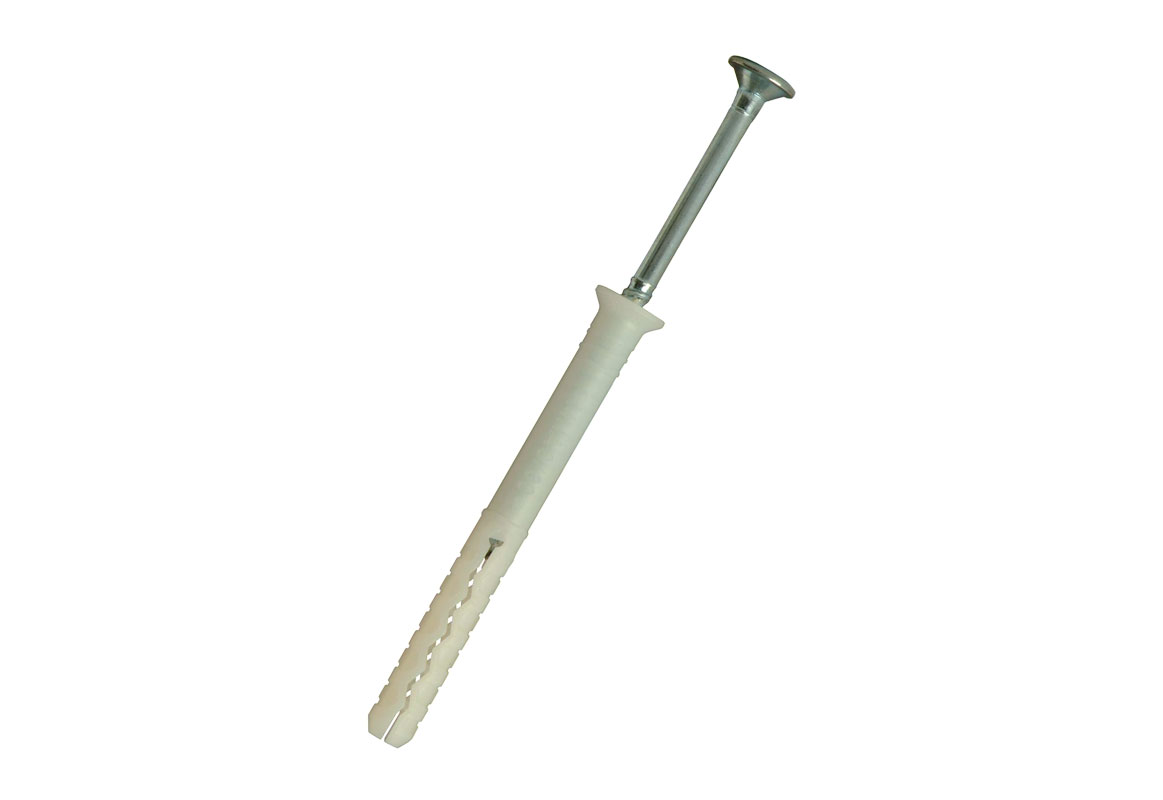

The UCAN Drive Screw Anchor is manufactured from a tough and durable Nylon-6. It comes pre-assembled with a zinc plated Phillips or square socket drive stainless steel screw.
The reinforced head holds the fixture firmly in place.
This anchor is suitable for all masonry and concrete base materials.
The following features come with this anchor:
The reinforced head holds the fixture firmly in place.
This anchor is suitable for all masonry and concrete base materials.
The following features come with this anchor:
- Ready to use, assembled fasteners for through fastening
- Impact expansion by hammer
- Removable with a screwdriver
- Environmentally friendly (contains no cadmium)
- Reinforced screw shoulder firmly grips the nylon body neck
Product Specifications
| Vendor Part #: | MNA530 |
| Anchor Material: | Nylon-6 |
| Screw Drive Type: | Phillips |
| Head Type: | Flat |
| In-Place Temperature Range: | [-40 Degrees Celsius] to [80 Degrees Celsius] |
| Installation Temperature : | [0 Degrees Celsius] to [40 Degrees Celsius] |
| Min. Embedment: | [25 mm] |
| Shear - 3000 psi Concrete: | [516 lbs] |
| Tension - 3000 psi Concrete: | [330 lbs] |
| Tension - Hollow Concrete Block: | [225 lbs] |
- √For Brick Ties
- √For Conduit Clips
- √For Drywall "Hat" Track
- √For Electrical Boxes
- √For Flashing
- √For Tilt-Ip Forms
- √For Wood Sleepers
