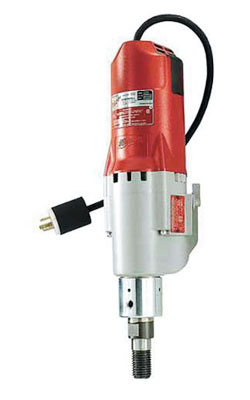

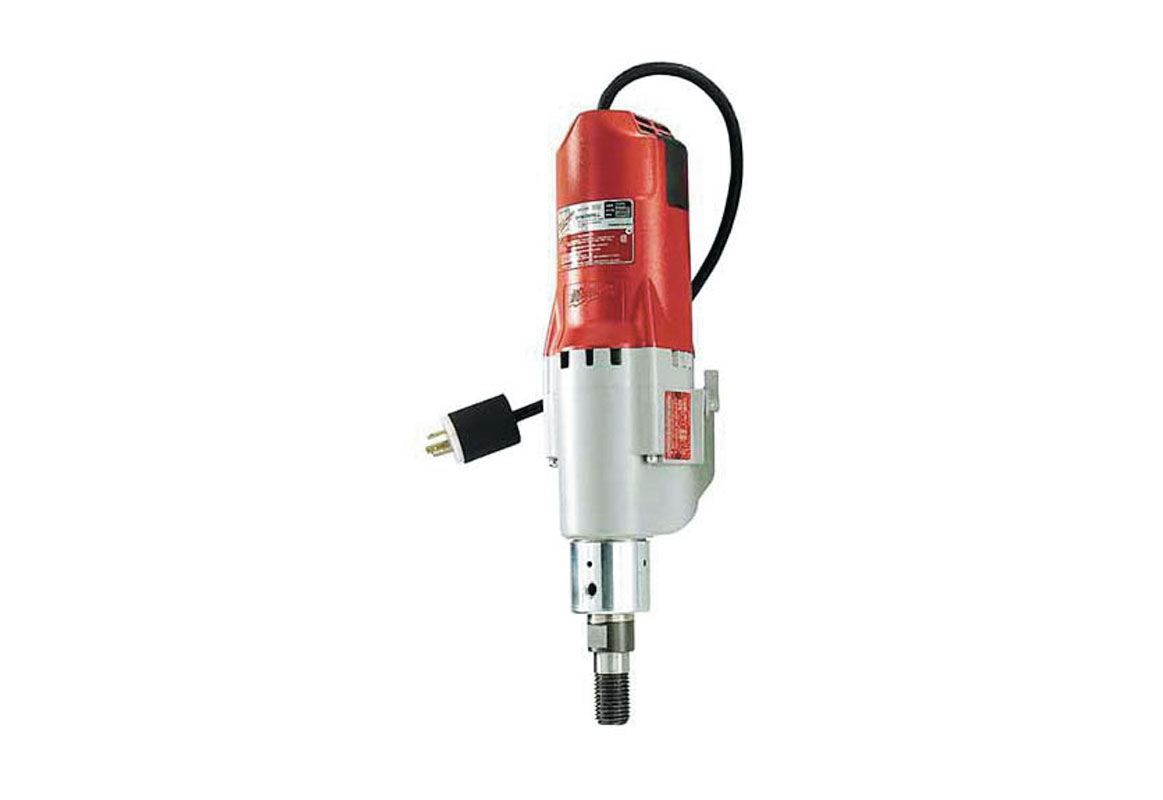

Milwaukee Power Tools Diamond Coring Motor 450/900 RPM, 20 Amp with Clutch
20 AMP CORING MOTOR - Two speeds: 450 and 900 RPM - 20 amp motor
Diamond Coring Motor 450/900 RPM, 20 Amp with Clutch
20 AMP CORING MOTOR - Two speeds: 450 and 900 RPM - 20 amp motor
Product #: MWT4096
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
$1,152.69 /EA
Login for contractor price
Regular: $1,151.49 /
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Please Call for Special Orders : 778-330-2602
QTY:
BUY DIRECT
Since the company began in 1924, Milwaukee Tool has led the industry in developing innovative solutions that deliver increased productivity and unmatched durability for professional construction users. Dedicated to building advanced, trade-specific power tools, hand tools, and a wide variety of accessories for elite professionals.
No customer reviews for the moment.
Product Description
The Milwaukee Diamond Coring Motor 450/900 RPM, 20 Amp with Clutch. Diamond coring motors are used with Vac-U-Rig® and Dymo-Rig diamond core rigs to drill holes into reinforced concrete. This 20 amp model features 4.8 peak horsepower with a 450 RPM or 900 RPM operating speed. The 4096 has a clutch to protect gears and motor against overload. This unit will handle core bits from 2 in. to 10 in. in diameter.
Build
- Two speeds: 450 and 900 RPM
- 20 amp motor
- Clutch protection protects gears and motor
- Built-in water swivel
Manufacturer Warranty
- 5 Years
Approximate Item/Package Dimensions in inches
- Width: 7.000
- Height: 6.500
- Length: 23.500
Approximate Item/Package Weight in pounds
- Weight: 30.250
Product Specifications
| Vendor Part #: | 4096 |
| Chuck Capacity: | 10 |
| Clutch Type: | Motor protection clutch |
| Housing Material: | metal |
| Voltage: | 120 Volts |
| MFG Part # (OEM): | 4096 |
| Chuck Design: | Keyed |
| Color / Finish: | red, grey |
| Cord Length (ft): | 10.0 |
| Side Handle: | No |
| Package Contents: | Diamond Coring Motor 450/900 RPM, 20 Amp with Clutch |
| Manufacturer Warranty: | 5 Years |
| Coolant System: | Yes |
| Net Tool Weight (lbs): | 24.0 |
| First Gear Maximum Speed (rpm): | 450.000000 |
| Stroke (in): | 0.000000 |
| Adjustable Handle Position: | No |
| Amperage (A): | 20.000000 |
| Power Consumption (W): | 0.0000 |
| Speeds: | 2 |
| First Gear Minimum Speed (rpm): | 0.000000 |
| Second Gear Maximum Speed (rpm): | 900.000000 |
| Second Gear Minimum Speed (rpm): | 0.000000 |
| Drilling Depth (in): | 10.000000 |
| Motor Size: | 20 amp motor; 4.8 HP |
| Total Stroke Range (in): | 10 In. Capacity in Concrete; Suggested: 6 in.-10 in. / 2 in.-6 in. |
| Included Safety Features: | Motor Protecting Clutch and built in water swivel |
| UPC: | 045242009480 |
