Jet Equipment & Tools 1-1/2 Ton 20' Lift L-90X Series Chain Hoist - Super Heavy Duty - *JET
1-1/2 Ton 20' Lift L-90X Series Chain Hoist - Super Heavy Duty
1-1/2 Ton 20' Lift L-90X Series Chain Hoist - Super Heavy Duty - *JET
1-1/2 Ton 20' Lift L-90X Series Chain Hoist - Super Heavy Duty
Product #: JET101226
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Please Call for Special Orders : 778-330-2602
QTY:
BUY DIRECT
Jet Equipment & Tools is part of SureWerx™ Group supplying only professional grade tools, equipment and safety gear since 1957, earning the trust of Canadian workers. No customer reviews for the moment.
Product Description
The Jet Equipment 1-1/2 Ton 20' Lift L-90X Series Chain Hoist - Super Heavy Duty - *JET. 1-1/2 Ton 20' Lift L-90X Series Chain Hoist - Super Heavy Duty
Build
- Exclusive class V+ load chain is the world’s strongest grade
- Provides unparalleled safety for the most demanding applications
- Chrome Molybdenum load gears provide maximum strength and resistance to shock
- Load tested to 150% of rated capacity and includes certificate
- Positive ratchet, screw and disc are completely enclosed to protect the brake mechanism
Approximate Item/Package Dimensions in inches
- Width: 9.17
- Height: 12.01
- Depth: 8.03
Approximate Item/Package Weight in pounds
- Weight: 48.9421
Product Specifications

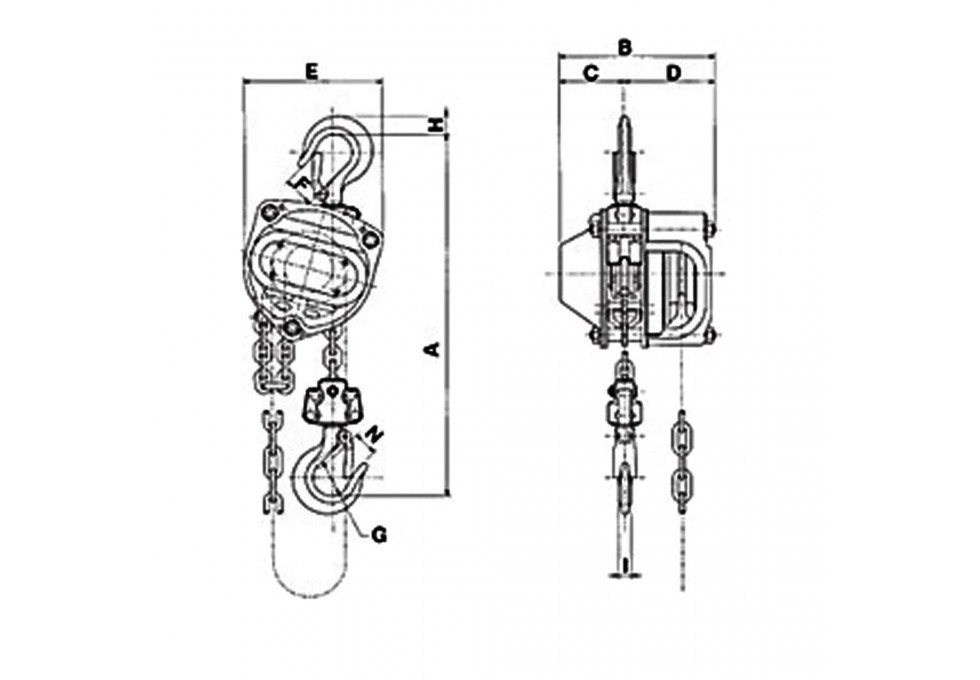

| Vendor Part #: | 101226 |
| A: | 13-1/4" |
| B: | 6-5/8" |
| C: | 2-15/16" |
| D: | 3-11/16" |
| E: | 7-3/16" |
| F: | 1-5/16" |
| G: | 1-11/16" |
| H: | 7/8" |
| Head Room: | 13-1/4" |
| I: | 5/8" |
| Load Chain Diameter: | 7.1 mm |
| N: | 1-3/16" |
| Number of Falls: | 1 |
| Certification: | OSHA|ANSI B30.16 standards |
| Sku Product Number: | 101226 |
| Capacity (T): | 1-1/2 T |
| Duty Level: | Super Heavy Duty |
| Special Features: | Non-asbestos brake discs |
| Capacity (lb.): | 3,520 lb |
| Force Required to Lift: | 91 lb |
| Length of Hand Chain Pulled to Lift Load to 1': | 60' |
| Lift (ft.): | 20' |
| Load Chain Grade: | Class V+ |
| Operating Temperature: | Up to -40ºC |
