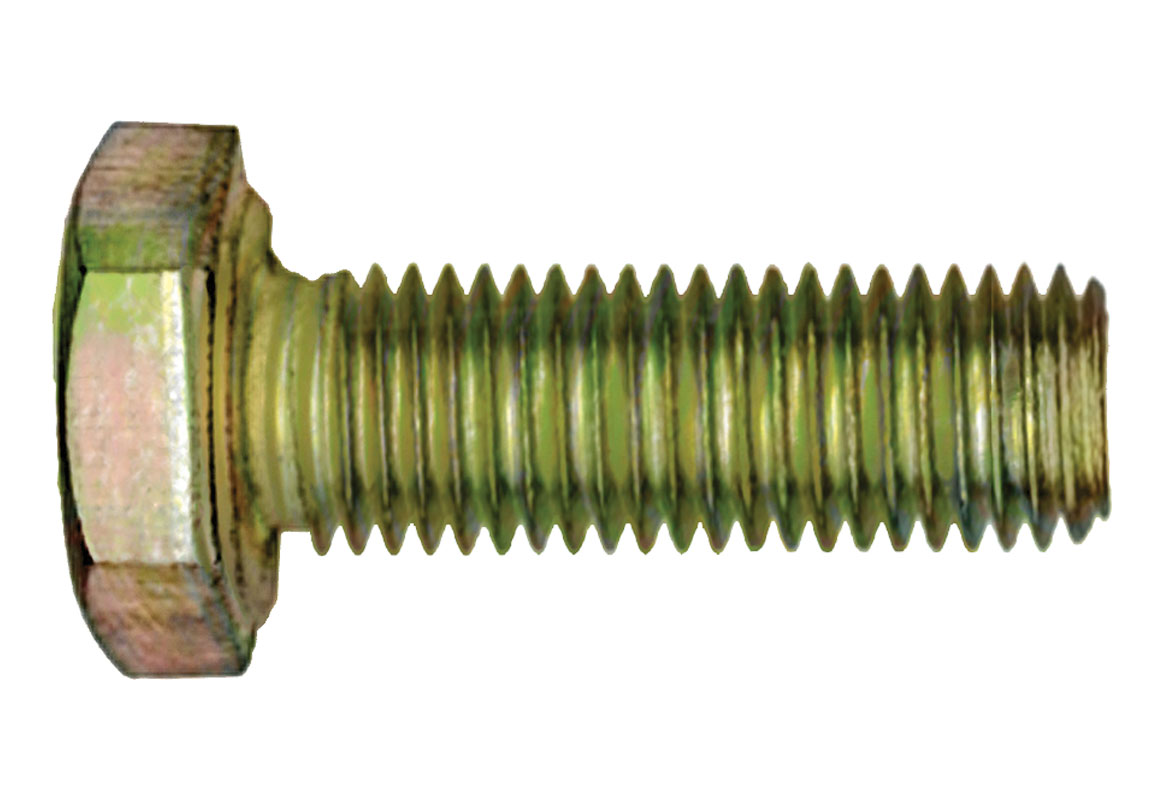

Hex Head Cap Screw 7/16" UNF - Grade 8 / Yellow Zinc
14 thread count / Fine Thread *SAE GRADE 8 BOLT / Zinc Plated & Dichromate Dipped Golden Alloy Finish. Unified Standard Class 2A Fit.
Hex Head Cap Screw 7/16" UNF - Grade 8 / Yellow Zinc
14 thread count / Fine Thread *SAE GRADE 8 BOLT / Zinc Plated & Dichromate Dipped Golden Alloy Finish. Unified Standard Class 2A Fit.
Product #: CSZ8F007024
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: DIA.: 7/16"; Length: 1-1/2"
Info: 20 - UNF
$72.52 /EA
Login for contractor price
Regular: $72.52 /
CSZ8F007012 7/16", 3/4" 20 - UNF , InStock
$48.42 /100PC
CSZ8F007016 7/16", 1" 20 - UNF , SoldOut
$54.94 /100PC
CSZ8F007024 7/16", 1-1/2" 20 - UNF , InStock
$72.52 /100PC
CSZ8F007028 7/16", 1-3/4" 20 - UNF , InStock
$80.43 /100PC
CSZ8F007032 7/16", 2" 20 - UNF , InStock
$87.82 /100PC
CSZ8F007040 7/16", 2-1/2" 20 - UNF , InStock
$105.00 /100PC
CSZ8F007048 7/16", 3" 20 - UNF , InStock
$116.46 /100PC
CSZ8F007056 7/16", 3-1/2" 20 - UNF , InStock
$145.00 /100PC
CSZ8F007064 7/16", 4" 20 - UNF , InStock
$150.00 /100PC
DIA.
Length
Info
Qty Info
PROD #
Price
7/16"
3/4"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007012
$48.42 /100PC
7/16"
1"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007016$54.94 /100PC
7/16"
1-1/2"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007024$72.52 /100PC
7/16"
1-3/4"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007028$80.43 /100PC
7/16"
2"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007032$87.82 /100PC
7/16"
2-1/2"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007040$105.00 /100PC
7/16"
3"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007048$116.46 /100PC
7/16"
3-1/2"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007056
$145.00 /100PC
7/16"
4"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007064
$150.00 /100PC
Available Online: 22
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
This item is sold in multiple of 25.
Minimal order quantity for this item is 25.
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
CSZ8F007012 7/16", 3/4" 20 - UNF
$48.42 /100PC
CSZ8F007016 7/16", 1" 20 - UNF
$54.94 /100PC
Call for Availability : 778-330-2602
CSZ8F007024 7/16", 1-1/2" 20 - UNF
$72.52 /100PC
Call for Availability : 778-330-2602
CSZ8F007028 7/16", 1-3/4" 20 - UNF
$80.43 /100PC
Call for Availability : 778-330-2602
CSZ8F007032 7/16", 2" 20 - UNF
$87.82 /100PC
Call for Availability : 778-330-2602
CSZ8F007040 7/16", 2-1/2" 20 - UNF
$105.00 /100PC
Call for Availability : 778-330-2602
CSZ8F007048 7/16", 3" 20 - UNF
$116.46 /100PC
Call for Availability : 778-330-2602
CSZ8F007056 7/16", 3-1/2" 20 - UNF
$145.00 /100PC
CSZ8F007064 7/16", 4" 20 - UNF
$150.00 /100PC
CSZ8F007020 7/16", 1-1/4" 20 - UNF
Call for Availability : 778-330-2602
CSZ8F007036 7/16", 2-1/4" 20 - UNF
Call for Availability : 778-330-2602
CSZ8F007044 7/16", 2-3/4" 20 - UNF
Call for Availability : 778-330-2602
CSZ8F007052 7/16", 3-1/4" 20 - UNF
Call for Availability : 778-330-2602
CSZ8F007072 7/16", 4-1/2" 20 - UNF
Call for Availability : 778-330-2602
CSZ8F007080 7/16", 5" 20 - UNF
Call for Availability : 778-330-2602
CSZ8F007088 7/16", 5-1/2" 20 - UNF
Call for Availability : 778-330-2602
CSZ8F007096 7/16", 6" 20 - UNF
Call for Availability : 778-330-2602
CSZ8F007104 7/16", 6-1/2" 20 - UNF
Call for Availability : 778-330-2602
DIA.
Length
Info
Qty Info
PROD #
Price
7/16"
3/4"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007012
$48.42 /100PC
7/16"
1"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007016$54.94 /100PC
7/16"
1-1/2"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007024$72.52 /100PC
7/16"
1-3/4"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007028$80.43 /100PC
7/16"
2"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007032$87.82 /100PC
7/16"
2-1/2"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007040$105.00 /100PC
7/16"
3"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007048$116.46 /100PC
7/16"
3-1/2"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007056
$145.00 /100PC
7/16"
4"
20 - UNF
Sold per 25
Min Buy of 25
CSZ8F007064
$150.00 /100PC
Product Description
Hexagonal Head Cap Screws - U.N.F. *SAE GRADE 8
Alloy STEEL
Zinc Plated & Dichromate Dipped Golden Alloy Finish
ASME/ANSI B18.2.1UNIFIED STANDARDClass 2A Fit
MINIMUM TENSILE STRENGTH (PSI)
Alloy STEEL
Zinc Plated & Dichromate Dipped Golden Alloy Finish
ASME/ANSI B18.2.1UNIFIED STANDARDClass 2A Fit
MINIMUM TENSILE STRENGTH (PSI)
- 1/4" through 1-1/2" - 150,000 PSI
- Up to 6” long: (2D + 1/4) Twice diameter plus 1.4 inch.
- Over 6” long: (2D + 1/2) Twice diameter plus 1/2 inch.
- U.N.F. : Acronym, Unified National Fine. A thread type of the Unified Thread System (U.N.C. - U.N.F. - U.N.S. - etc.) that has a slightly higher breaking load capacity than U.N.C. (Unified National Coarse) threads. This higher breaking load capacity is a result of the more shallow thread depth and larger tensile stress area for fasteners of the same identical material and diameter. The smaller lead angle allows for fine adjustments where needed.
- Unified Thread System: The Unified Thread System (or Unified Thread Standard - UTS) defines a standard thread form and series - along with allowances, tolerances, and designations - for screw and bolt threads commonly used in the United States and Canada.
- Platings, Coatings & Finishes: There are a variety of coatings and platings that can be used in the prevention or delaying corrosion in fasteners. Platings and coatings can also enchance or change the physical look of nuts, bolts and washers for projects that require specific aesthetic care.
Product Specifications
| Vendor Part #: | 8F007016 |
| Grade: | 8 |
| Head Type: | I.F.I. Standard Hex |
| Material: | Alloy Steel |
| Plating: | Yellow Zinc |
| Tensile Strength (minimum): | [150000 psi] |
| Wrench Size: | [5/8 inch] |
