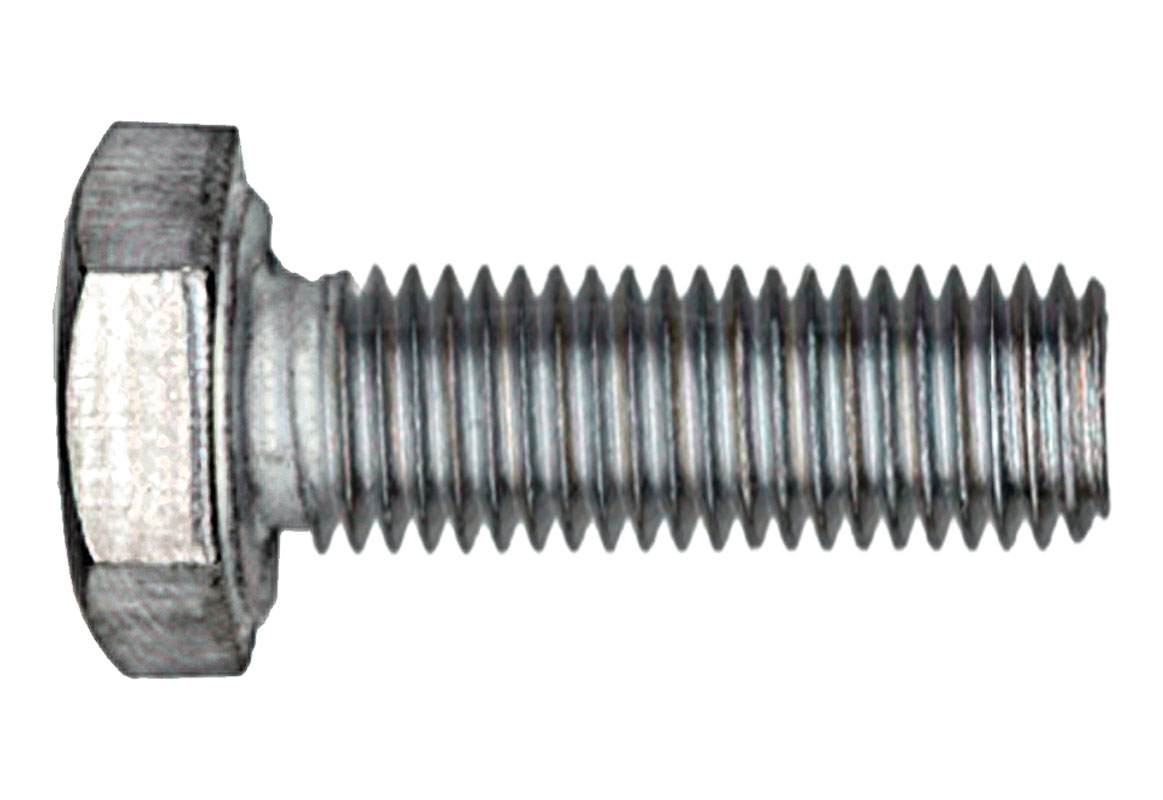

Hex Head Cap Screw 5/8" UNF - Grade 5 / Zinc
18 thread count / Fine Thread *SAE GRADE 5 BOLT / STEEL - FOR EXTRA STRENGTH *Bright Zinc Chromate Plated - Made to the dimensional requirements of I.F.I. Standard Hex. For critical applications requiring greater fastener strength.
Hex Head Cap Screw 5/8" UNF - Grade 5 / Zinc
18 thread count / Fine Thread *SAE GRADE 5 BOLT / STEEL - FOR EXTRA STRENGTH *Bright Zinc Chromate Plated - Made to the dimensional requirements of I.F.I. Standard Hex. For critical applications requiring greater fastener strength.
Product #: CSZ5F010024
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: DIA.: 5/8"; Length: 1-1/2"
Info: 18 - UNF
$88.54 /EA
Login for contractor price
Regular: $88.54 /
CSZ5F010024 5/8", 1-1/2" 18 - UNF , InStock
$88.54 /100PC
DIA.
Length
Info
Qty Info
PROD #
Price
5/8"
1-1/2"
18 - UNF
Sold per 25
Min Buy of 25
CSZ5F010024$88.54 /100PC
Available Online: 11
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
This item is sold in multiple of 25.
Minimal order quantity for this item is 25.
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
CSZ5F010024 5/8", 1-1/2" 18 - UNF
$88.54 /100PC
Call for Availability : 778-330-2602
CSZ5F010016 5/8", 1" 18 - UNF
Call for Availability : 778-330-2602
CSZ5F010032 5/8", 2" 18 - UNF
Call for Availability : 778-330-2602
CSZ5F010036 5/8", 2-1/4" 18 - UNF
Call for Availability : 778-330-2602
CSZ5F010040 5/8", 2-1/2" 18 - UNF
Call for Availability : 778-330-2602
CSZ5F010048 5/8", 3" 18 - UNF
Call for Availability : 778-330-2602
CSZ5F010056 5/8", 3-1/2" 18 - UNF
Call for Availability : 778-330-2602
CSZ5F010072 5/8", 4-1/2" 18 - UNF
Call for Availability : 778-330-2602
CSZ5F010080 5/8", 5" 18 - UNF
Call for Availability : 778-330-2602
DIA.
Length
Info
Qty Info
PROD #
Price
5/8"
1-1/2"
18 - UNF
Sold per 25
Min Buy of 25
CSZ5F010024$88.54 /100PC
Product Description
Hexagonal Head Cap Screws - U.N.F. *SAE GRADE 5
√ STEEL - FOR EXTRA STRENGTH
Bright Zinc Chromate Plated
C1035-1041
MEDIUM CARBON STEEL
- Made to the dimensional requirements of I.F.I. Standard Hex.
- Cap Screws (B18.2.1, 1965)
- For critical applications requiring greater fastener strength
MINIMUM TENSILE STRENGTH (PSI)
- Up to 1” dia. inclusive 120,000 PSI
- Over 1” to 1-1/2” inclusive 105,000 PSI
QUENCHED AND TEMPERED
- MINIMUM THREAD LENGTH (Standard)
- Up to 6” long: (2D + 1/4) Twice diameter plus 1.4 inch.
- Over 6” long: (2D + 1/2) Twice diameter plus 1/2 inch.
- U.N.F. : Acronym, Unified National Fine. A thread type of the Unified Thread System (U.N.C. - U.N.F. - U.N.S. - etc.) that has a slightly higher breaking load capacity than U.N.C. (Unified National Coarse) threads. This higher breaking load capacity is a result of the more shallow thread depth and larger tensile stress area for fasteners of the same identical material and diameter. The smaller lead angle allows for fine adjustments where needed.
- Unified Thread System: The Unified Thread System (or Unified Thread Standard - UTS) defines a standard thread form and series - along with allowances, tolerances, and designations - for screw and bolt threads commonly used in the United States and Canada.
- Platings, Coatings & Finishes: There are a variety of coatings and platings that can be used in the prevention or delaying corrosion in fasteners. Platings and coatings can also enchance or change the physical look of nuts, bolts and washers for projects that require specific aesthetic care.
Product Specifications
| Vendor Part #: | 5F010032 |
| Grade: | 5 |
| Head Type: | I.F.I. Standard Hex |
| Material: | Medium Carbon Steel |
| Plating: | Zinc |
| Tensile Strength (minimum): | [120000 psi] |
| Wrench Size: | [15/16 inch] |
- √Assembly into Tapped Holes
- √Manufacturing Assembly
- √Applications Requiring Greater Fastener Strength
