Dome Head Blind Rivets - 3/16" dia. / ALUM - STEEL Mandrel (BULK)
Open-End Rivets - Aluminum Rivet & Steel Mandrel for a cost-effective solution - 3/16" Rivet Diameter - BULK
Dome Head Blind Rivets - 3/16" dia. / ALUM - STEEL Mandrel (BULK)
Open-End Rivets - Aluminum Rivet & Steel Mandrel for a cost-effective solution - 3/16" Rivet Diameter - BULK
Product #: USMAD68BS
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: Max. Grip Length: 1/2"; Rivet Dia.: 3/16"
Info: 0.376" to 0.500" Grip Range
$99.00 /EA
Login for contractor price
Regular: $99.00 /
USMAD612BS 3/4", 3/16" 0.626" to 0.750" Grip Range , SoldOut
$274.01 /1000PC
USMAD68BS 1/2", 3/16" 0.376" to 0.500" Grip Range , InStock
$99.00 /1000PC
Max. Grip Length
Rivet Dia.
Info
PROD #
Price
3/4"
3/16"
0.626" to 0.750" Grip Range
USMAD612BS$274.01 /1000PC
1/2"
3/16"
0.376" to 0.500" Grip Range
USMAD68BS
$99.00 /1000PC
Available Online: 250
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Please Call for Special Orders : 778-330-2602
QTY:
BUY DIRECT
USMAD612BS 3/4", 3/16" 0.626" to 0.750" Grip Range
$274.01 /1000PC
Please Call for Special Orders : 778-330-2602
USMAD68BS 1/2", 3/16" 0.376" to 0.500" Grip Range
$99.00 /1000PC
USMAD610BS 5/8", 3/16" 0.501" to 0.625" Grip Range
Please Call for Special Orders : 778-330-2602
USMAD614BS 7/8", 3/16" 0.751" to 0.875" Grip Range
Please Call for Special Orders : 778-330-2602
USMAD616BS 1", 3/16" 0.876" to 1.000" Grip Range
Please Call for Special Orders : 778-330-2602
USMAD62BS 1/8", 3/16" 0.063" to 0.125" Grip Range
Please Call for Special Orders : 778-330-2602
USMAD64BS 1/4", 3/16" 0.126" to 0.250" Grip Range
Please Call for Special Orders : 778-330-2602
USMAD66BS 3/8", 3/16" 0.251" to 0.375" Grip Range
Please Call for Special Orders : 778-330-2602
Max. Grip Length
Rivet Dia.
Info
PROD #
Price
3/4"
3/16"
0.626" to 0.750" Grip Range
USMAD612BS$274.01 /1000PC
1/2"
3/16"
0.376" to 0.500" Grip Range
USMAD68BS
$99.00 /1000PC
Product Description

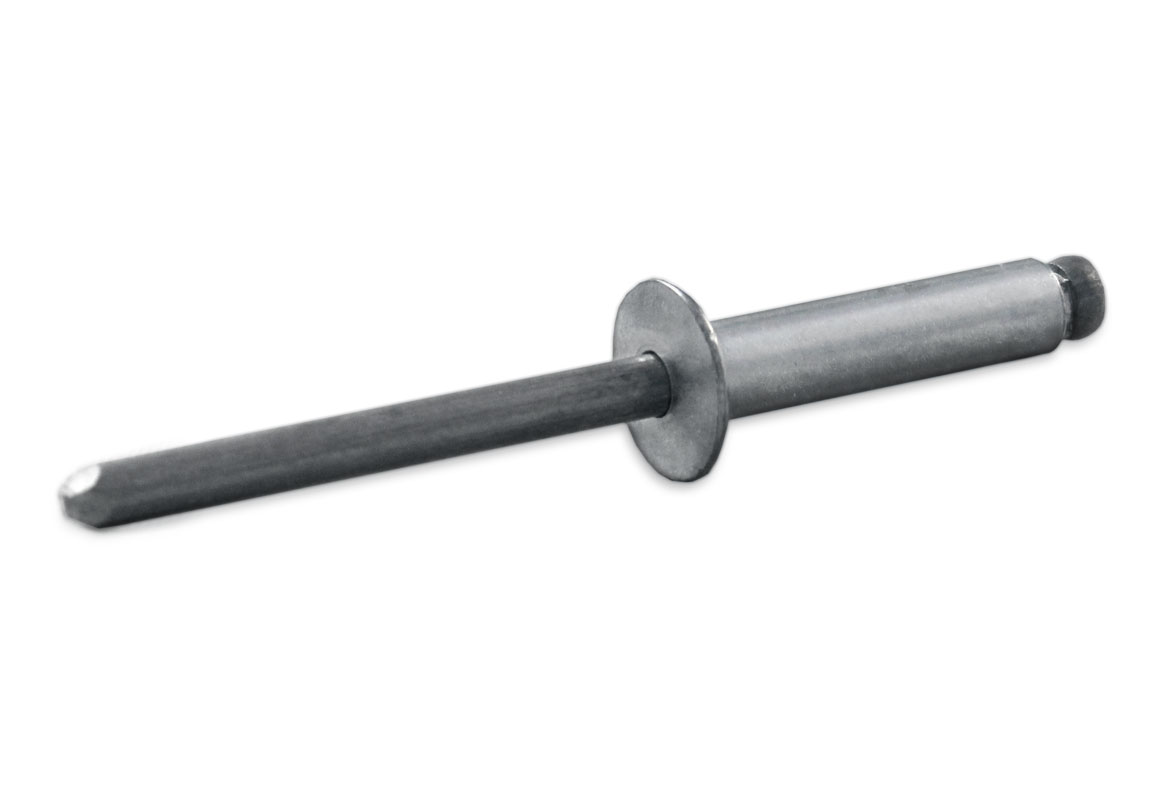

BULK Domed Head, Open-End, Blind Rivets constructed with an Aluminum Rivet Body and Steel Mandrel.
Rivet Diameter 3/16" - HOLE SIZE:
- For holes from 0.192 to 0.1964 inches in diameter
- Use Drill Size #11
Material
This Rivets' Aluminum Body and Steel Mandrel construction makes it an excellent cost-effective option.
The Steel Mandrel is plated for corrosion resistance.
Please be aware that Plated Steel can still rust and corrode. Scratches and nicks on the mandrel will increase the chance of corrosion.
Rivet Head
Domed Head Blind Rivets are built with a low profile head that is double the diameter of most others.
This popular construction provides an adequate bearing surface for most applications.
Product Specifications
| Vendor Part #: | AD62BS |
| Body Material: | Aluminum |
| Drill Size: | #11 |
| Head Type: | Domed |
| Rivet Diameter: | [3/16 inch] |
| Mandrel Material: | Steel |
| End Type: | Open-End |
| For Hole Sizes: | [0.192 inch] to [0.196 inch] |
