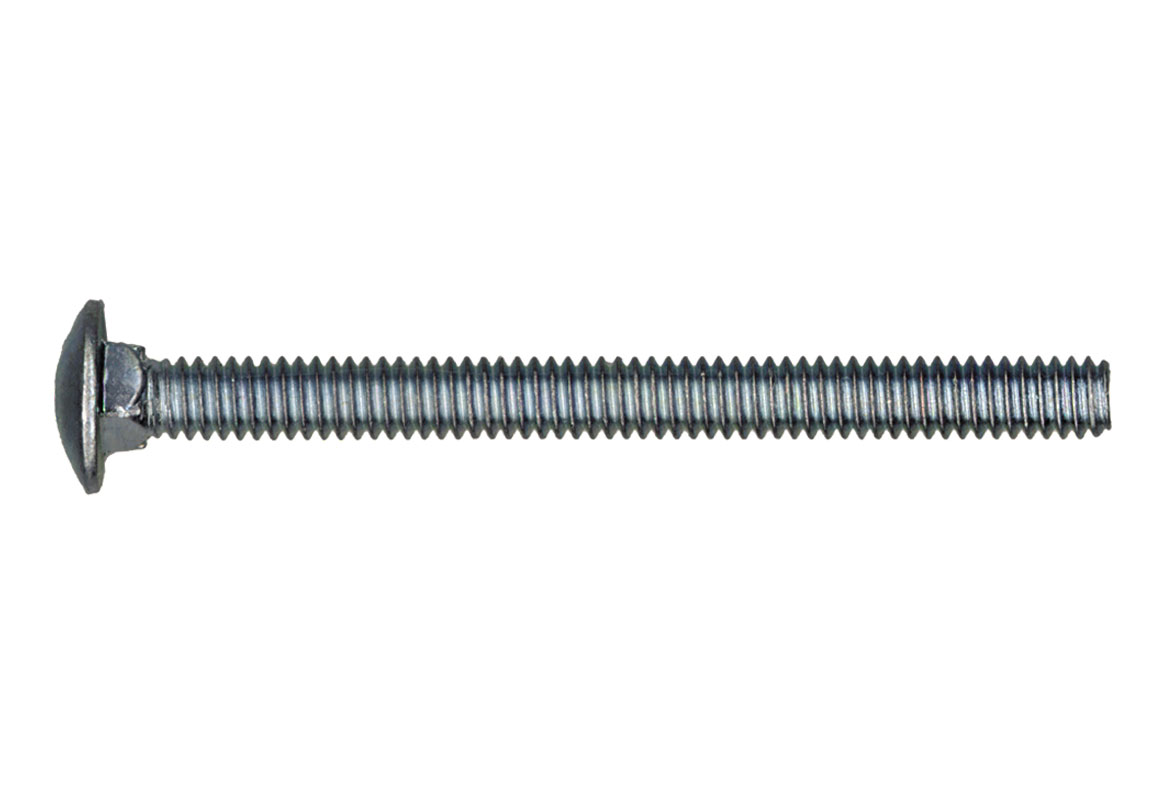

Carriage Bolt 5/16" Diameter - Grade 5 / Zinc
*SAE GRADE 5 / STEEL - FOR EXTRA STRENGTH / QUENCHED AND TEMPERED *Bright Zinc Chromate Plated. Unified Standard Class 2A Fit.
Carriage Bolt 5/16" Diameter - Grade 5 / Zinc
*SAE GRADE 5 / STEEL - FOR EXTRA STRENGTH / QUENCHED AND TEMPERED *Bright Zinc Chromate Plated. Unified Standard Class 2A Fit.
Product #: CBZ5C005024
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: DIA.: 5/16"; Length: 1-1/2"
Info:
Discontinued
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
This item is sold in multiple of 100.
Minimal order quantity for this item is 100.
Discontinued : 778-330-2602
QTY:
BUY DIRECT
Product Description
Round Head Carriage Bolt *GRADE 5
√ STEEL - FOR EXTRA STRENGTH
Length is measured under head to end
Bright Zinc Chromate Plated
SAE J429
MEDIUM CARBON STEEL
THREAD CLASS 2A FIT
ANSI/ASME B18.5
Our Carriage Bolts Meet the requirements of ANSI/ASME, ASTM and / or AISI specifications
QUENCHED AND TEMPERED
MINIMUM THREAD LENGTH
√ STEEL - FOR EXTRA STRENGTH
Length is measured under head to end
Bright Zinc Chromate Plated
SAE J429
MEDIUM CARBON STEEL
THREAD CLASS 2A FIT
ANSI/ASME B18.5
Our Carriage Bolts Meet the requirements of ANSI/ASME, ASTM and / or AISI specifications
QUENCHED AND TEMPERED
MINIMUM THREAD LENGTH
- Up to 6” long: (2D + 1/4) Twice diameter plus 1/4 inch.
- Over 6” long: (2D + 1/2) Twice diameter plus 1/2 inch.
*GRADE 2 ALSO AVAILABLE*
- U.N.C.: Acronym, Unified National Coarse. The most common thread type of the Unified Thread System (U.N.C. - U.N.F. - U.N.S. - etc.), and is the preferred thread type for general purpose inch fasteners. Because of the coarse pitch, the threads are deeper than finde threads (U.N.F.) and are easier to assemble without cross threading.
- Unified Thread System: The Unified Thread System (or Unified Thread Standard - UTS) defines a standard thread form and series - along with allowances, tolerances, and designations - for screw and bolt threads commonly used in the United States and Canada.
- Platings, Coatings & Finishes: There are a variety of coatings and platings that can be used in the prevention or delaying corrosion in fasteners. Platings and coatings can also enchance or change the physical look of nuts, bolts and washers for projects that require specific aesthetic care.
- SAE: Acronym, Society of Automotive Engineers. The SAE is a professional engineering society whose objectives are to develop and promote standards in the automotive, aerospace and commercial / heavy duty vehicle industries.
Product Specifications
| Vendor Part #: | 5005012 |
| Grade: | 5 |
| Material: | Medium Carbon Steel |
| Plating: | Zinc |
- √Wood to Wood Applications
- √in Deck Building
- √with Bare Timber
- √When a smooth finish surface is required
