Carriage Bolt 5/8" Diameter - Grade 2 / Zinc
*SAE GRADE 2 / STEEL - FOR EXTRA STRENGTH *Zinc Chromate Plated. Unified Standard Class 2A Fit.
Carriage Bolt 5/8" Diameter - Grade 2 / Zinc
*SAE GRADE 2 / STEEL - FOR EXTRA STRENGTH *Zinc Chromate Plated. Unified Standard Class 2A Fit.
Product #: CBZ010064
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: DIA.: 5/8"; Length: 4"
Info: 11 - UNC
$183.00 /EA
Login for contractor price
Regular: $183.00 /
CBZ010064 5/8", 4" 11 - UNC , InStock
$183.00 /100PC
CBZ010080 5/8", 5" 11 - UNC , InStock
$784.56 /100PC
CBZ010096 5/8", 6" 11 - UNC , InStock
$974.25 /100PC
DIA.
Length
Info
PROD #
Price
5/8"
4"
11 - UNC
CBZ010064
$183.00 /100PC
5/8"
5"
11 - UNC
CBZ010080
$784.56 /100PC
5/8"
6"
11 - UNC
CBZ010096
$974.25 /100PC
Available Online: 207
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability : 778-330-2602
QTY:
BUY DIRECT
CBZ010064 5/8", 4" 11 - UNC
$183.00 /100PC
CBZ010080 5/8", 5" 11 - UNC
$784.56 /100PC
CBZ010096 5/8", 6" 11 - UNC
$974.25 /100PC
CBZ010032 5/8", 2" 11 - UNC
Call for Availability : 778-330-2602
DIA.
Length
Info
PROD #
Price
5/8"
4"
11 - UNC
CBZ010064
$183.00 /100PC
5/8"
5"
11 - UNC
CBZ010080
$784.56 /100PC
5/8"
6"
11 - UNC
CBZ010096
$974.25 /100PC
Product Description

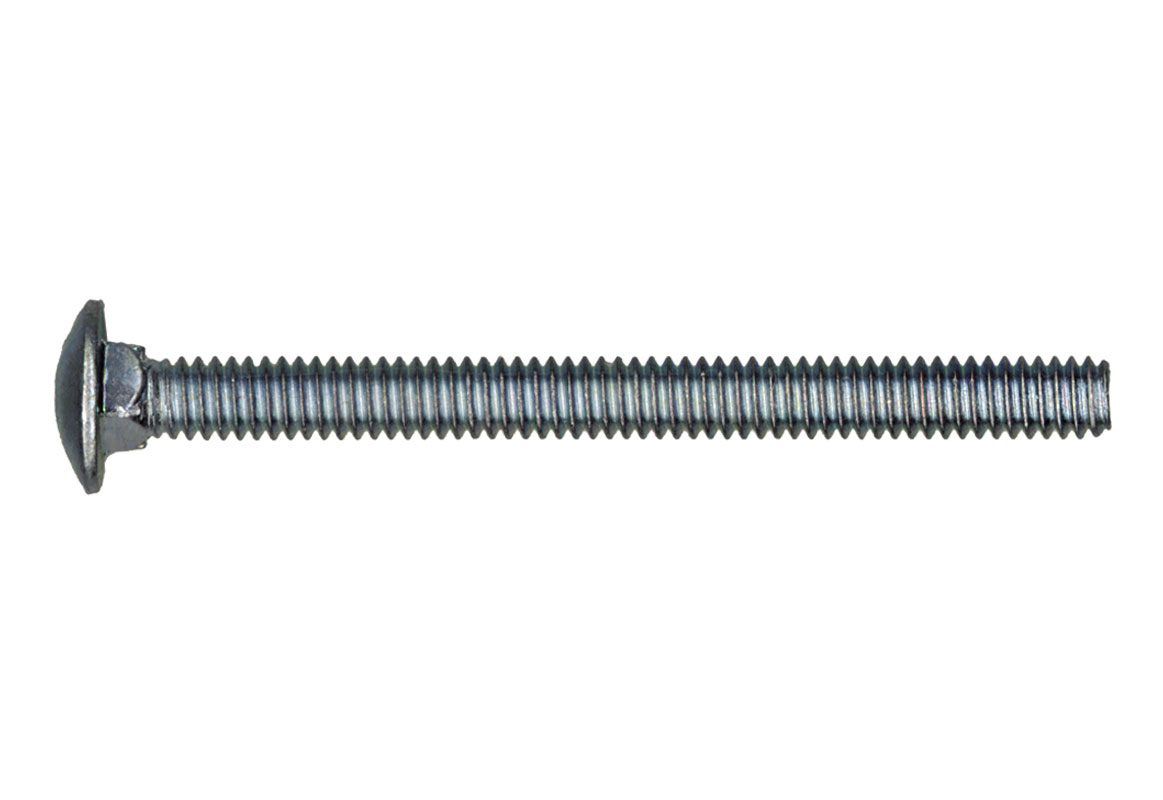

Round Head Carriage Bolt *GRADE 2
√ STEEL - FOR EXTRA STRENGTH
Length is measured under head to end
Zinc Chromate Plated
SAE J429
MEDIUM CARBON STEEL
THREAD CLASS 2A FIT
ANSI/ASME B18.5
Our Carriage Bolts Meet the requirements of ANSI/ASME, ASTM and / or AISI specifications
MINIMUM THREAD LENGTH
- Up to 6” long: (2D + 1/4) Twice diameter plus 1/4 inch.
- Over 6” long: (2D + 1/2) Twice diameter plus 1/2 inch.
*GRADE 5 ALSO AVAILABLE*
- U.N.C.: Acronym, Unified National Coarse. The most common thread type of the Unified Thread System (U.N.C. - U.N.F. - U.N.S. - etc.), and is the preferred thread type for general purpose inch fasteners. Because of the coarse pitch, the threads are deeper than finde threads (U.N.F.) and are easier to assemble without cross threading.
- Unified Thread System: The Unified Thread System (or Unified Thread Standard - UTS) defines a standard thread form and series - along with allowances, tolerances, and designations - for screw and bolt threads commonly used in the United States and Canada.
- Platings, Coatings & Finishes: There are a variety of coatings and platings that can be used in the prevention or delaying corrosion in fasteners. Platings and coatings can also enchance or change the physical look of nuts, bolts and washers for projects that require specific aesthetic care.
- SAE: Acronym, Society of Automotive Engineers. The SAE is a professional engineering society whose objectives are to develop and promote standards in the automotive, aerospace and commercial / heavy duty vehicle industries.
- Grade 2: Fasteners made from low or medium carbon steel. Commonly used in low-stress applications.
Product Specifications
| Vendor Part #: | 010032 |
| Grade: | 2 |
| Material: | Medium Carbon Steel |
| Plating: | Zinc |
- √Wood to Wood Applications
- √in Deck Building
- √with Bare Timber
- √When a smooth finish surface is required
