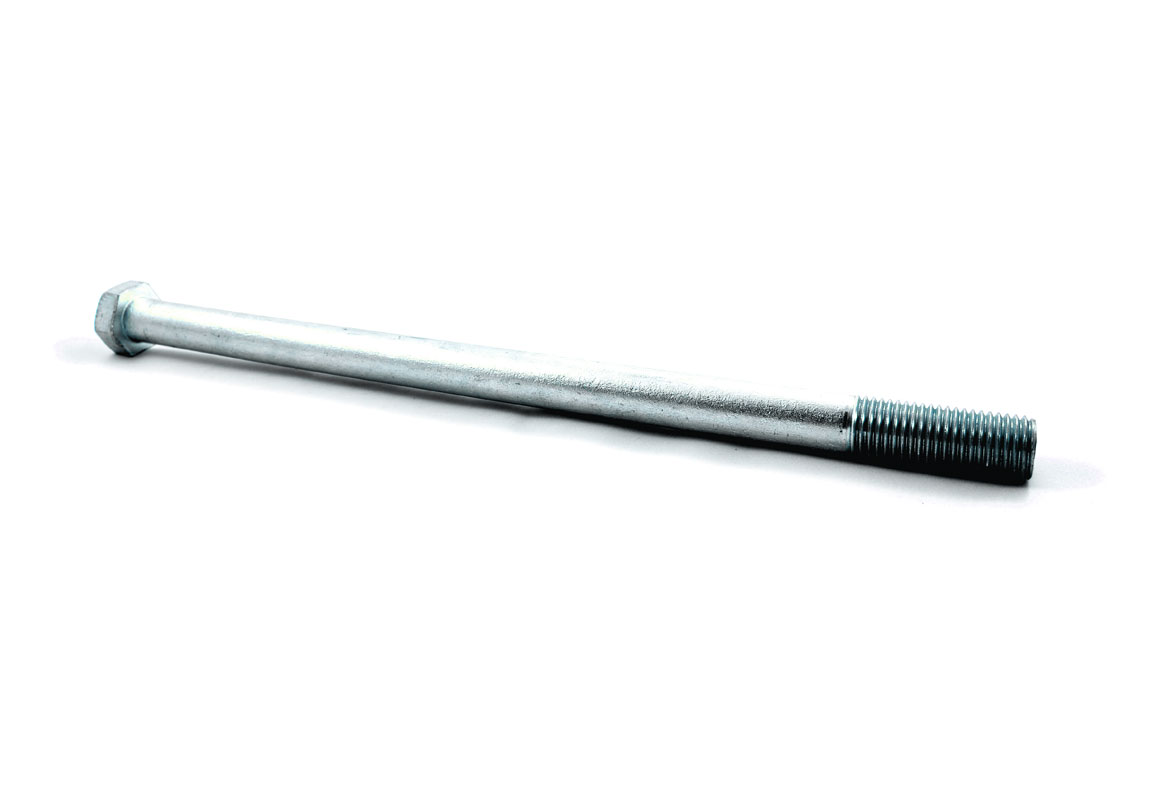

Hex Head Cap Screw 1" UNC - Grade 5 / Zinc
8 thread count / Coarse Thread *SAE GRADE 5 BOLT / STEEL - FOR EXTRA STRENGTH *Bright Zinc Chromate Plated - Made to the dimensional requirements of I.F.I. Standard Hex. For critical applications requiring greater fastener strength.
Hex Head Cap Screw 1" UNC - Grade 5 / Zinc
8 thread count / Coarse Thread *SAE GRADE 5 BOLT / STEEL - FOR EXTRA STRENGTH *Bright Zinc Chromate Plated - Made to the dimensional requirements of I.F.I. Standard Hex. For critical applications requiring greater fastener strength.
Product #: CSZ5C016040
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: DIA.: 1"; Length: 2-1/2"
Info: 8 - UNC
$273.18 /EA
Login for contractor price
Regular: $273.18 /
CSZ5C016028 1", 1-3/4" 8 - UNC , InStock
$312.00 /100PC
CSZ5C016032 1", 2" 8 - UNC , InStock
$257.55 /100PC
CSZ5C016036 1", 2-1/4" 8 - UNC , InStock
$283.60 /100PC
CSZ5C016040 1", 2-1/2" 8 - UNC , InStock
$273.18 /100PC
CSZ5C016044 1", 2-3/4" 8 - UNC , InStock
$346.50 /100PC
CSZ5C016048 1", 3" 8 - UNC , InStock
$475.00 /100PC
CSZ5C016056 1", 3-1/2" 8 - UNC , InStock
$337.00 /100PC
CSZ5C016060 1", 3-3/4" 8 - UNC , InStock
$489.00 /100PC
CSZ5C016064 1", 4" 8 - UNC , InStock
$372.00 /100PC
CSZ5C016072 1", 4-1/2" 8 - UNC , InStock
$540.00 /100PC
CSZ5C016080 1", 5" 8 - UNC , InStock
$705.00 /100PC
CSZ5C016088 1", 5-1/2" 8 - UNC , InStock
$588.00 /100PC
CSZ5C016096 1", 6" 8 - UNC , InStock
$835.00 /100PC
CSZ5C016104 1", 6-1/2" 8 - UNC , InStock
$614.16 /100PC
CSZ5C016112 1", 7" 8 - UNC , InStock
$475.00 /100PC
CSZ5C016120 1", 7-1/2" 8 - UNC , InStock
$690.99 /100PC
CSZ5C016128 1", 8" 8 - UNC , InStock
$890.35 /100PC
CSZ5C016144 1", 9" 8 - UNC , InStock
$970.00 /100PC
CSZ5C016160 1", 10" 8 - UNC , InStock
$913.20 /100PC
DIA.
Length
Info
PROD #
Price
1"
1-3/4"
8 - UNC
CSZ5C016028
$312.00 /100PC
1"
2"
8 - UNC
CSZ5C016032
$257.55 /100PC
1"
2-1/4"
8 - UNC
CSZ5C016036
$283.60 /100PC
1"
2-1/2"
8 - UNC
CSZ5C016040
$273.18 /100PC
1"
2-3/4"
8 - UNC
CSZ5C016044
$346.50 /100PC
1"
3"
8 - UNC
CSZ5C016048
$475.00 /100PC
1"
3-1/2"
8 - UNC
CSZ5C016056
$337.00 /100PC
1"
3-3/4"
8 - UNC
CSZ5C016060
$489.00 /100PC
1"
4"
8 - UNC
CSZ5C016064
$372.00 /100PC
1"
4-1/2"
8 - UNC
CSZ5C016072
$540.00 /100PC
1"
5"
8 - UNC
CSZ5C016080
$705.00 /100PC
1"
5-1/2"
8 - UNC
CSZ5C016088
$588.00 /100PC
1"
6"
8 - UNC
CSZ5C016096
$835.00 /100PC
1"
6-1/2"
8 - UNC
CSZ5C016104
$614.16 /100PC
1"
7"
8 - UNC
CSZ5C016112
$475.00 /100PC
1"
7-1/2"
8 - UNC
CSZ5C016120
$690.99 /100PC
1"
8"
8 - UNC
CSZ5C016128
$890.35 /100PC
1"
9"
8 - UNC
CSZ5C016144
$970.00 /100PC
1"
10"
8 - UNC
CSZ5C016160
$913.20 /100PC
Available Online: 63
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for availability. : 778-330-2602
QTY:
BUY DIRECT
CSZ5C016028 1", 1-3/4" 8 - UNC
$312.00 /100PC
CSZ5C016032 1", 2" 8 - UNC
$257.55 /100PC
CSZ5C016036 1", 2-1/4" 8 - UNC
$283.60 /100PC
CSZ5C016040 1", 2-1/2" 8 - UNC
$273.18 /100PC
CSZ5C016044 1", 2-3/4" 8 - UNC
$346.50 /100PC
CSZ5C016048 1", 3" 8 - UNC
$475.00 /100PC
CSZ5C016056 1", 3-1/2" 8 - UNC
$337.00 /100PC
CSZ5C016060 1", 3-3/4" 8 - UNC
$489.00 /100PC
CSZ5C016064 1", 4" 8 - UNC
$372.00 /100PC
CSZ5C016072 1", 4-1/2" 8 - UNC
$540.00 /100PC
CSZ5C016080 1", 5" 8 - UNC
$705.00 /100PC
CSZ5C016088 1", 5-1/2" 8 - UNC
$588.00 /100PC
CSZ5C016096 1", 6" 8 - UNC
$835.00 /100PC
CSZ5C016104 1", 6-1/2" 8 - UNC
$614.16 /100PC
CSZ5C016112 1", 7" 8 - UNC
$475.00 /100PC
CSZ5C016120 1", 7-1/2" 8 - UNC
$690.99 /100PC
CSZ5C016128 1", 8" 8 - UNC
$890.35 /100PC
CSZ5C016144 1", 9" 8 - UNC
$970.00 /100PC
CSZ5C016160 1", 10" 8 - UNC
$913.20 /100PC
CSZ5C016192 1", 12" 8 - UNC
Call for availability. : 778-330-2602
DIA.
Length
Info
PROD #
Price
1"
1-3/4"
8 - UNC
CSZ5C016028
$312.00 /100PC
1"
2"
8 - UNC
CSZ5C016032
$257.55 /100PC
1"
2-1/4"
8 - UNC
CSZ5C016036
$283.60 /100PC
1"
2-1/2"
8 - UNC
CSZ5C016040
$273.18 /100PC
1"
2-3/4"
8 - UNC
CSZ5C016044
$346.50 /100PC
1"
3"
8 - UNC
CSZ5C016048
$475.00 /100PC
1"
3-1/2"
8 - UNC
CSZ5C016056
$337.00 /100PC
1"
3-3/4"
8 - UNC
CSZ5C016060
$489.00 /100PC
1"
4"
8 - UNC
CSZ5C016064
$372.00 /100PC
1"
4-1/2"
8 - UNC
CSZ5C016072
$540.00 /100PC
1"
5"
8 - UNC
CSZ5C016080
$705.00 /100PC
1"
5-1/2"
8 - UNC
CSZ5C016088
$588.00 /100PC
1"
6"
8 - UNC
CSZ5C016096
$835.00 /100PC
1"
6-1/2"
8 - UNC
CSZ5C016104
$614.16 /100PC
1"
7"
8 - UNC
CSZ5C016112
$475.00 /100PC
1"
7-1/2"
8 - UNC
CSZ5C016120
$690.99 /100PC
1"
8"
8 - UNC
CSZ5C016128
$890.35 /100PC
1"
9"
8 - UNC
CSZ5C016144
$970.00 /100PC
1"
10"
8 - UNC
CSZ5C016160
$913.20 /100PC
Product Description
Hexagonal Head Cap Screws - U.N.C. *SAE GRADE 5
√ STEEL - FOR EXTRA STRENGTH
Bright Zinc Chromate Plated
C1035-1041
MEDIUM CARBON STEEL
MINIMUM TENSILE STRENGTH (PSI)
QUENCHED AND TEMPERED
√ STEEL - FOR EXTRA STRENGTH
Bright Zinc Chromate Plated
C1035-1041
MEDIUM CARBON STEEL
- Made to the dimensional requirements of I.F.I. Standard Hex.
- Cap Screws (B18.2.1, 1965)
- For critical applications requiring greater fastener strength
MINIMUM TENSILE STRENGTH (PSI)
- Up to 1” dia. inclusive 120,000 PSI
- Over 1” to 1-1/2” inclusive 105,000 PSI
QUENCHED AND TEMPERED
- MINIMUM THREAD LENGTH (Standard)
- Up to 6” long: (2D + 1/4) Twice diameter plus 1.4 inch.
- Over 6” long: (2D + 1/2) Twice diameter plus 1/2 inch.
- U.N.C.: Acronym, Unified National Coarse. The most common thread type of the Unified Thread System (U.N.C. - U.N.F. - U.N.S. - etc.), and is the preferred thread type for general purpose inch fasteners. Because of the coarse pitch, the threads are deeper than finde threads (U.N.F.) and are easier to assemble without cross threading.
- Unified Thread System: The Unified Thread System (or Unified Thread Standard - UTS) defines a standard thread form and series - along with allowances, tolerances, and designations - for screw and bolt threads commonly used in the United States and Canada.
- Platings, Coatings & Finishes: There are a variety of coatings and platings that can be used in the prevention or delaying corrosion in fasteners. Platings and coatings can also enchance or change the physical look of nuts, bolts and washers for projects that require specific aesthetic care.
Product Specifications
| Vendor Part #: | 5C016096 |
| Grade: | 5 |
| Head Type: | I.F.I. Standard Hex |
| Material: | Medium Carbon Steel |
| Plating: | Zinc |
| Tensile Strength (minimum): | [105000 psi] |
| Wrench Size: | [1-1/2 inches] |
- √Assembly into Tapped Holes
- √Manufacturing Assembly
- √Applications Requiring Greater Fastener Strength
