Name: Hex Head Cap Screw 5/8" UNC - Grade 5 / Zinc
SKU: CSZ5C010040
Price: 115.000000 CAD
Availability: InStock
Rating: 5 (1 reviews)

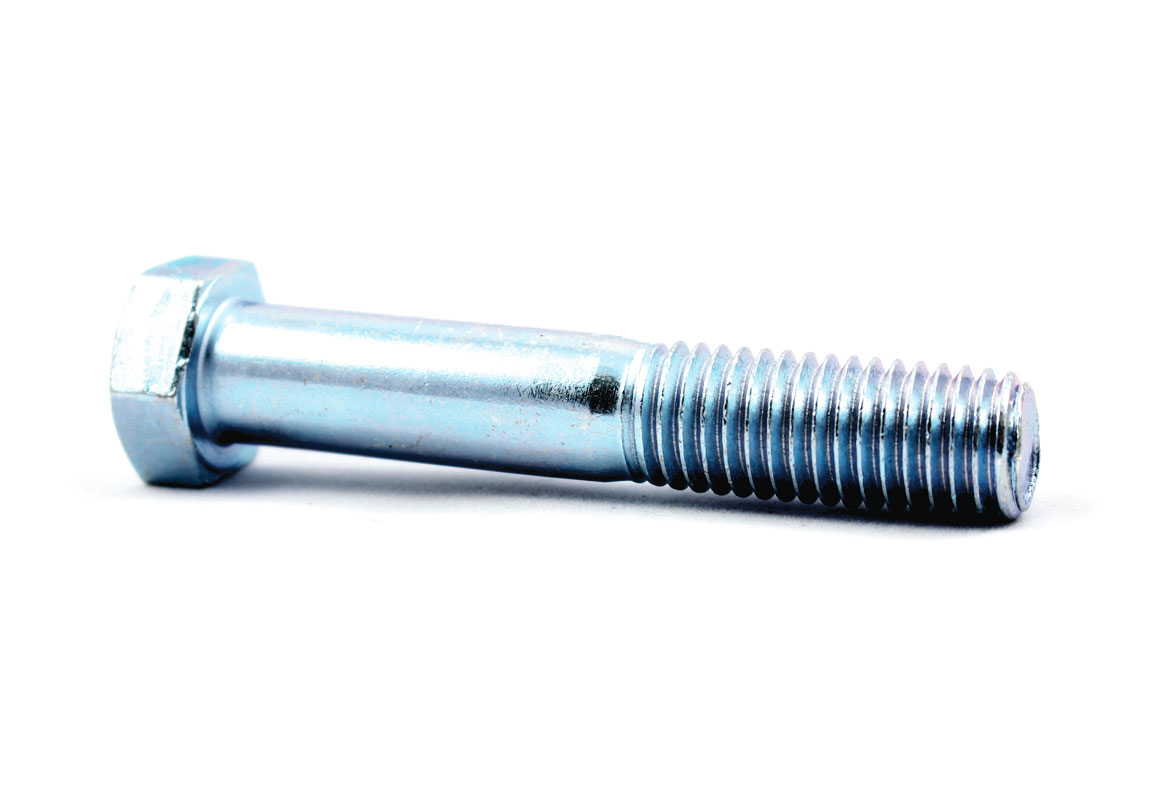

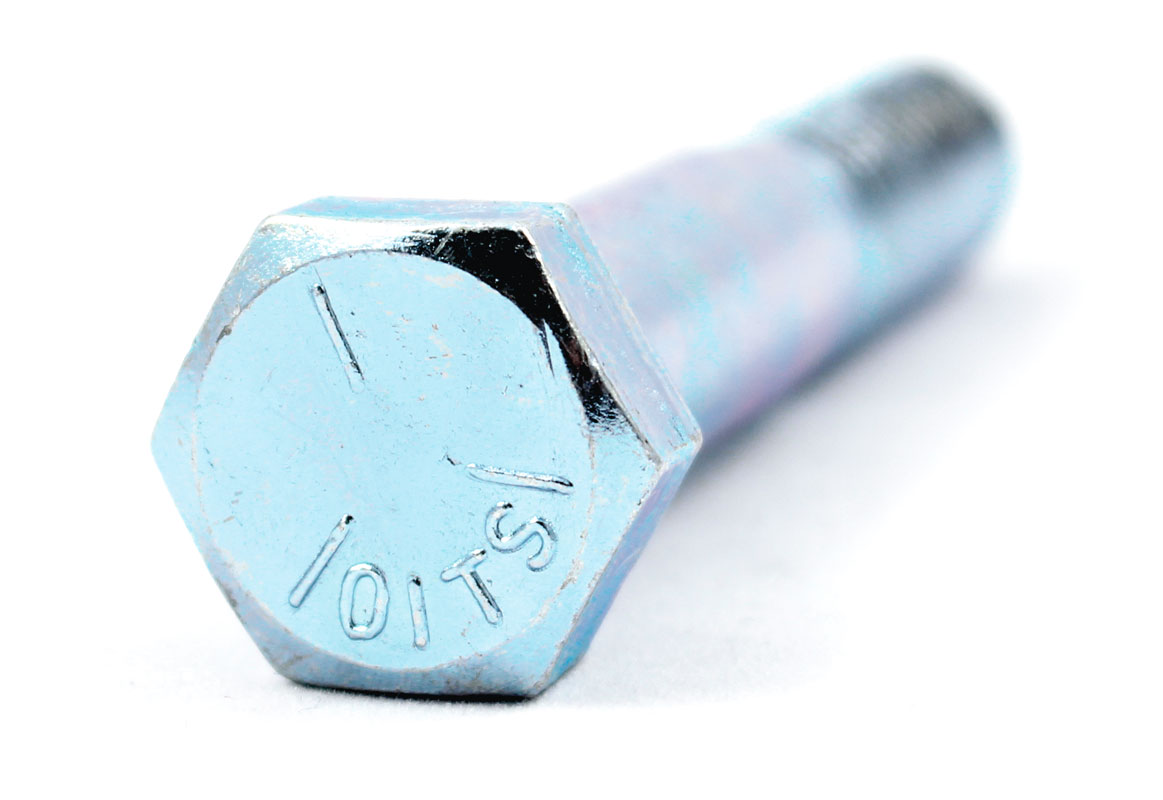

Hex Head Cap Screw 5/8" UNC - Grade 5 / Zinc

11 thread count / Coarse Thread *SAE GRADE 5 BOLT / STEEL - FOR EXTRA STRENGTH *Bright Zinc Chromate Plated - Made to the dimensional requirements of I.F.I. Standard Hex. For critical applications requiring greater fastener strength.

Hex Head Cap Screw 5/8" UNC - Grade 5 / Zinc

Product #: CSZ5C010040

Options: DIA.: 5/8"; Length: 2-1/2"

Info: 11 - UNC

$115.00 /EA

CSZ5C010016 5/8", 1" 11 - UNC , InStock

$53^.50 /100PC

CSZ5C010020 5/8", 1-1/4" 11 - UNC , InStock

$69^.00 /100PC

CSZ5C010024 5/8", 1-1/2" 11 - UNC , InStock

$80^.00 /100PC

CSZ5C010028 5/8", 1-3/4" 11 - UNC , InStock

$87^.55 /100PC

CSZ5C010032 5/8", 2" 11 - UNC , InStock

$103^.00 /100PC

CSZ5C010036 5/8", 2-1/4" 11 - UNC , InStock

$117^.00 /100PC

CSZ5C010040 5/8", 2-1/2" 11 - UNC , InStock

$115^.00 /100PC

CSZ5C010044 5/8", 2-3/4" 11 - UNC , InStock

$124^.05 /100PC

CSZ5C010048 5/8", 3" 11 - UNC , InStock

$134^.00 /100PC

CSZ5C010052 5/8", 3-1/4" 11 - UNC , InStock

$140^.00 /100PC

CSZ5C010056 5/8", 3-1/2" 11 - UNC , InStock

$160^.00 /100PC

CSZ5C010060 5/8", 3-3/4" 11 - UNC , InStock

$118^.00 /100PC

CSZ5C010064 5/8", 4" 11 - UNC , InStock

$155^.00 /100PC

CSZ5C010072 5/8", 4-1/2" 11 - UNC , InStock

$188^.00 /100PC

CSZ5C010080 5/8", 5" 11 - UNC , InStock

$216^.00 /100PC

CSZ5C010088 5/8", 5-1/2" 11 - UNC , InStock

$170^.00 /100PC

CSZ5C010096 5/8", 6" 11 - UNC , InStock

$243^.00 /100PC

CSZ5C010104 5/8", 6-1/2" 11 - UNC , InStock

$258^.00 /100PC

CSZ5C010112 5/8", 7" 11 - UNC , SoldOut

$321^.00 /100PC

CSZ5C010128 5/8", 8" 11 - UNC , InStock

$485^.00 /100PC

CSZ5C010144 5/8", 9" 11 - UNC , InStock

$368^.00 /100PC

CSZ5C010160 5/8", 10" 11 - UNC , InStock

$384^.00 /100PC

CSZ5C010192 5/8", 12" 11 - UNC , InStock

$812^.00 /100PC

DIA.

Length

Info

Qty Info

PROD #

Price

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010016

$53^.50 /100PC

5/8"

1-1/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010020

$69^.00 /100PC

5/8"

1-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010024

$80^.00 /100PC

5/8"

1-3/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010028

$87^.55 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010032

$103^.00 /100PC

5/8"

2-1/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010036

$117^.00 /100PC

5/8"

2-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010040

$115^.00 /100PC

5/8"

2-3/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010044

$124^.05 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010048

$134^.00 /100PC

5/8"

3-1/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010052

$140^.00 /100PC

5/8"

3-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010056

$160^.00 /100PC

5/8"

3-3/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010060

$118^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010064

$155^.00 /100PC

5/8"

4-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010072

$188^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010080

$216^.00 /100PC

5/8"

5-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010088

$170^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010096

$243^.00 /100PC

5/8"

6-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010104

$258^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010112

$321^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010128

$485^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010144

$368^.00 /100PC

5/8"

10"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010160

$384^.00 /100PC

5/8"

12"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010192

$812^.00 /100PC

Available Online: 626

Availability in Store:

This item is sold in multiple of 25.

Minimal order quantity for this item is 25.

QTY:

ADD TO CART

BUY DIRECT

CSZ5C010016 5/8", 1" 11 - UNC

$53^.50 /100PC

CSZ5C010020 5/8", 1-1/4" 11 - UNC

$69^.00 /100PC

CSZ5C010024 5/8", 1-1/2" 11 - UNC

$80^.00 /100PC

CSZ5C010028 5/8", 1-3/4" 11 - UNC

$87^.55 /100PC

CSZ5C010032 5/8", 2" 11 - UNC

$103^.00 /100PC

CSZ5C010036 5/8", 2-1/4" 11 - UNC

$117^.00 /100PC

CSZ5C010040 5/8", 2-1/2" 11 - UNC

$115^.00 /100PC

CSZ5C010044 5/8", 2-3/4" 11 - UNC

$124^.05 /100PC

CSZ5C010048 5/8", 3" 11 - UNC

$134^.00 /100PC

CSZ5C010052 5/8", 3-1/4" 11 - UNC

$140^.00 /100PC

CSZ5C010056 5/8", 3-1/2" 11 - UNC

$160^.00 /100PC

CSZ5C010060 5/8", 3-3/4" 11 - UNC

$118^.00 /100PC

CSZ5C010064 5/8", 4" 11 - UNC

$155^.00 /100PC

CSZ5C010072 5/8", 4-1/2" 11 - UNC

$188^.00 /100PC

CSZ5C010080 5/8", 5" 11 - UNC

$216^.00 /100PC

CSZ5C010088 5/8", 5-1/2" 11 - UNC

$170^.00 /100PC

CSZ5C010096 5/8", 6" 11 - UNC

$243^.00 /100PC

CSZ5C010104 5/8", 6-1/2" 11 - UNC

$258^.00 /100PC

CSZ5C010112 5/8", 7" 11 - UNC

$321^.00 /100PC

Call for availability. : 778-330-2602

CSZ5C010128 5/8", 8" 11 - UNC

$485^.00 /100PC

CSZ5C010144 5/8", 9" 11 - UNC

$368^.00 /100PC

CSZ5C010160 5/8", 10" 11 - UNC

$384^.00 /100PC

CSZ5C010192 5/8", 12" 11 - UNC

$812^.00 /100PC

CSZ5C010120 5/8", 7-1/2" 11 - UNC

Call for availability. : 778-330-2602

CSZ5C010136 5/8", 8-1/2" 11 - UNC

Call for availability. : 778-330-2602

DIA.

Length

Info

Qty Info

PROD #

Price

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010016

$53^.50 /100PC

5/8"

1-1/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010020

$69^.00 /100PC

5/8"

1-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010024

$80^.00 /100PC

5/8"

1-3/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010028

$87^.55 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010032

$103^.00 /100PC

5/8"

2-1/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010036

$117^.00 /100PC

5/8"

2-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010040

$115^.00 /100PC

5/8"

2-3/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010044

$124^.05 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010048

$134^.00 /100PC

5/8"

3-1/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010052

$140^.00 /100PC

5/8"

3-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010056

$160^.00 /100PC

5/8"

3-3/4"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010060

$118^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010064

$155^.00 /100PC

5/8"

4-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010072

$188^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010080

$216^.00 /100PC

5/8"

5-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010088

$170^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010096

$243^.00 /100PC

5/8"

6-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010104

$258^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010112

$321^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010128

$485^.00 /100PC

5/8"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010144

$368^.00 /100PC

5/8"

10"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010160

$384^.00 /100PC

5/8"

12"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010192

$812^.00 /100PC

5/8"

7-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010120

PLEASE CALL : 778-330-2602

5/8"

8-1/2"

11 - UNC

Sold per 25

Min Buy of 25

CSZ5C010136

PLEASE CALL : 778-330-2602

No customer reviews for the moment.

Product Description

Hexagonal Head Cap Screws - U.N.C. *SAE GRADE 5
√ STEEL - FOR EXTRA STRENGTH

Bright Zinc Chromate Plated
C1035-1041
MEDIUM CARBON STEEL

Made to the dimensional requirements of I.F.I. Standard Hex.
Cap Screws (B18.2.1, 1965)
For critical applications requiring greater fastener strength

MINIMUM TENSILE STRENGTH (PSI)

Up to 1” dia. inclusive 120,000 PSI
Over 1” to 1-1/2” inclusive 105,000 PSI

QUENCHED AND TEMPERED

MINIMUM THREAD LENGTH (Standard)
Up to 6” long: (2D + 1/4) Twice diameter plus 1.4 inch.
Over 6” long: (2D + 1/2) Twice diameter plus 1/2 inch.

U.N.C.: Acronym, Unified National Coarse. The most common thread type of the Unified Thread System (U.N.C. - U.N.F. - U.N.S. - etc.), and is the preferred thread type for general purpose inch fasteners. Because of the coarse pitch, the threads are deeper than finde threads (U.N.F.) and are easier to assemble without cross threading.
Unified Thread System: The Unified Thread System (or Unified Thread Standard - UTS) defines a standard thread form and series - along with allowances, tolerances, and designations - for screw and bolt threads commonly used in the United States and Canada.
Platings, Coatings & Finishes: There are a variety of coatings and platings that can be used in the prevention or delaying corrosion in fasteners. Platings and coatings can also enchance or change the physical look of nuts, bolts and washers for projects that require specific aesthetic care.

Product Specifications

Vendor Part #:	5C010056
Grade:	5
Head Type:	I.F.I. Standard Hex
Material:	Medium Carbon Steel
Plating:	Zinc
Tensile Strength (minimum):	[120000 psi]
Wrench Size:	[15/16 inch]

√Assembly into Tapped Holes
√Manufacturing Assembly
√Applications Requiring Greater Fastener Strength
