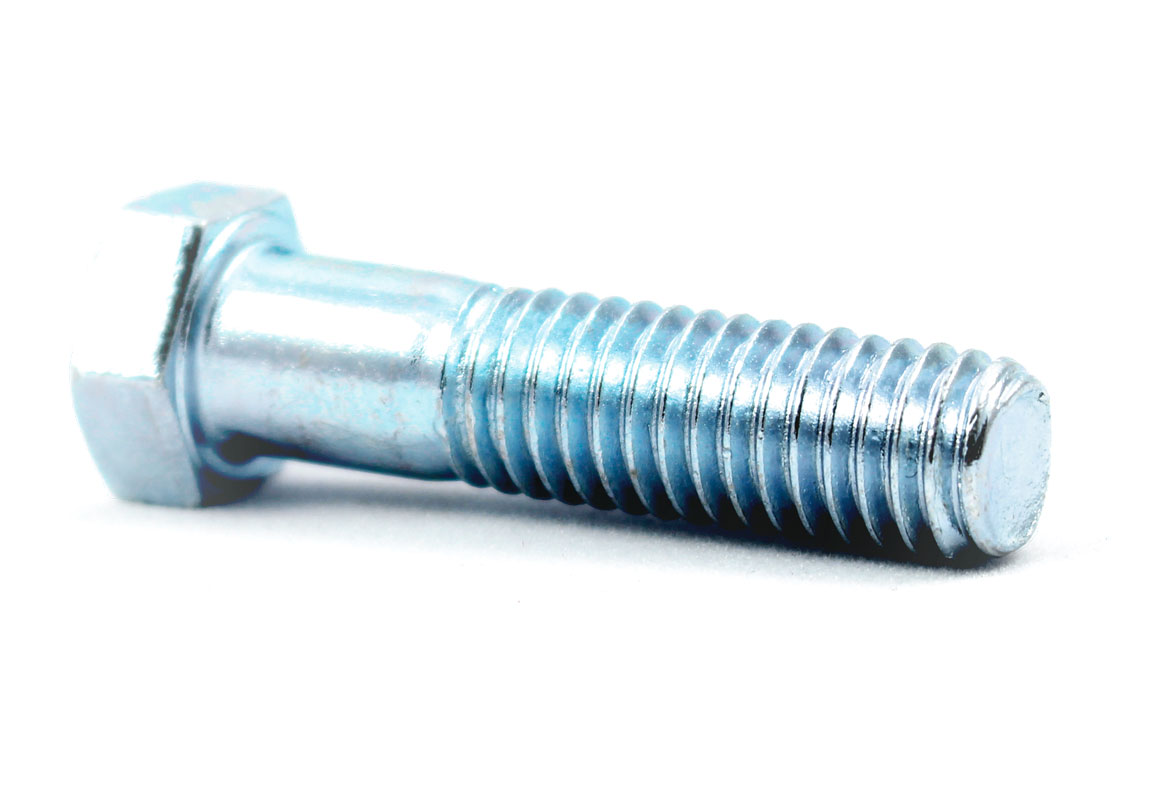

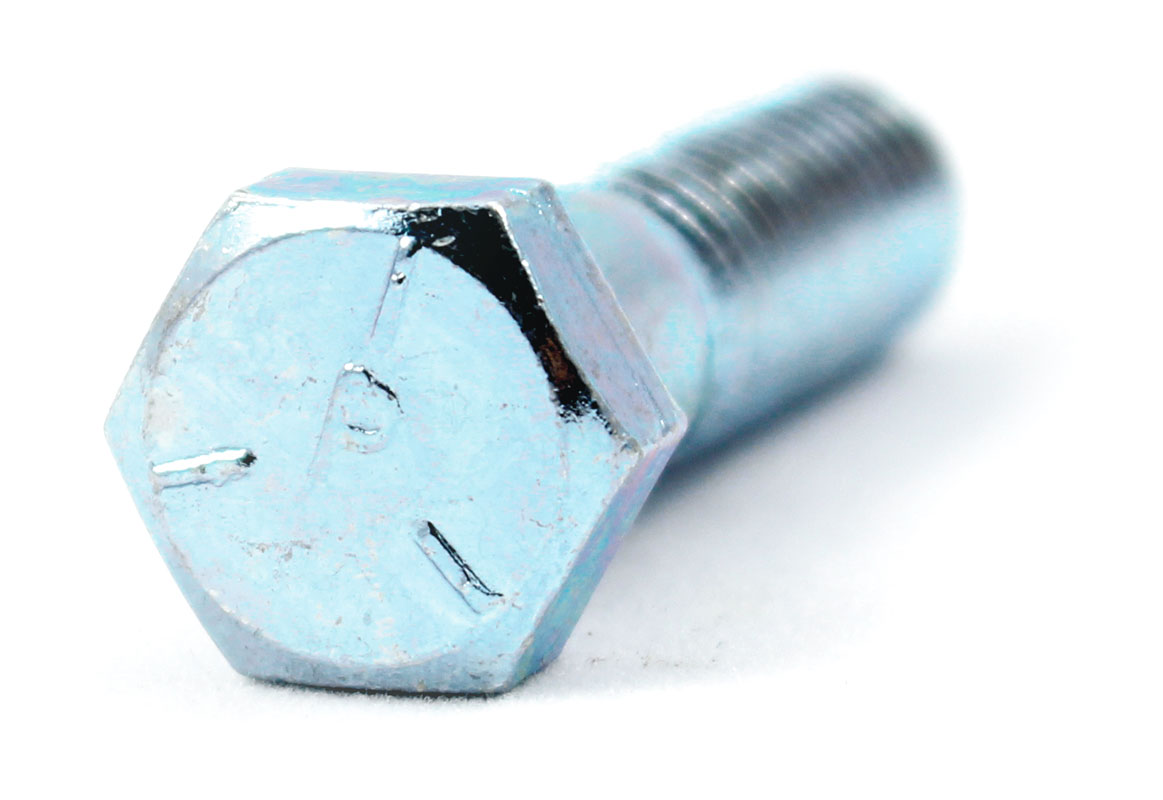

Hex Head Cap Screw 7/16" UNC - Grade 5 / Zinc
14 thread count / Coarse Thread *SAE GRADE 5 BOLT / STEEL - FOR EXTRA STRENGTH *Bright Zinc Chromate Plated - Made to the dimensional requirements of I.F.I. Standard Hex. For critical applications requiring greater fastener strength.
14 thread count / Coarse Thread *SAE GRADE 5 BOLT / STEEL - FOR EXTRA STRENGTH *Bright Zinc Chromate Plated - Made to the dimensional requirements of I.F.I. Standard Hex. For critical applications requiring greater fastener strength.
Product #: CSZ5C007024
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Options: DIA.: 7/16"; Length: 1-1/2"
Info: 14 - UNC
$45.38 /EA
Login for contractor price
Regular: $45.38 /
CSZ5C007012 7/16", 3/4" 14 - UNC , SoldOut
$33.50 /100PC
CSZ5C007016 7/16", 1" 14 - UNC , InStock
$32.28 /100PC
CSZ5C007020 7/16", 1-1/4" 14 - UNC , InStock
$22.65 /100PC
CSZ5C007024 7/16", 1-1/2" 14 - UNC , InStock
$45.38 /100PC
CSZ5C007028 7/16", 1-3/4" 14 - UNC , InStock
$46.58 /100PC
CSZ5C007032 7/16", 2" 14 - UNC , InStock
$55.00 /100PC
CSZ5C007040 7/16", 2-1/2" 14 - UNC , InStock
$29.28 /100PC
CSZ5C007048 7/16", 3" 14 - UNC , SoldOut
$49.00 /100PC
CSZ5C007064 7/16", 4" 14 - UNC , SoldOut
$77.75 /100PC
CSZ5C007072 7/16", 4-1/2" 14 - UNC , InStock
$88.00 /100PC
DIA.
Length
Info
Qty Info
PROD #
Price
7/16"
3/4"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007012
$33.50 /100PC
7/16"
1"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007016
$32.28 /100PC
7/16"
1-1/4"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007020
$22.65 /100PC
7/16"
1-1/2"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007024
$45.38 /100PC
7/16"
1-3/4"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007028
$46.58 /100PC
7/16"
2"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007032
$55.00 /100PC
7/16"
2-1/2"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007040
$29.28 /100PC
7/16"
3"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007048
$49.00 /100PC
7/16"
4"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007064
$77.75 /100PC
7/16"
4-1/2"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007072
$88.00 /100PC
Available Online: 252
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
This item is sold in multiple of 50.
Minimal order quantity for this item is 50.
Call for availability. : 778-330-2602
QTY:
BUY DIRECT
CSZ5C007012 7/16", 3/4" 14 - UNC
$33.50 /100PC
Call for availability. : 778-330-2602
CSZ5C007016 7/16", 1" 14 - UNC
$32.28 /100PC
CSZ5C007020 7/16", 1-1/4" 14 - UNC
$22.65 /100PC
CSZ5C007024 7/16", 1-1/2" 14 - UNC
$45.38 /100PC
CSZ5C007028 7/16", 1-3/4" 14 - UNC
$46.58 /100PC
CSZ5C007032 7/16", 2" 14 - UNC
$55.00 /100PC
CSZ5C007040 7/16", 2-1/2" 14 - UNC
$29.28 /100PC
CSZ5C007048 7/16", 3" 14 - UNC
$49.00 /100PC
Call for availability. : 778-330-2602
CSZ5C007064 7/16", 4" 14 - UNC
$77.75 /100PC
Call for availability. : 778-330-2602
CSZ5C007072 7/16", 4-1/2" 14 - UNC
$88.00 /100PC
CSZ5C007036 7/16", 2-1/4" 14 - UNC
Call for availability. : 778-330-2602
CSZ5C007044 7/16", 2-3/4" 14 - UNC
Call for availability. : 778-330-2602
CSZ5C007052 7/16", 3-1/4" 14 - UNC
Call for availability. : 778-330-2602
CSZ5C007056 7/16", 3-1/2" 14 - UNC
Call for availability. : 778-330-2602
CSZ5C007080 7/16", 5" 14 - UNC
Call for availability. : 778-330-2602
CSZ5C007088 7/16", 5-1/2" 14 - UNC
Call for availability. : 778-330-2602
CSZ5C007096 7/16", 6" 14 - UNC
Call for availability. : 778-330-2602
CSZ5C007104 7/16", 6-1/2" 14 - UNC
Call for availability. : 778-330-2602
DIA.
Length
Info
Qty Info
PROD #
Price
7/16"
3/4"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007012
$33.50 /100PC
7/16"
1"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007016
$32.28 /100PC
7/16"
1-1/4"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007020
$22.65 /100PC
7/16"
1-1/2"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007024
$45.38 /100PC
7/16"
1-3/4"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007028
$46.58 /100PC
7/16"
2"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007032
$55.00 /100PC
7/16"
2-1/2"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007040
$29.28 /100PC
7/16"
3"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007048
$49.00 /100PC
7/16"
4"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007064
$77.75 /100PC
7/16"
4-1/2"
14 - UNC
Sold per 50
Min Buy of 50
CSZ5C007072
$88.00 /100PC
Product Description
Hexagonal Head Cap Screws - U.N.C. *SAE GRADE 5
√ STEEL - FOR EXTRA STRENGTH
Bright Zinc Chromate Plated
C1035-1041
MEDIUM CARBON STEEL
- Made to the dimensional requirements of I.F.I. Standard Hex.
- Cap Screws (B18.2.1, 1965)
- For critical applications requiring greater fastener strength
MINIMUM TENSILE STRENGTH (PSI)
- Up to 1” dia. inclusive 120,000 PSI
- Over 1” to 1-1/2” inclusive 105,000 PSI
QUENCHED AND TEMPERED
- MINIMUM THREAD LENGTH (Standard)
- Up to 6” long: (2D + 1/4) Twice diameter plus 1.4 inch.
- Over 6” long: (2D + 1/2) Twice diameter plus 1/2 inch.
- U.N.C.: Acronym, Unified National Coarse. The most common thread type of the Unified Thread System (U.N.C. - U.N.F. - U.N.S. - etc.), and is the preferred thread type for general purpose inch fasteners. Because of the coarse pitch, the threads are deeper than finde threads (U.N.F.) and are easier to assemble without cross threading.
- Unified Thread System: The Unified Thread System (or Unified Thread Standard - UTS) defines a standard thread form and series - along with allowances, tolerances, and designations - for screw and bolt threads commonly used in the United States and Canada.
- Platings, Coatings & Finishes: There are a variety of coatings and platings that can be used in the prevention or delaying corrosion in fasteners. Platings and coatings can also enchance or change the physical look of nuts, bolts and washers for projects that require specific aesthetic care.
Product Specifications
Vendor Part #: | CSZ5C007024 |
Grade: | 5 |
Head Type: | I.F.I. Standard Hex |
Material: | Medium Carbon Steel |
Plating: | Zinc |
Tensile Strength (minimum): | [120000 psi] |
Wrench Size: | [5/8 inch] |
- √Assembly into Tapped Holes
- √Manufacturing Assembly
- √Applications Requiring Greater Fastener Strength
