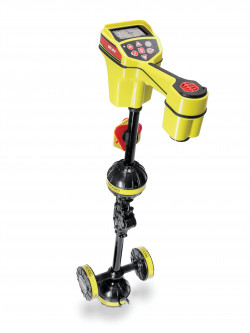

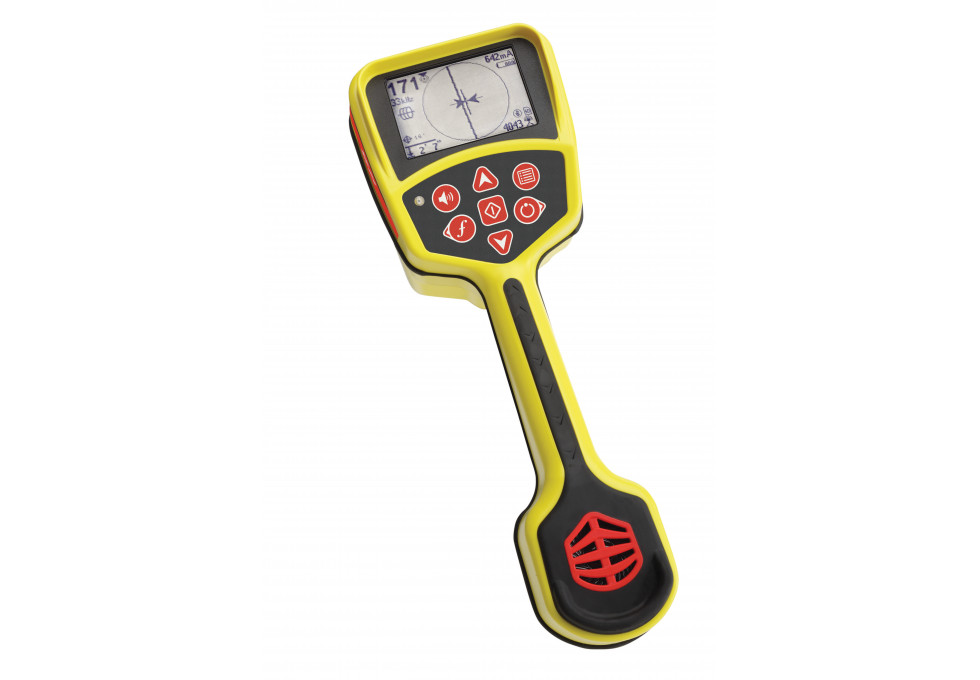

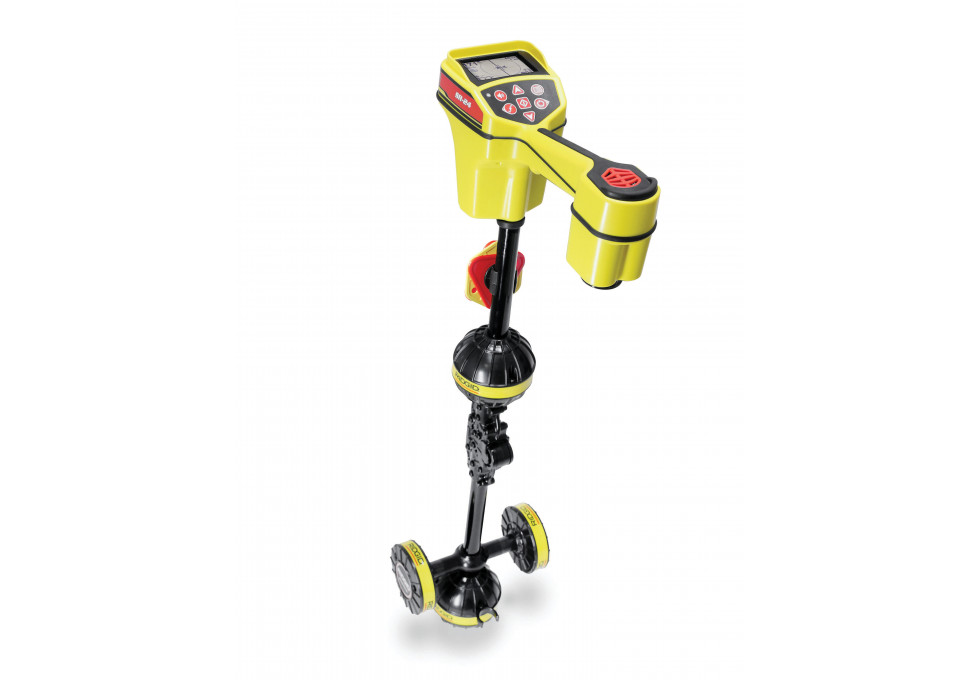

RIDGID SR-24 Line Locator with Bluetooth® and GPS
The SR-24 is a precision utility locating instrument with GPS and Bluetooth® technology for easy integration with external data capture devices.

SR-24 Line Locator with Bluetooth® and GPS


The SR-24 is a precision utility locating instrument with GPS and Bluetooth® technology for easy integration with external data capture devices.

Product #: RDG44473
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.

Pls.Call

0

/EA

$3,550.00

Available Online: 0
Pre Order Item
Estimated Availability Date:
Availability in Store:

Please Call for Special Orders : 778-330-2602


QTY:

ADD TO CART
BUY DIRECT
RIDGID®, a leading manufacturer of innovative tools for the professional trades, offers over 300 types of tools.

No customer reviews for the moment.

Product Description
The Ridgid SR-24 Line Locator with Bluetooth® and GPS. RECEIVER, SR-24 UTILITY LOCATR

Build

  • Continuously monitors for interference; audio cues and on-screen displays provide guidance to help users avoid mistakes.
  • Integrated GPS and Bluetooth® technology give a real‐time stream of data to Bluetooth-enabled devices.

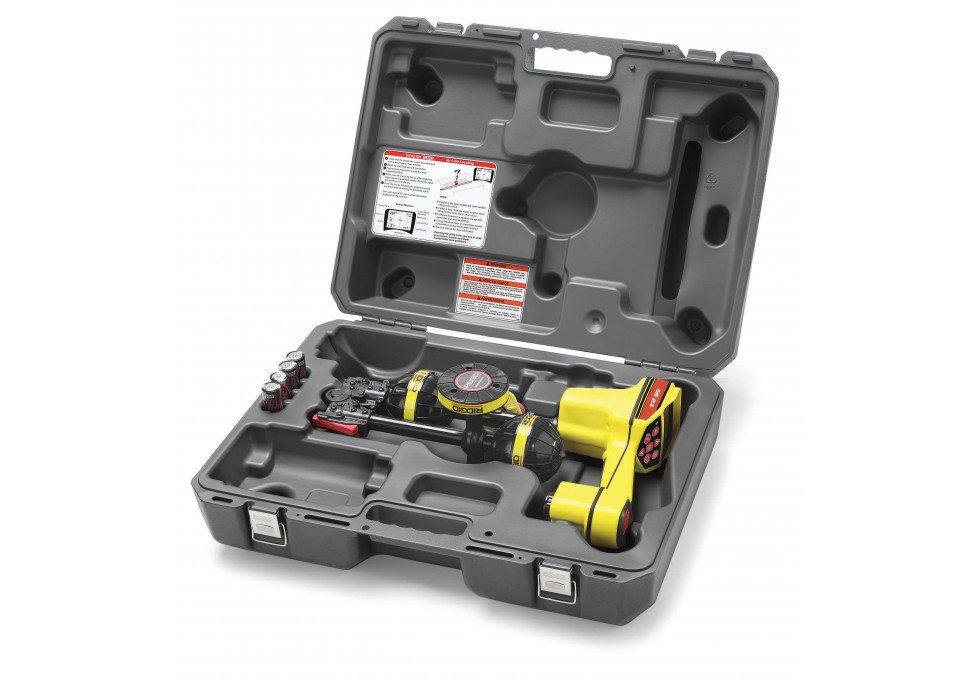

  • Included case and folding antennae mast allow for secure and easy transport and storage.
  • Shows the utility's estimated position, direction and path.
  • Captures the complete signal field for greater locating speed and accuracy.
  • Can trace any frequency from 10 Hz to 35 kHz.

Approximate Item/Package Dimensions in inches

  • Width: 9.5
  • Height: 18.5
  • Depth: 24.0

Approximate Item/Package Weight in pounds

  • Weight: 16.0
Product Specifications
Vendor Part #:44473
Weight:4 LB / 1.8 KG
Spec 1:Active Line Trace Frequencies : 128 Hz, 1 kHz, 8 kHz and 33 kHz
Spec 2:Passive Power Trace : 50 Hz, 60 Hz,
Spec 3:Passive Radio Trace : 4 kHz-15 kHz, 15 kHz-36 kHz
Spec 4:Sonde Frequencies : 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz
Spec 5:Power Source : 4 C-Cell batteries (included) or Rechargeable RIDGID® Professional 18V battery with RIDGID SeekTech® 18V Adaptor (optional)
Spec 6:Battery Life : Varies with battery rating, use and operating factors. Four size C, alkaline batteries provide approximately 10 to 15 hours. RIDGID® Professional 18V battery provides approximately 18 to 22 hours
Spec 7:Weight : 3.5 lbs. (1.6 kg)
Spec 8:Wireless Technology : Bluetooth Class 1
Spec 9:Wireless Range : 200 yards (183 meters)
Spec 10:GPS Average Accuracy : Less than 8.2’ (2.5 m)
Spec 11:Meets FCC Class A and EN 55022 Class A requirements
Spec 12: 30 user definable frequencies can be set from 10 kHz to 35 kHz
