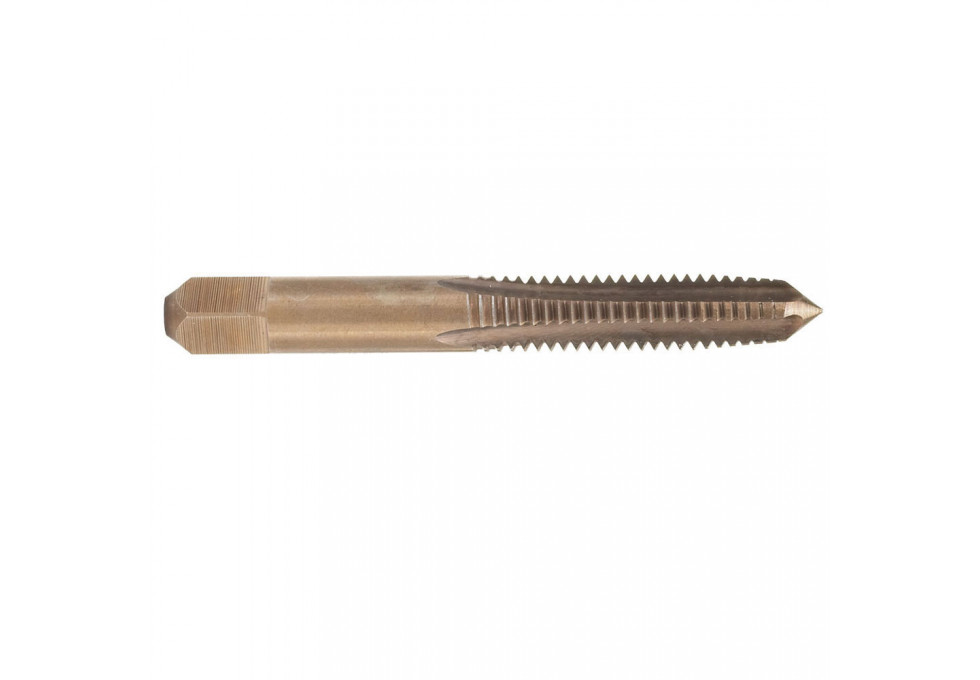

Walter SST+ HSS Hand Tap - 4.0 Taper
Made from premium quality highspeed steel with ground threads, hardened and tempered for longestlife in a variety of materials.

SST+ HSS Hand Tap - 4.0 Taper

Made from premium quality highspeed steel with ground threads, hardened and tempered for longestlife in a variety of materials.
SST+ HSS Hand Tap - 4.0 Taper

Product #: WLT03D041
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Pls.Call

0

/EA

$10.82

Available Online: 0
Pre Order Item
Estimated Availability Date:
Availability in Store:

Call for Availability : 778-330-2602

QTY:
ADD TO CART
BUY DIRECT

Walter Surface Technologies has been a leader in surface treatment technologies for more than 60 years. It provides high-productivity abrasives, power tools, tooling, chemical solutions, and environmental solutions for the metalworking industry. Founded in 1952, Walter Surface Technologies is now established in seven countries in North America, South America, and Europe.

No customer reviews for the moment.

Product Description
The Walter SST+ HSS Hand Tap - 4.0 Taper.

Features

  • Hardened and tempered for longest life
  • Precision ground threads for free cutting action
  • Premium quality HSS

Materials

  • Aluminum
  • Mild steel
  • Stainless steel

Applications

  • Cutting new threads in a variety of materials
  • Repairing damaged threads
  • Tapping blind holes
Tap Size x Pitch
Order No Taper
Min. Pkg.
List Price
   3.0 x .50   03-D 031   3   9.75
   3.5 x .60   03-D 036   3   9.75
   4.0 x .70   03-D 041   3   10.10
   5.0 x .80   03-D 051   3   10.60
   6.0 x 1.00   03-D 061   3   11.65
   8.0 x 1.25   03-D 081   3   17.10
   10.0 x 1.50   03-D 101   3   23.90
   12.0 x 1.75   03-D 121   3   28.45

Description
Tap Size x Thread per Inch
Drill size
Order No
Min. Pkg.
List Price
   Machine screw size / Taper style   4-40 NC   #43   03-A 041   3   10.85
   Machine screw size / Plug style   4-40 NC   #43   03-A 042   3   10.85
   Machine screw size / Bottoming style   4-40 NC   #43   03-A 043   3   10.85
   Machine screw size / Taper style   5-40 NC   #38   03-A 051   3   11.80
   Machine screw size / Plug style   5-40 NC   #38   03-A 052   3   11.80
   Machine screw size / Bottoming style   5-40 NC   #38   03-A 053   3   11.80
   Machine screw size / Taper style   6-32 NC   #36   03-A 061   3   8.00
   Machine screw size / Plug style   6-32 NC   #36   03-A 062   3   8.00
   Machine screw size / Bottoming style   6-32 NC   #36   03-A 063   3   8.00
   Machine screw size / Taper style   8-32 NC   #29   03-A 081   3   8.00
   Machine screw size / Plug style   8-32 NC   #29   03-A 082   3   8.00
   Machine screw size / Bottoming style   8-32 NC   #29   03-A 083   3   8.00
   Machine screw size / Taper style   10-24 NC   #25   03-A 101   3   8.95
   Machine screw size / Plug style   10-24 NC   #25   03-A 102   3   8.95
   Machine screw size / Bottoming style   10-24 NC   #25   03-A 103   3   8.95
   Machine screw size / Taper style   10-32 NF   #21   03-A 104   3   8.95
   Machine screw size / Plug style   10-32 NF   #21   03-A 105   3   8.95
   Machine screw size / Bottoming style   10-32 NF   #21   03-A 106   3   8.95
   Machine screw size / Taper style   12-24 NC   #16   03-A 121   3   9.25
   Machine screw size / Plug style   12-24 NC   #16   03-A 122   3   9.25
   Machine screw size / Bottoming style   12-24 NC   #16   03-A 123   3   9.25
   Fractional size / Taper style   1/4-20 NC   #7   03-B 041   3   9.45
   Fractional size / Plug style   1/4-20 NC   #7   03-B 042   3   9.45
   Fractional size / Bottoming style   1/4-20 NC   #7   03-B 043   3   9.45
   Fractional size / Taper style   1/4-28 NF   #3   03-B 044   3   9.45
   Fractional size / Plug style   1/4-28 NF   #3   03-B 045   3   9.45
   Fractional size / Bottoming style   1/4-28 NF   #3   03-B 046   3   9.45
   Fractional size / Taper style   5/16-18 NC   F   03-B 051   3   12.50
   Fractional size / Plug style   5/16-18 NC   F   03-B 052   3   12.50
   Fractional size / Bottoming style   5/16-18 NC   F   03-B 053   3   12.50
   Fractional size / Taper style   5/16-24 NF   17/64   03-B 054   3   12.50
   Fractional size / Plug style   5/16-24 NF   17/64   03-B 055   3   12.50
   Fractional size / Bottoming style   5/16-24 NF   17/64   03-B 056   3   12.50
   Fractional size / Taper style   3/8-16 NC   5/16   03-B 061   3   15.05
   Fractional size / Plug style   3/8-16 NC   5/16   03-B 062   3   15.05
   Fractional size / Bottoming style   3/8-16 NC   5/16   03-B 063   3   15.05
   Fractional size / Taper style   3/8-24 NF   21/64   03-B 064   3   15.05
   Fractional size / Plug style   3/8-24 NF   21/64   03-B 065   3   15.05
   Fractional size / Bottoming style   3/8-24 NF   21/64   03-B 066   3   15.05
   Fractional size / Taper style   7/16-14 NC   U   03-B 071   3   21.75
   Fractional size / Plug style   7/16-14 NC   U   03-B 072   3   21.75
   Fractional size / Bottoming style   7/16-14 NC   U   03-B 073   3   21.75
   Fractional size / Taper style   7/16-20 NF   25/64   03-B 074   3   21.75
   Fractional size / Plug style   7/16-20 NF   25/64   03-B 075   3   21.75
   Fractional size / Bottoming style   7/16-20 NF   25/64   03-B 076   3   21.75
   Fractional size / Taper style   1/2-13 NC   27/64   03-B 081   3   25.55
   Fractional size / Plug style   1/2-13 NC   27/64   03-B 082   3   25.55
   Fractional size / Bottoming style   1/2-13 NC   27/64   03-B 083   3   25.55
   Fractional size / Taper style   1/2-20 NF   29/64   03-B 084   3   25.55
   Fractional size / Plug style   1/2-20 NF   29/64   03-B 085   3   25.55
   Fractional size / Bottoming style   1/2-20 NF   29/64   03-B 086   3   25.55
   Fractional size / Taper style   9/16-12 NC   31/64   03-B 091   1   38.05
   Fractional size / Plug style   9/16-12 NC   31/64   03-B 092   1   38.05
   Fractional size / Bottoming style   9/16-12 NC   31/64   03-B 093   1   38.05
   Fractional size / Taper style   9/16-18 NF   33/64   03-B 094   1   38.05
   Fractional size / Plug style   9/16-18 NF   33/64   03-B 095   1   38.05
   Fractional size / Bottoming style   9/16-18 NF   33/64   03-B 096   1   38.05
   Fractional size / Taper style   5/8-11 NC   17/32   03-B 101   1   45.55
   Fractional size / Plug style   5/8-11 NC   17/32   03-B 102   1   45.55
   Fractional size / Bottoming style   5/8-11 NC   17/32   03-B 103   1   45.55
   Fractional size / Taper style   5/8-18 NF   37/64   03-B 104   1   45.55
   Fractional size / Plug style   5/8-18 NF   37/64   03-B 105   1   45.55
   Fractional size / Bottoming style   5/8-18 NF   37/64   03-B 106   1   45.55
   Fractional size / Taper style   3/4-10 NC   21/32   03-B 121   1   61.90
   Fractional size / Plug style   3/4-10 NC   21/32   03-B 122   1   61.90
   Fractional size / Bottoming style   3/4-10 NC   21/32   03-B 123   1   61.90
   Fractional size / Taper style   3/4-16 NF   11/16   03-B 124   1   61.90
   Fractional size / Plug style   3/4-16 NF   11/16   03-B 125   1   61.90
   Fractional size / Bottoming style   3/4-16 NF   11/16   03-B 126   1   61.90
   Fractional size / Taper style   7/8-9 NC   49/64   03-B 141   1   80.85
   Fractional size / Plug style   7/8-9 NC   49/64   03-B 142   1   80.85
   Fractional size / Bottoming style   7/8-9 NC   49/64   03-B 143   1   80.85
   Fractional size / Taper style   7/8-14 NF   13/16   03-B 144   1   80.85
   Fractional size / Plug style   7/8-14 NF   13/16   03-B 145   1   80.85
   Fractional size / Bottoming style   7/8-14 NF   13/16   03-B 146   1   80.85
   Fractional size / Taper style   1-8 NC   7/8   03-B 161   1   110.20
   Fractional size / Plug style   1-8 NC   7/8   03-B 162   1   110.20
   Fractional size / Bottoming style   1-8 NC   7/8   03-B 163   1   110.20
   Fractional size / Taper style   1-12 NF   7/8   03-B 164   1   125.00
   Fractional size / Plug style   1-12 NF   7/8   03-B 165   1   125.00
   Fractional size / Bottoming style   1-12 NF   7/8   03-B 166   1   125.00

Approximate Item/Package Dimensions in inches

  • Width: 0.985
  • Height: 0.118
  • Depth: 2.955

Approximate Item/Package Weight in pounds

  • Weight: 0.015
Product Specifications
Vendor Part #:03D041
