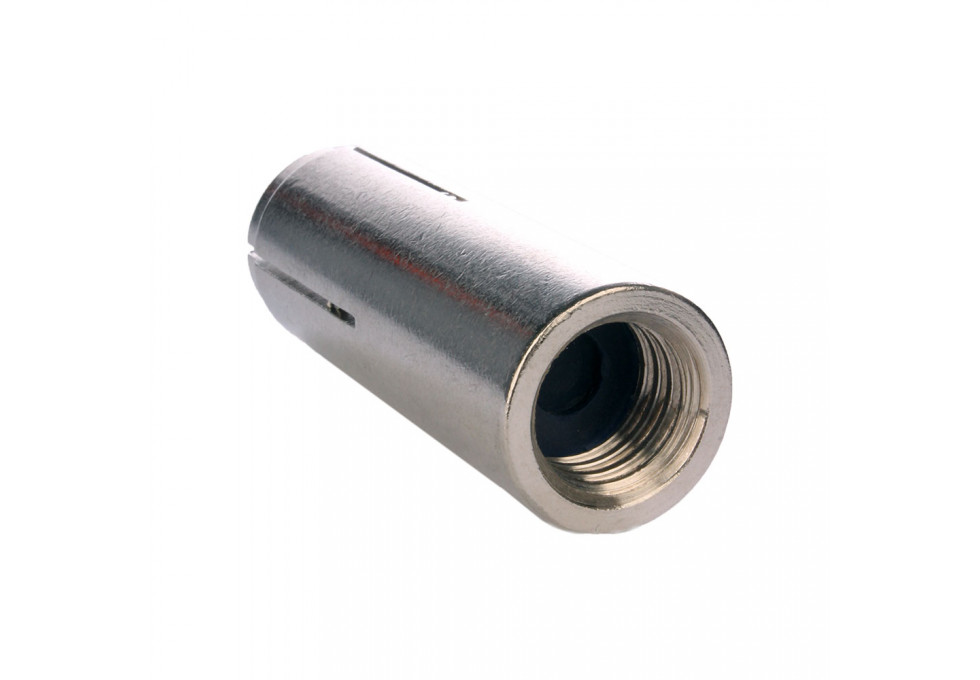

Simpson Strong-Tie Drop-In Stainless Steel 3/8 316
Internally threaded, deformation-controlled expansion anchors with a preassembled expander plug, suitable for flush mount applications in solid base materials.
Drop-In Stainless Steel 3/8 316
Internally threaded, deformation-controlled expansion anchors with a preassembled expander plug, suitable for flush mount applications in solid base materials.
Product #: SIMDIA376SS
Shipping calculation is unavailable at this time. Please call 604-532-2019 for a quote.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Call for Availability. : 778-330-2602
QTY:
BUY DIRECT
Product Description
The Simpson Strong-Tie Drop-In Stainless Steel 3/8 316.
Drop-in anchors are internally threaded, deformation-controlled expansion anchors with a preassembled expander plug, suitable for flush mount applications in solid base materials. The anchor is set by driving the expansion plug towards the bottom of the anchor using the setting tool. Drop-in anchors are also available in coilthreaded versions for 1/2" and 3/4" coil threaded rod.
- MATERIAL: Carbon and stainless steel (DIA37S and DIA50S available in zinc-plated, carbon steel only)
- FINISH: Carbon steel: Zinc plated
Specifications
| Rod Size (in) | Carbon Steel Model No. | 303 Stainless Model No. | 316 Stainless Model No. | Drill Bit Diameter (in) | Bolt Threads (per in) | Body Length (in) | Thread Length (in) | Box Qty | Ctn Qty | ||||||||||
| 1/4" | DIA25 | DIA25SS | DIA256SS | 3/8" | 20 | 1" | 3/8" | 100 | 500 | ||||||||||
| 3/8" | DIA37 | DIA37SS | DIA376SS | 1/2" | 16 | 1-1/2" | 5/8" | 50 | 250 | ||||||||||
| 1/2" | DIA50 | DIA50SS | DIA506SS | 5/8" | 13 | 2" | 3/4" | 50 | 200 | ||||||||||
| 5/8" | DIA62 | DIA62SS | N/A | 7/8" | 11 | 2-1/2" | 1" | 25 | 100 | ||||||||||
| 3/4" | DIA75 | DIA75SS | N/A | 1" | 10 | 3-1/8" | 1-1/4" | 20 | 80 |
Approximate Item/Package Dimensions in inches
- Width: 0.5
- Height: 0.5
- Depth: 1.5
Approximate Item/Package Weight in pounds
- Weight: 0.055
Product Specifications
| Vendor Part #: | DIA376SS |
