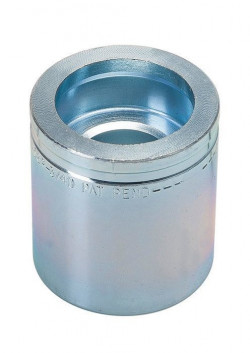

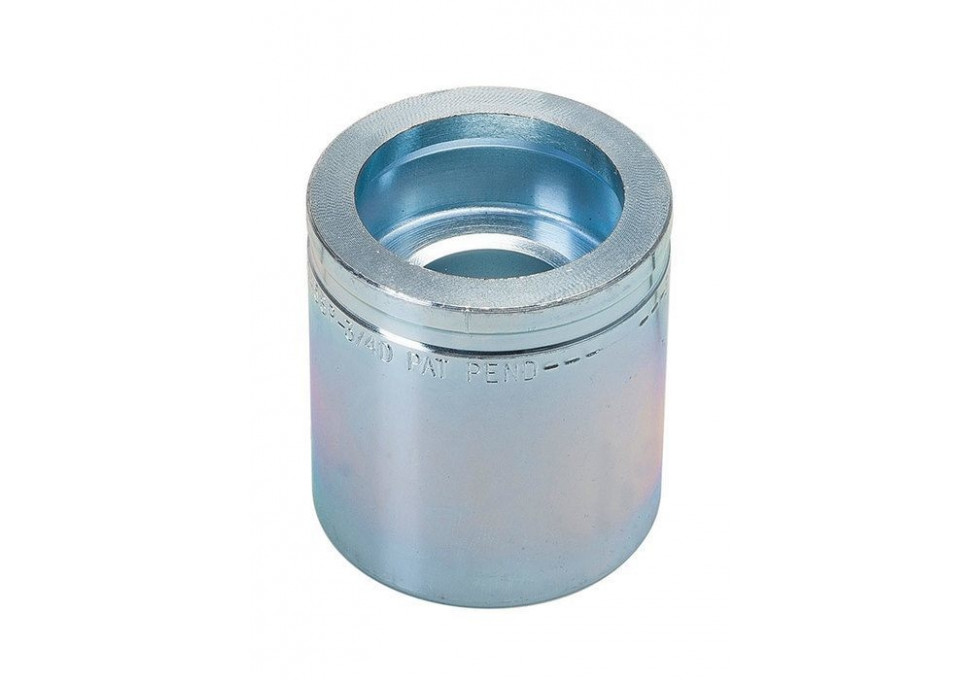

Name: Greenlee 3/4" Speed Punch®, SS Die
Brand: Greenlee
SKU: GRE01665
Availability: SoldOut
Rating: 5 (1 reviews)

3/4" Speed Punch®, SS Die

For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic.

Product #: GRE01665

Pls.Call

Call for Availability : 778-330-2602

Greenlee - a Textron Company, provides high quality tools for installing wire and cable.

No customer reviews for the moment.

Product Description

The Greenlee 3/4" Speed Punch®, SS Die. DIE,COND,SPEED,SS 3/4 (28.3MM)

Build

SPEED PUNCH® saves time and money with every hole.Up to 3X's faster setup and disassembly.No-Thread punch design eliminates cross-threading.
Available for: - Stainless Steel - 1/2" to 2" conduit sizeMild Steel - 1/2" to 4" conduit sizeMetric ISO-16 to ISO-6322mm & 30mm for Oil tight push buttons.

Product Specifications

Vendor Part #:	745SP-3/4D
Weight:	0.65 lbs. (0.30 kg)
Shape:	Round
Spec 1:	Application : For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic.
Spec 2:	Capacity Mild Steel : Max: 10 gauge (3.0 mm).
Spec 3:	Capacity Stainless Steel : Max: 10 gauge (3.0 mm).
Spec 4:	Diameter : Actual hole size: 1.115'' (28.3 MM)
Spec 5:	Draw Stud : Std. Draw Stud: 7212SP23 (3/4'' X 5.00'').
Spec 6:	Draw Studs : Alt. Draw Stud (Long): 7212SP21 (3/4'' x 5.83'') - For use with 746 Hydraulic Ram.
Spec 7:	Driver : Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L - Battery-Powered Driver up to max. 12 ga. stainless steel).
Spec 8:	Material : Carbon-Alloy Steel, Zinc Plated
Spec 9:	Minimum Pilot Hole : 7/8'' (22.2 mm)
Spec 10:	Operation : Must be used with other SPEED PUNCH&#174 System components.
Spec 11:	Sub Brand : SPEED PUNCH&#174
Spec 12:	Type : Knockout Punches
Spec 13:	Weight : 0.65 lbs. (0.30 kg)
