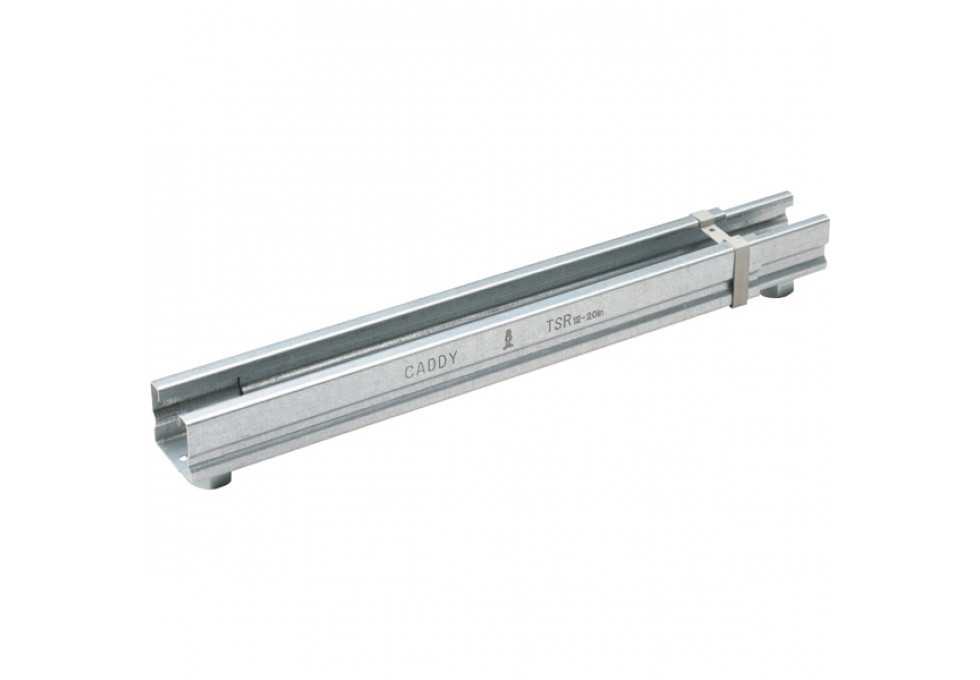

• Captive threaded nuts enable fastening to threaded rod supports without loose parts
• Telescopes to the desired length and is locked in place by snapping closed a spring retainer clip
• Standard strut profile runs the entire length of the part, allowing most standard fittings to be placed anywhere between the rods
• Integrated ruler displays space between hanger rods in inches and centimeters
• Supports up to seven 2" (50 DN) conduits, six 2" (50 DN) water filled pipes at 10" (3 m) spacing, or up to 18" (450 mm) cable tray
• Conduit can be supported on the top and bottom, eliminating the need for double sided strut
• Conduit and pipe can be placed directly on the strut profile, saving vertical space in buildings with limited room for installation
• Static Load 1 (distributed load for 12" - 20" installations and a point load for 12" - 16") - 300 lb
• Static Load 2 (point load for 16" - 20" installations) - 200 lb

Approximate Item/Package Dimensions in inches

• Width: 1.5
• Height: 1.5
• Depth: 15

Approximate Item/Package Weight in pounds

• Weight: 6
