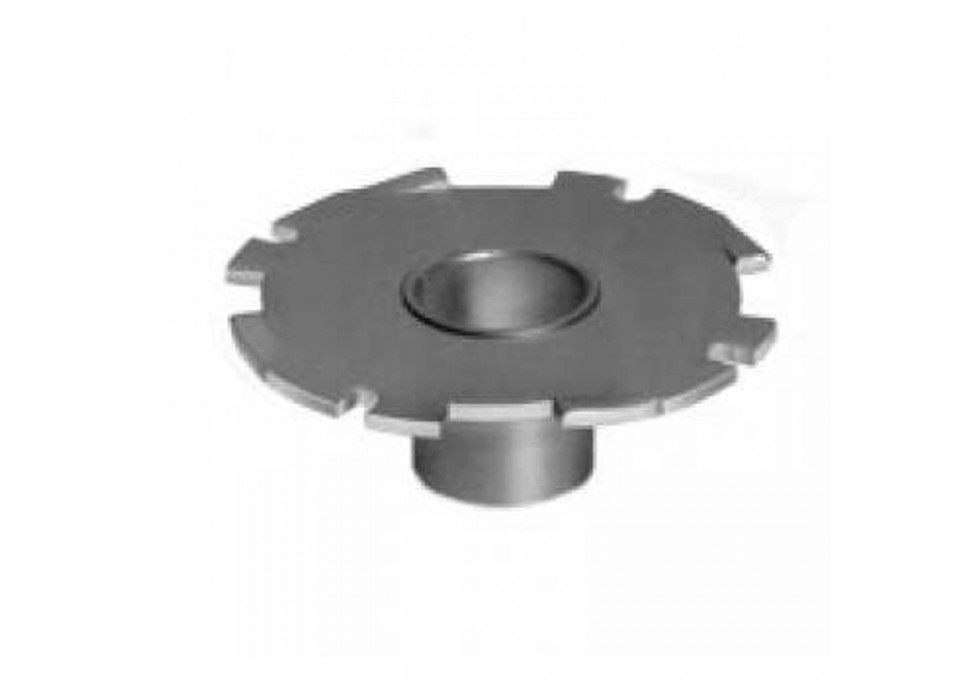

The Bosch 31/64 In. x 13/16 In. x 5/8 In. General Application Template Guide. Bosch offers a complete line of router accessories. The RA1117 templet guide is designed for use with the newer Bosch routers, models 1613EVS and 1614EVS. The guide is compatible with the optional RA1129 Template Guide Adapter Set, providing easy change of Bosch quick-release template guides and common threaded template guides; includes RA1126 Template Guide Adapter and RA1100 Interface for Threaded Template Guides (both also available in the RA1128 Template Guide Set). The guide is also for use with 1613EVS and 1614EVS routers, and/or Subbase PR009 for Palm Routers.

---

Build

• 13/16 In. outer diameter
• 5/8 In. inner diameter
• Protrusion below Subbase = approximately 31/64 In. depth
• The cut diameter of router bit used with the Templet guide must be at least 1/16 In. less than the Templet guide point's inner diameter
• Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides
• Also for use with 1613EVS and 1614EVS routers, and/or Subbase PR009 for Palm Routers

---

Approximate Item/Package Dimensions in inches

• Width: 2.05
• Height: 0.89
• Length: 2.02

Approximate Item/Package Weight in pounds

• Weight: 0.09

---

This Product Comes With

• 1 Template Guide
